Siemens RUGGEDCOM RSG907R User Manual

Installing the Device

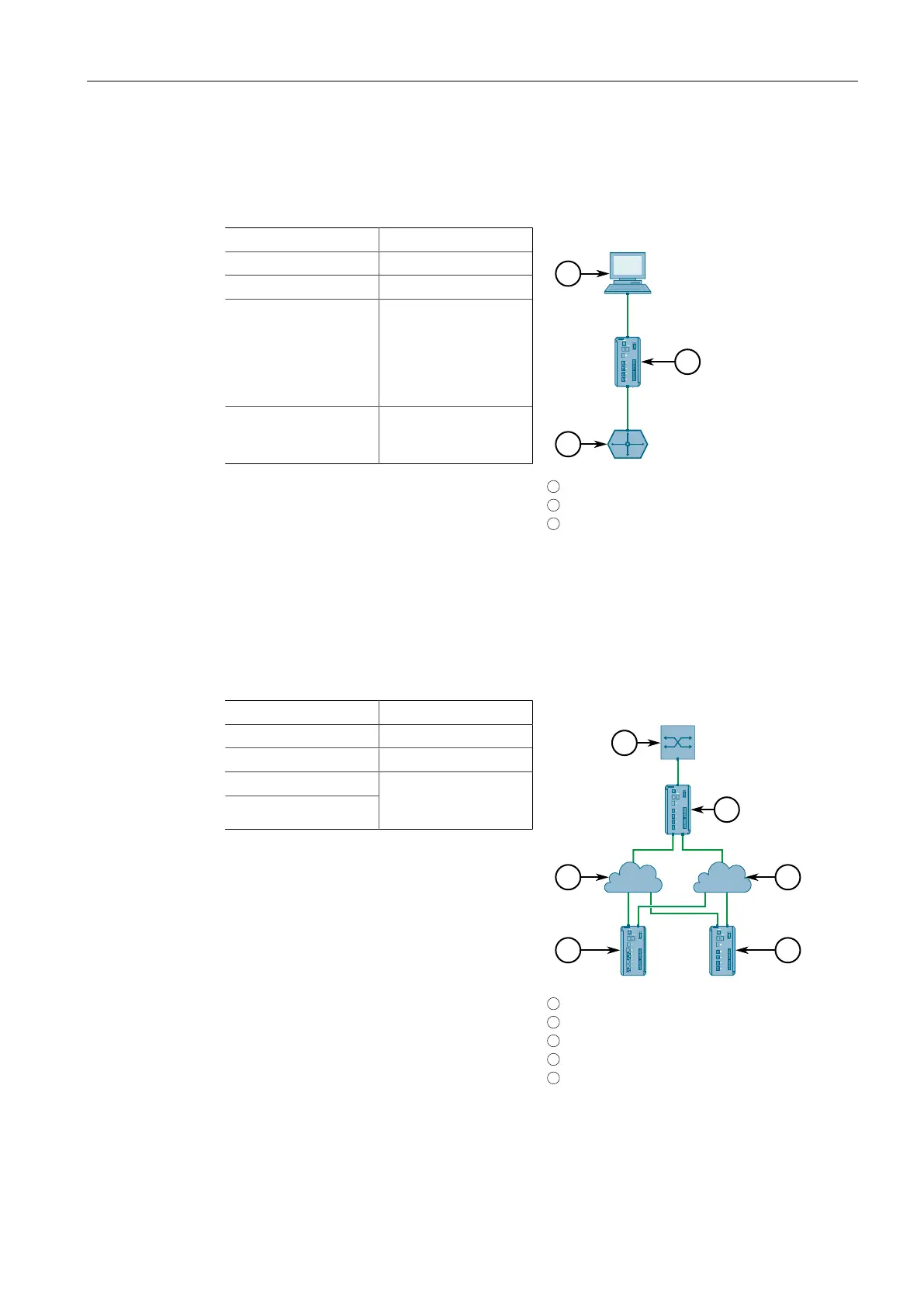

2.7Connecting the Device to the Network
Connecting to a Local Area Network
In this application, the device operates as a switch on a Local Area Network (LAN).
Connect the device as follows:
Port Connect To...
A Not used
B Not used
5 (Coupler) Connect to an
Ethernet-capable
device if the
RUGGEDCOM RSG907R
is configured as an HSR
or PRP RedBox
1 to 4 Connect to an
Ethernet-capable
device

2
1
2
1
3
1
Ethernet-Capable Device
2
Switch (RUGGEDCOM RSG907R)
3
Router
Figure2.17 LAN
Connecting to a PRP Network
In this application, the device operates as a PRP RedBox on a PRP network. Connect
the device as follows:
Port Connect To...
A Connect to LAN A
B Connect to LAN B
5 (Coupler)
1 to 4
Connect to one or
more Singly Attached
Nodes (SANs)

AB AB
B
A
AB
1
2
1
3
5
4
6
1
VDAN
2
PRP RedBox (RUGGEDCOM RSG907R)
3
LAN B
4
LAN A
5
DAN (RUGGEDCOM RSG907R
RSG909R;RSG908C;RSG910C)
20
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
