4.2Fiber Optic Ethernet Ports
4.2 Fiber Optic Ethernet Ports
The RUGGEDCOM RSG907R features four fixed Fiber optic Ethernet ports, each with
an LC (Lucent Connector) connector. Make sure the Transmit (Tx) and Receive (Rx)
connections of each port are properly connected and matched to establish a proper
link.
Port Types
21
1
Tx Connector
2
Rx Connector

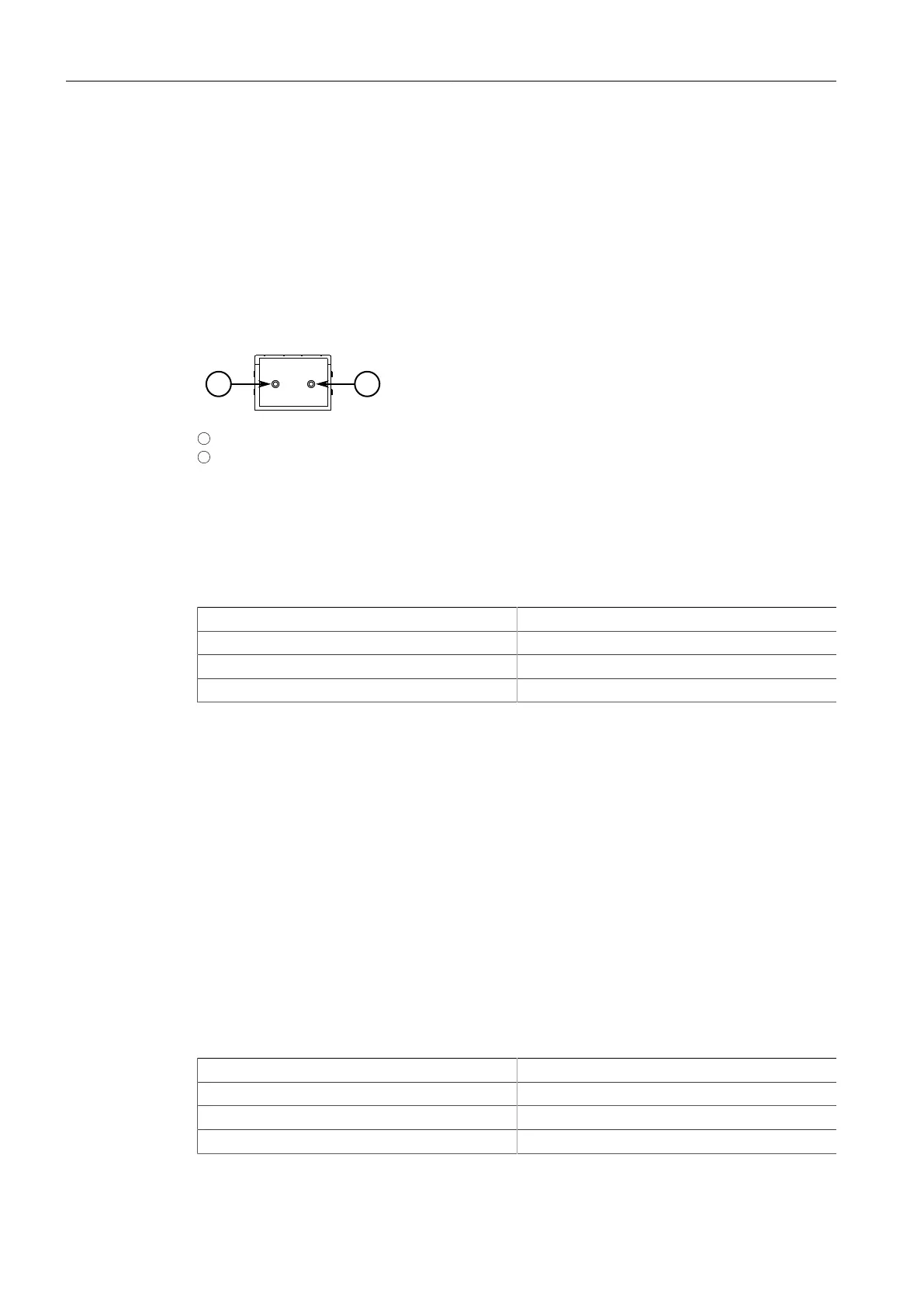

Figure4.3 LC Port
LEDs
Each port features an LED that indicates the link/activity state of the port.
State Description
Green (Solid) Link established
Green (Blinking) Link activity
Off No link detected
Specifications
For specifications on the available fiber optic Ethernet ports, refer to "Fiber Optic
Ethernet Port Specifications (Page 33)".
4.3 SFP Transceivers
The RUGGEDCOM RSG907R supports up to three Small Form-Factor Pluggable (SFP)
transceiver sockets, which are compatible with a wide array of SFP transceivers
available from Siemens.
LEDs
Each socket features an LED that indicates its link state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
29
