Installing the Device
2.4.1Mounting the Device on a DIN Rail
Mounting the Device
To mount the device to a DIN rail, do the following:
1. Hook the top teeth of the adapter onto the DIN rail.
Note
The adapter features a sliding release with a slot at the bottom for a flathead
screwdriver.
2
2
3
1
1
1
DIN Rail
2
DIN Rail Adapter

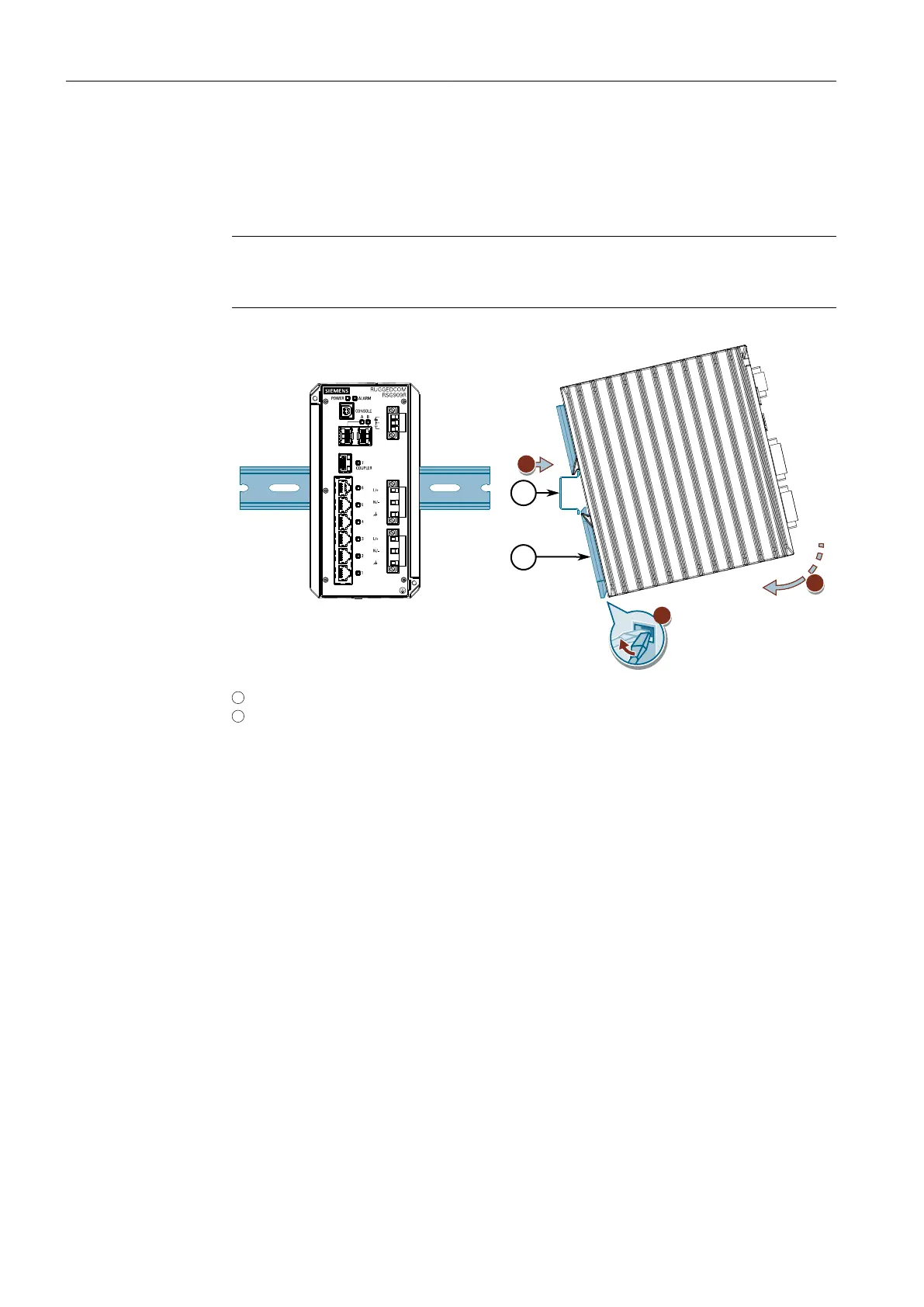

Figure2.2 Mounting the Device to a DIN Rail
2. Insert a flathead screwdriver into the slot of the sliding release and move it
down.
3. Push the device against the bottom of the DIN rail, then let go of the sliding
release to latch the device.
