Installing the Device
2.4.2Mounting the Device to a Panel
Removing the Device
To remove the device from a DIN rail, do the following:
1. Insert a flathead screwdriver into the slot of the sliding release and move it
down.
3
2
1
2
1
1
DIN Rail
2
DIN Rail Adapter

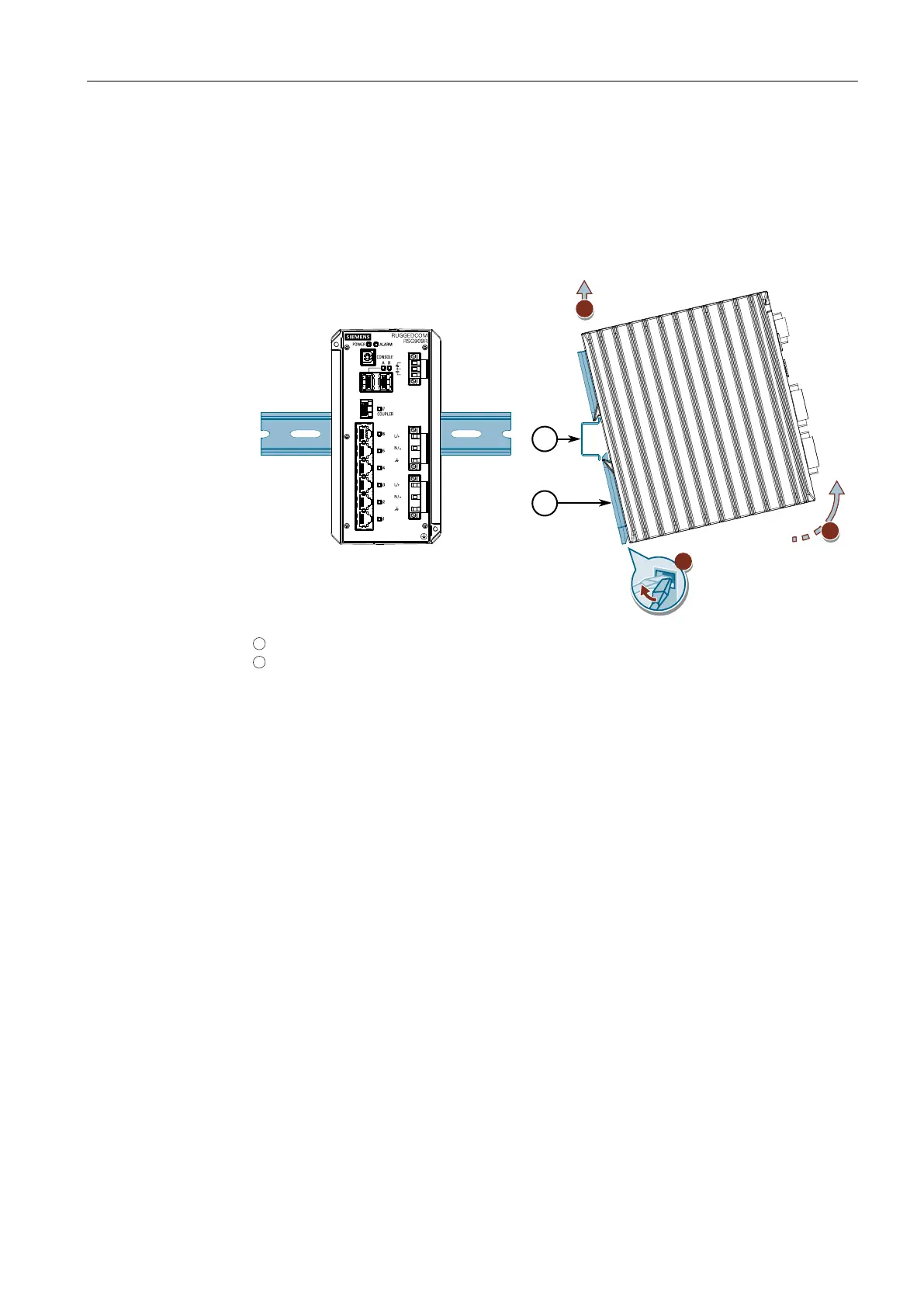

Figure2.3 Removing the Device from a DIN Rail
2. Swing the bottom of the device away from the DIN rail.
3. Lift the device off the DIN rail.
2.4.2 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RSG909R can be equipped with panel
adapters on the top and bottom of the chassis. The adapters allow the device to be
attached to a panel using screws.
