Installing the Device
2.6.2Wiring Examples
HI Power Supply Configurations

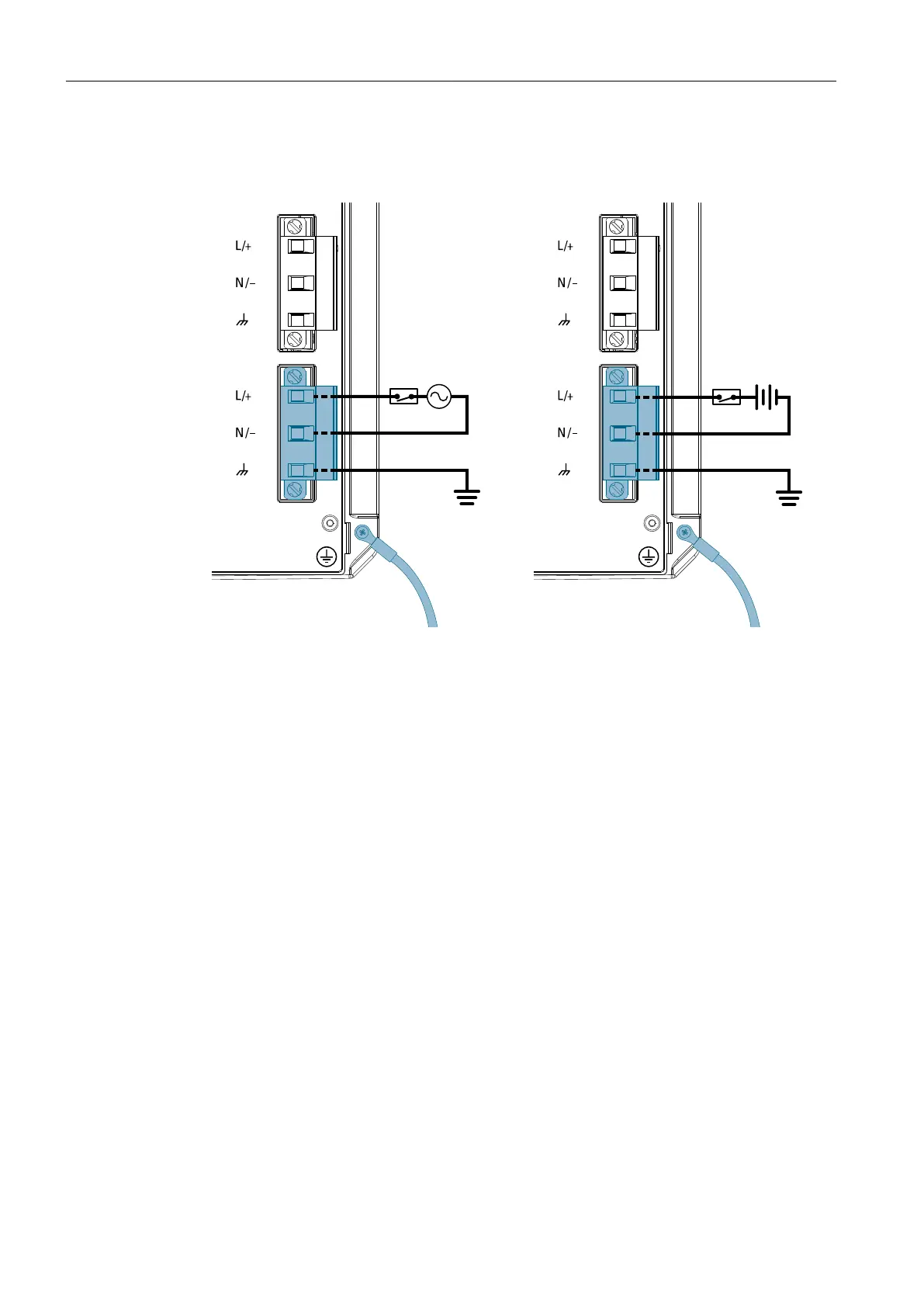

Figure2.11 Single HI AC Power Input
Configuration
+
-
Figure2.12 Single HI DC Power Input
Configuration
RUGGEDCOM RSG909R
Installation Manual, 04/2021, C79000-G8976-1388-13
17
