Technical Specifications
5.7Dimension Drawings
185.44
163.12
210.9
38.1
225.44
90

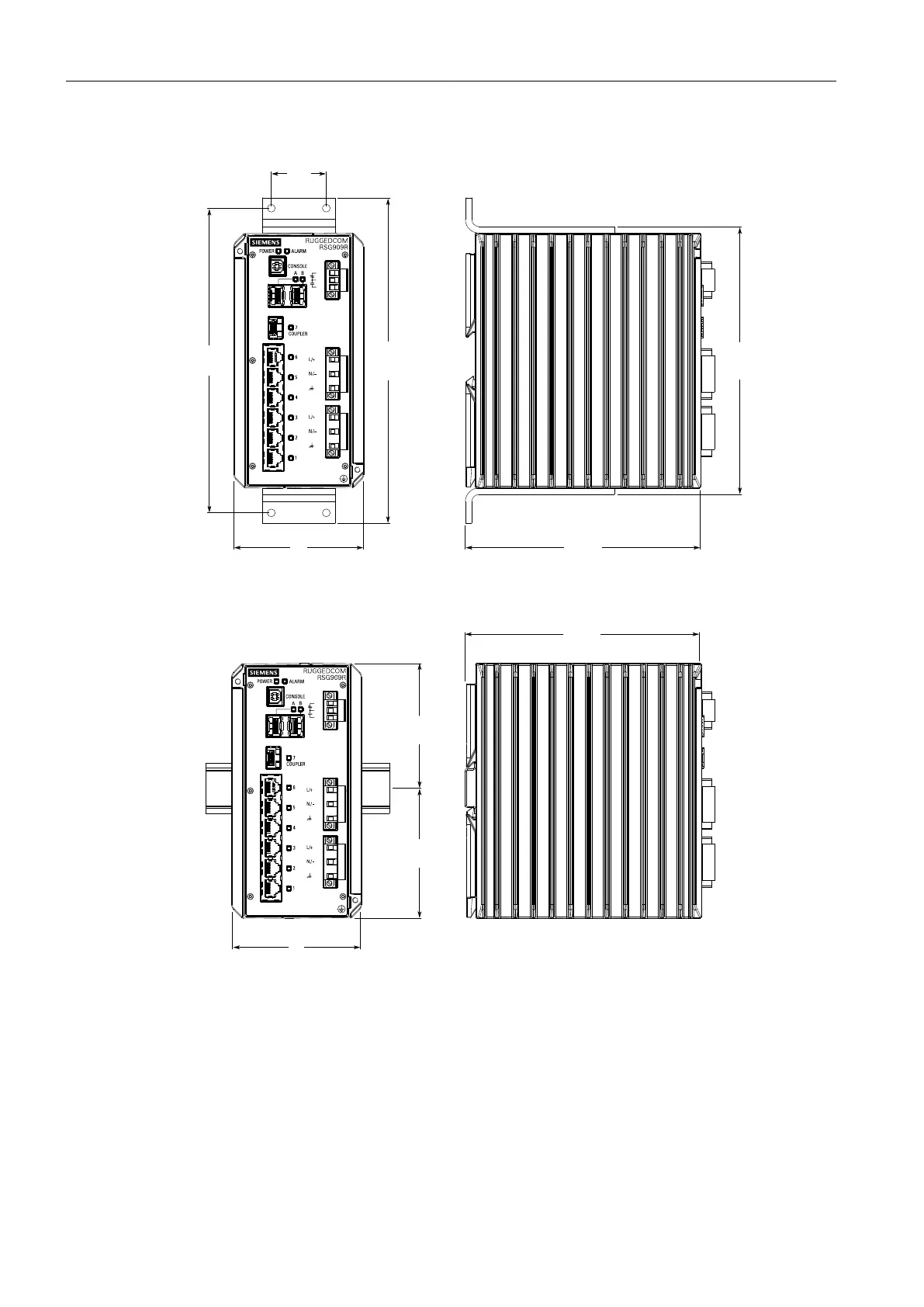

Figure5.2 Panel Mount Dimensions
86.41
90
90.11
162.72
Figure5.3 DIN Rail Mount Dimensions
