RUGGEDCOM RX1500
Installation Guide
Chapter 3
Communication Ports
Copper Ethernet Ports 21

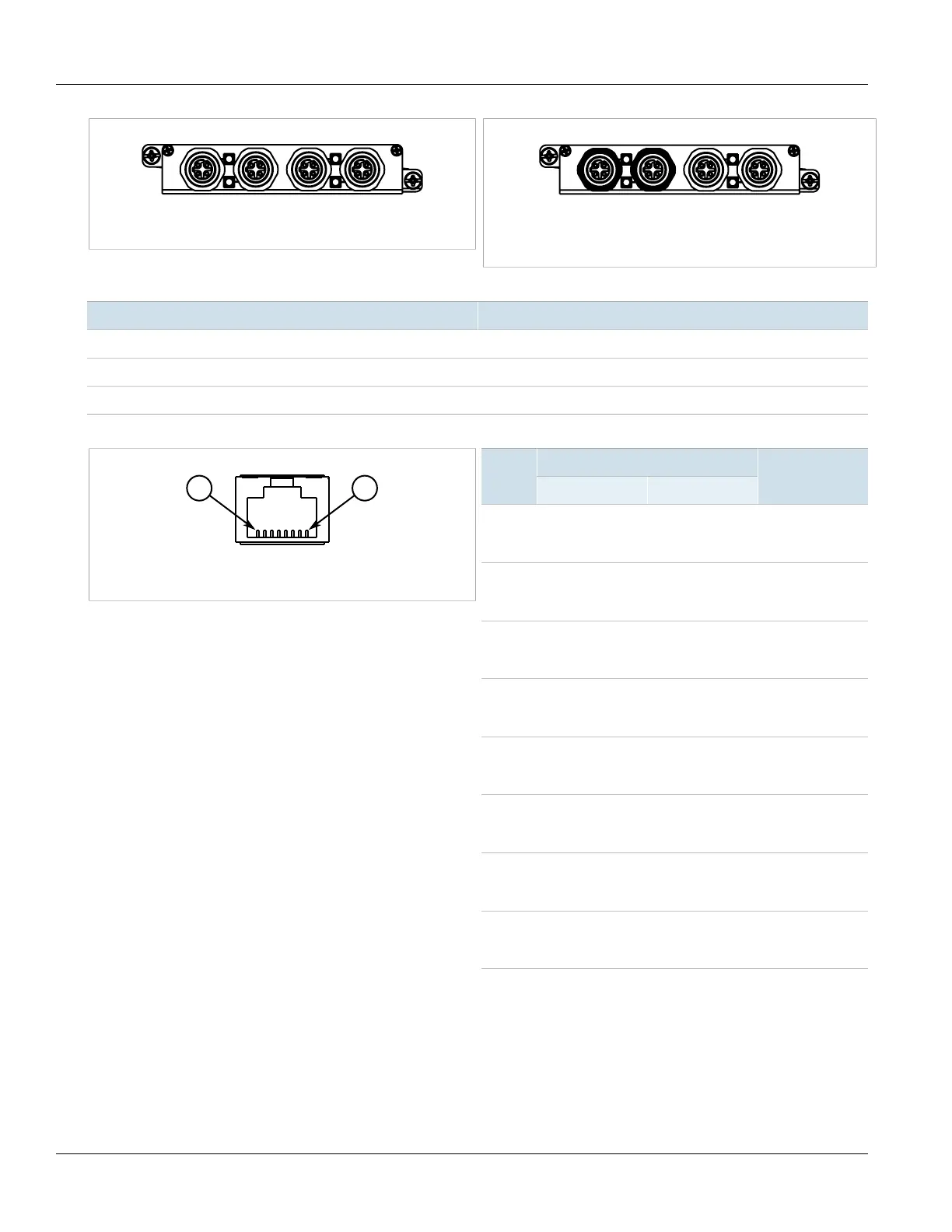

Figure 23: 4 x 4-Pin 10/100TX M12 D-Coded Ports
Figure 24: 4 x 4-Pin 10/100TX with M12 D-Coded Bypass
and Non-Bypass Ports
Each port features an LED that indicates the state of the port.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
The following are the pin-out descriptions for the RJ-45 and M12 connectors:
18
Figure 25: RJ-45 Ethernet Port Pin Configuration
Name
Pin
10/100Base-TX 1000Base-TX
Description
1 RX+ BI_DA+ Receive Data+
or Bi-Directional
Pair A+
2 RX- BI_DA- Receive Data-
or Bi-Directional
Pair A-
3 TX+ BI_DB+ Transmit Data+
or Bi-Directional
Pair B+
4 Reserved (Do
Not Connect)
BI_DC+ Transmit Data+
or Bi-Directional
Pair C+
5 Reserved (Do
Not Connect)
BI_DC- Receive Data-
or Bi-Directional
Pair C-
6 TX- BI_DB- Transmit Data-
or Bi-Directional
Pair B-
7 Reserved (Do
Not Connect)
BI_DD+ Receive Data-
or Bi-Directional
Pair D+
8 Reserved (Do
Not Connect)
BI_DD- Receive Data-
or Bi-Directional
Pair D-
