Siemens RUGGEDCOM WIN5123 Installation Guide

RUGGEDCOM WIN5214
Installation Guide
Chapter 2
Installing the Subscriber Unit
Assembling the PoE Connector 17
• The RJ45 connector kit (included). Contains an RJ45 connector and loading bar.
• CAT-5e cable of suitable length for your application. For information on cable specifications, refer to
Section4.5, “IDU to ODU Cable Specifications”.
• Standard cable splicing tools, including a standard crimp tool.
To assemble the PoE connector, do the following:
1. Slide the connector components on to the wire.
1
2

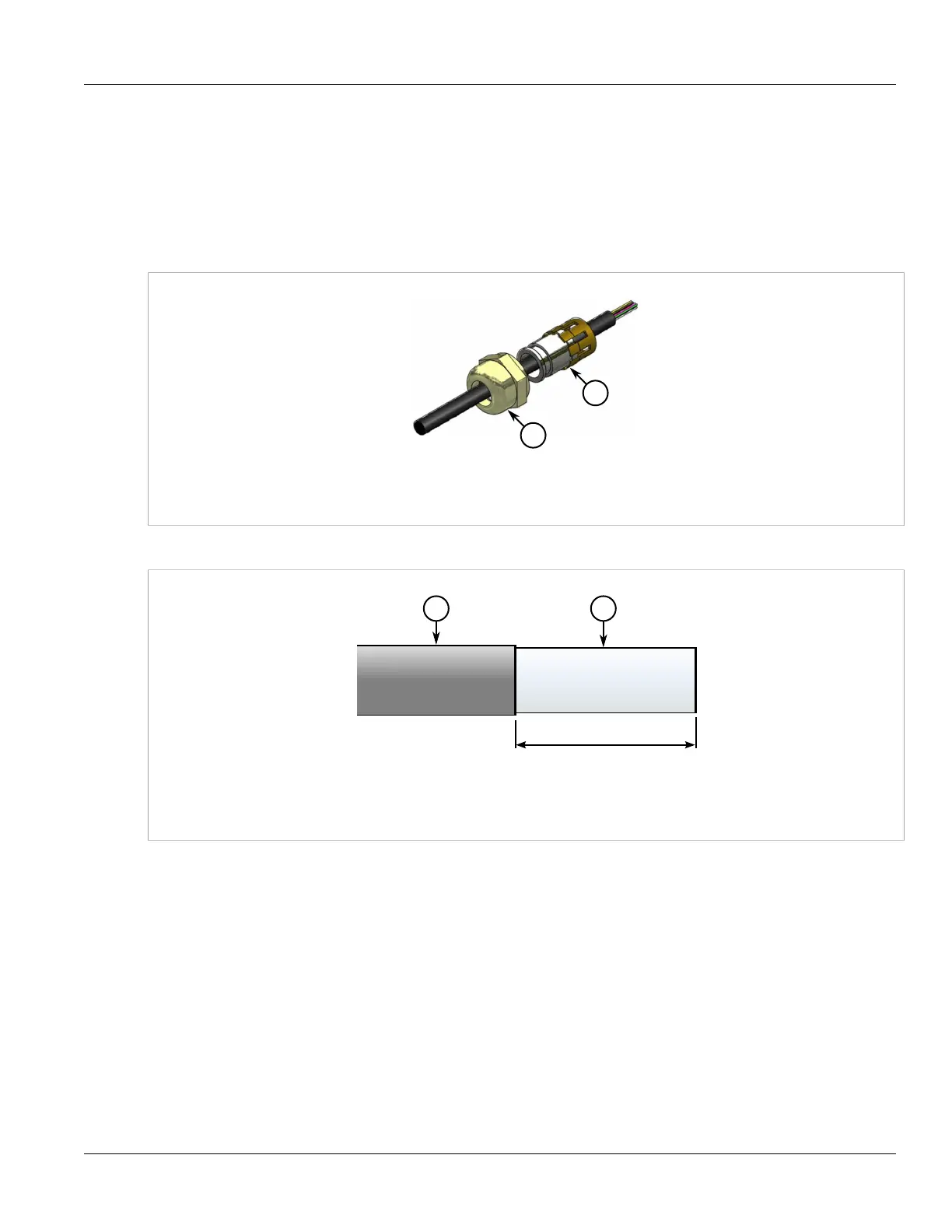

Figure8:Assembling the Connector Components
1.Plug Housing 2.Dust Cover
2. Strip the wire jacket 38 mm (1.5 in) from the tip, making sure not to cut the foil or drain wire.
38 mm
(1.5 in)
1 2
Figure9:Cutting the Jacket
1.Wire Jacket 2.Foil
3. Fold the foil back over the wire jacket.
