Siemens RUGGEDCOM WIN5123 Installation Guide

Chapter 2
Installing the Subscriber Unit
RUGGEDCOM WIN5214
Installation Guide
18 Assembling the PoE Connector
1
2
3

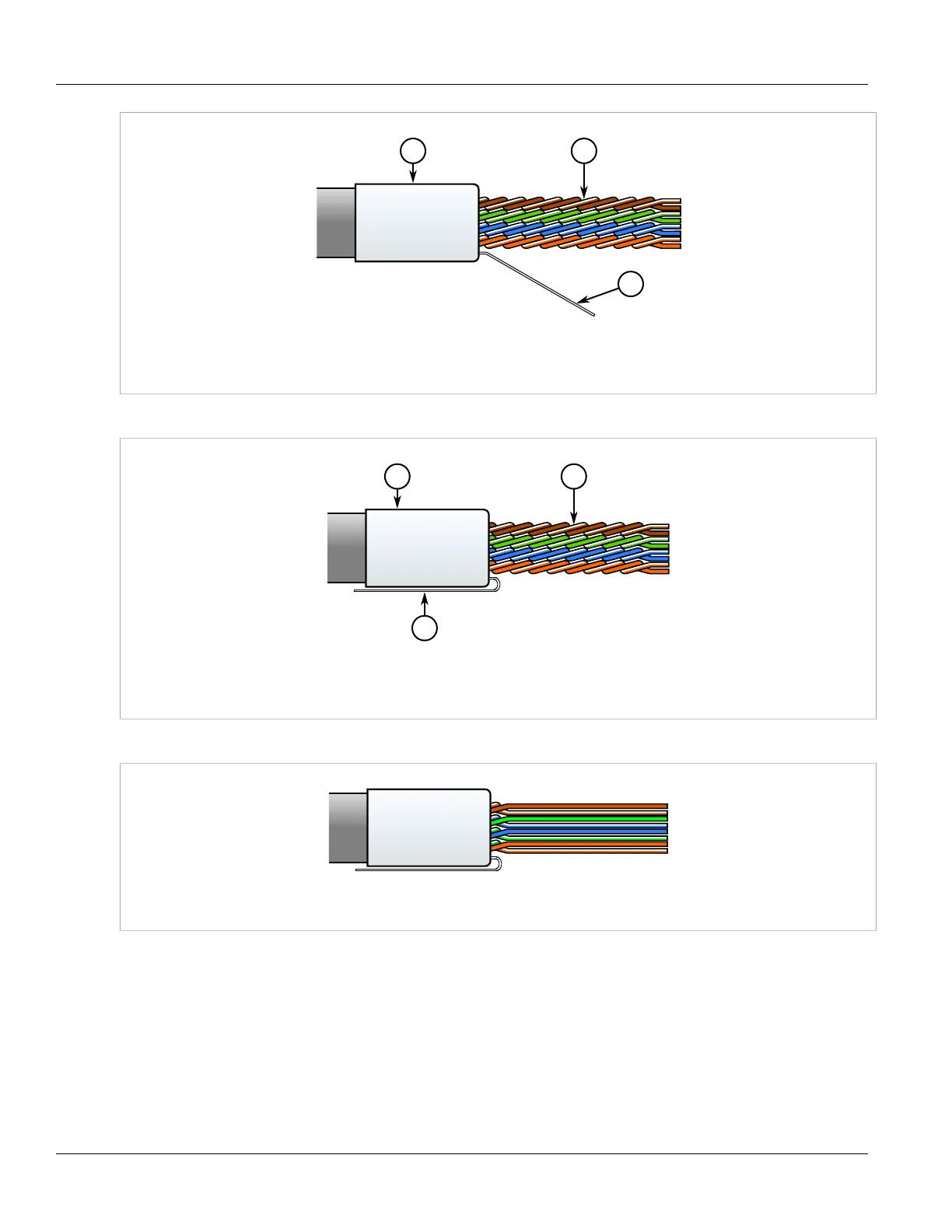

Figure10:Folding Back the Foil
1.Foil 2.Twisted-Pair Wires 3.Drain Wire
4. Bend the drain wire back over the jacket.
3
1
2
Figure11:Bending the Drain Wire
1.Foil 2.Drain Wire 3.Twisted-Pair Wires
5. Partially untwist each wire pair, making sure to retain a half twist at the end.
Figure12:Untwisting the Wire Pairs
6. Arrange the wires according to the following pin-out description:
