Siemens S45

Photo 2.15 Upper case inner view
The above PHOTO 2.14 and 2.15 illustrates the inner view components attached on the
casings.
Assembling S45/ME45
STEP 1:

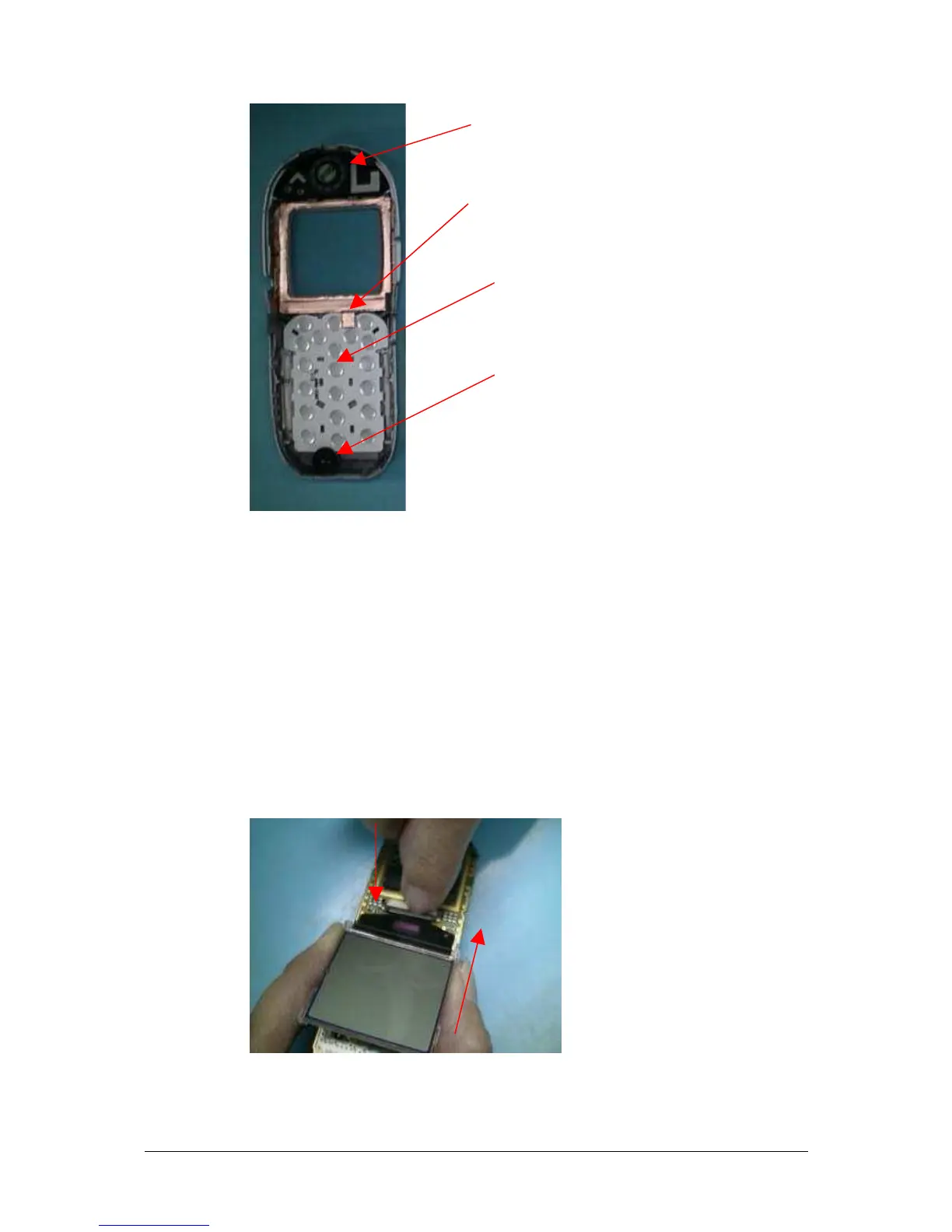

Photo 2.16 LCD Assembly
Plug in the connector cable of the display in the flex cable socket on the board (Step1) and then
close the socket latch (Step 2) to secure the LCD display as shown in PHOTO 2.16
Speaker
Display cushion
Keypad
Microphone
Step 2
Step 1
