STEP 2:

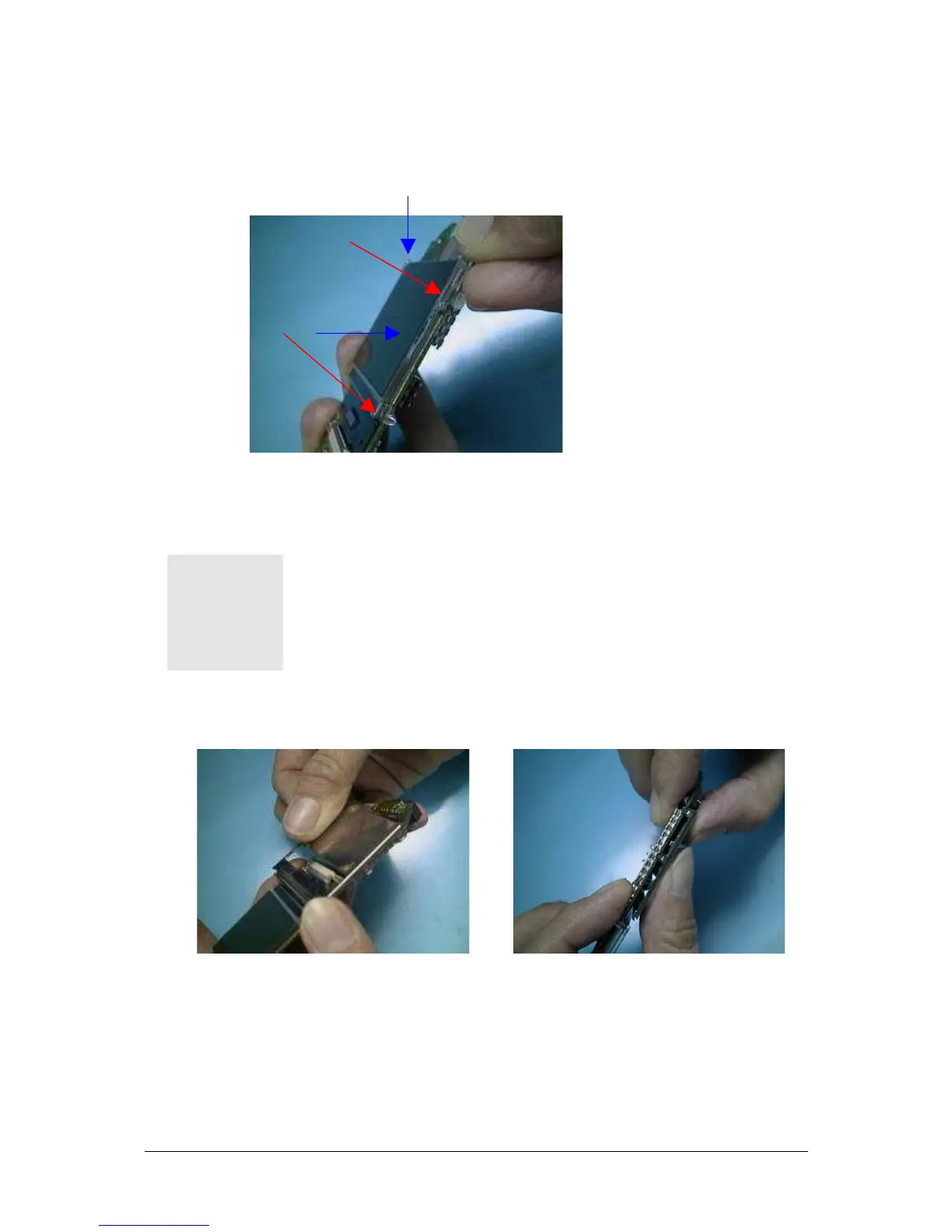

Photo 2.17 LCD latches
Fasten the display to the RF board and by snapping the side latches as shown in PHOTO 2.17.
In order to position the display exactly, the synthetic projection
on the lower side of the display frame must be fitted into the
hole in the screen lid. The catches must fully engaged.
STEP 3:
Photo 2.18 Shield placement Photo 2.19 Shield latch snapping
Align the shield starting from the side (PHOTO 2.18) and using your finger to snap the latch at
the other end to secure the shield (PHOTO 2.19)
