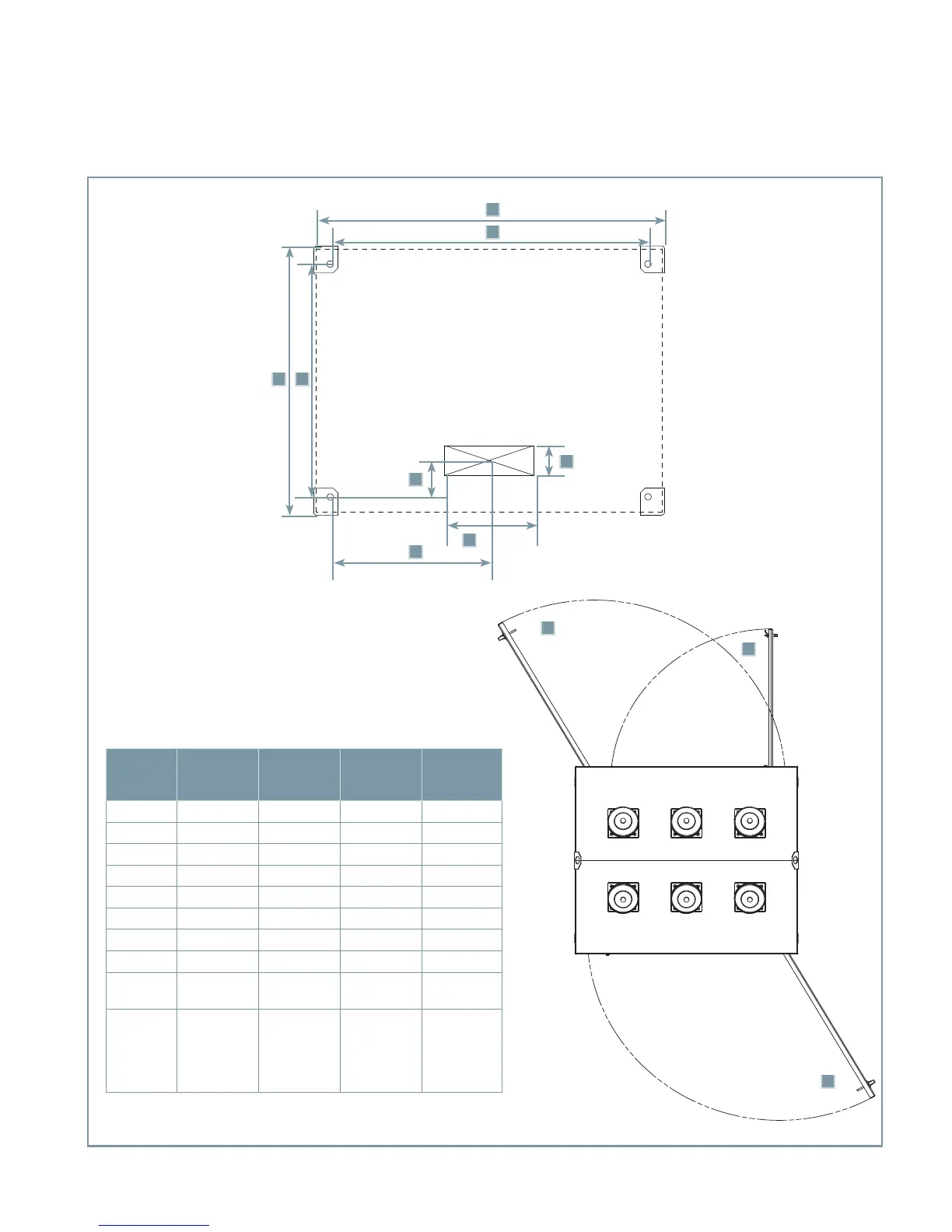

Figure 4: Anchoring type SDV7 distribution circuit breaker

Item

15.5 kV

1,200 A-

2,000 A

15.5 kV

3,000 A

27.6 kV

1,200 A-

2,000 A

38.0 kV

1,200 A-

2,500 A

A 47.1 (1,196) 56.5 (1,435) 56.5 (1,435) 67.8 (1,722)

B 42.7 (1,085) 52.0 (1,321) 52.0 (1,321) 63.1 (1,603)

C 6.0 (152) 6.0 (152) 6.0 (152) 6.0 (152)

D 12.0 (305) 12.0 (305) 12.0 (305) 12.0 (305)

E 21.3 (541) 26.0 (660) 26.0 (660) 31.5 (800)

F 4.9 (124) 3.9 (99) 4.9 (124) 5.1 (130)

G 31.3 (795) 39.4 (1,001) 39.4 (1,001) 50.7 (1,288)

H 36.1 (917) 44.2 (1,123) 44.2 (1,123) 55.6 (1,412)

I (Outer

door)

40.0 (1,016) 46.5 (1,181) 46.5 (1,181) 46.8 (1,189)

J (Inner

relay

panel,

when

supplied)

36.0 (914) 42.8 (1,087) 42.8 (1,087) 41.3 (1,049)

Dimensions in inches (mm)

Siemens SDV7 User Manual
