Siemens SED2 User Manual

AOP Start-Up & Initialization
Siemens Building Technologies, Inc. 9

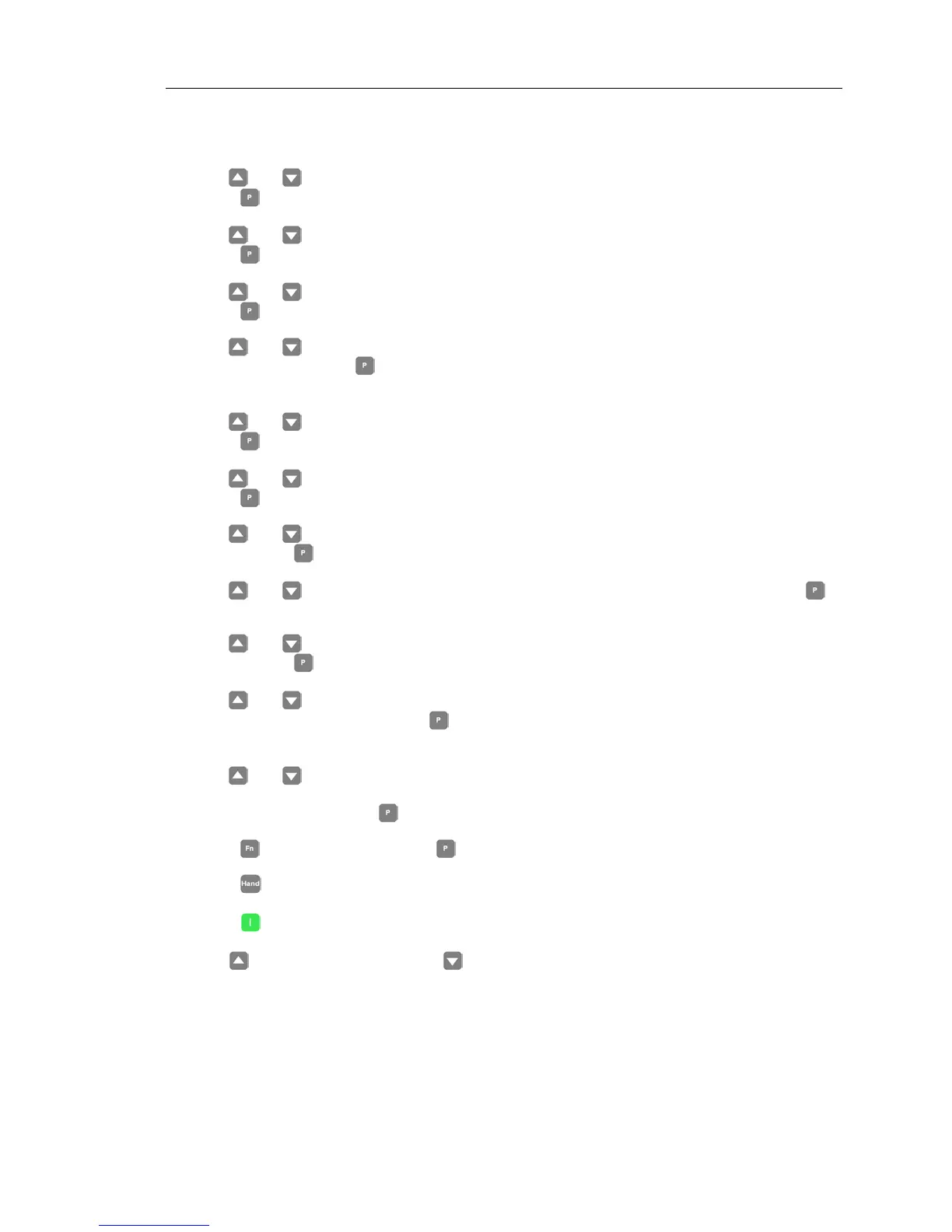

4.
Use and to scroll through the parameters and to highlight Command Source P0700.
Press
to confirm the selection and the cursor advances to the parameter index.
Use
and to scroll through the indexes for P0700 and to highlight P0700[1] (index 1).
Press
to confirm the selection and the cursor advances to the parameter value.
Use
and to set P0700[1]=4 (USS on BOP/AOP local link).
Press
to confirm the setting and the cursor returns to the parameter.
5. Use and to scroll through the parameters and to highlight Selection of Frequency
Setpoint P1000. Press
to confirm the selection and the cursor advances to the parameter
index.
Use
and to scroll through the indexes for P1000 and to highlight P1000[1] (index 1).
Press
to confirm the selection and the cursor advances to the parameter value.
Use
and to set P1000[1]=1 (motor potentiometer [MOP] setpoint).
Press
to confirm the setting and the cursor returns to the parameter.
6. Use and to scroll through the parameters and to highlight Commissioning parameter
P0010. Press
to confirm the selection and the cursor advances to the parameter value.
Use
and to set P0010[0]=0 (Ready) to exit the quick commissioning mode. Press
to confirm the setting and the cursor returns to the parameter.
7. Use and to scroll through the parameters and to highlight USS Telegram Off Time
P2014. Press
to confirm the selection and the cursor advances to the parameter index.
Use
and to scroll through the indexes for P2014 and to highlight P2014[1] (index 1,
Serial Interface BOP Link). Press
to confirm the selection and the cursor advances to the
parameter value.
Use
and to set P2014[1]=5000 (USS on BOP/AOP local link) to prevent unexpected
drive operation. In this mode, removal of the AOP from the SED2 VFD causes a timeout to
occur in 5 seconds. Press
to confirm the setting and the cursor returns to the parameter.
8. Press to return to r0000. Press to display the standard (operate) screen.
9. Press to switch the SED2 to hand mode.
10. Press to start the SED2.
11. Use to increase the output; Use to decrease the output.

Siemens SED2 Specifications

General

Input Voltage	380-480V AC
Current Rating	Depends on model
Control Type	Digital
Communication	PROFIBUS, PROFINET, Ethernet
Communication Interface	RS485
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Operating Temperature	0 to +45 °C
Storage Temperature	+70 °C
