Accessories
4.2 Internal accessories
3VA molded case circuit breakers with IEC certificate
Manual, 03/2019, A5E03603177010-03
199

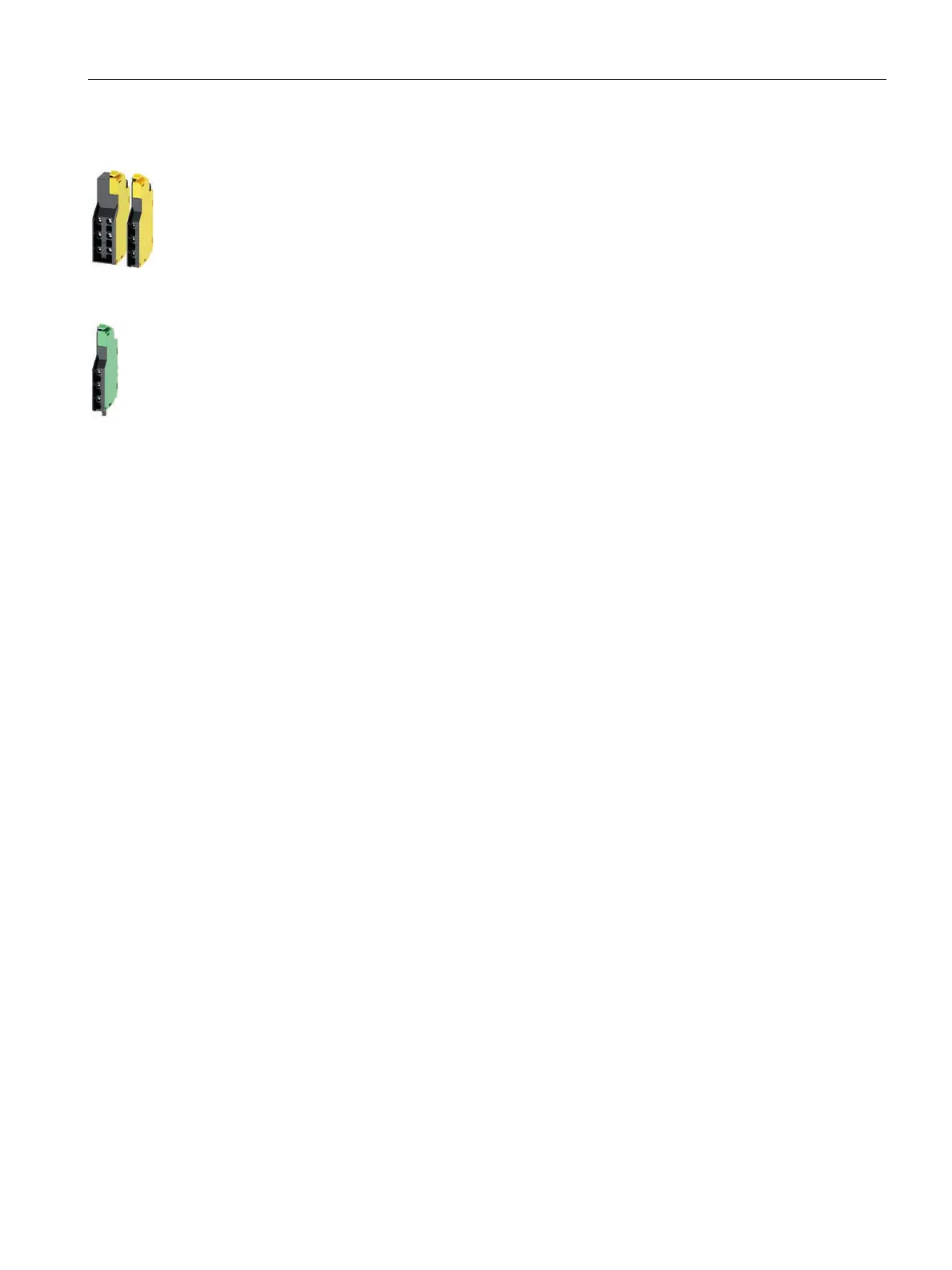

Trip alarm switches TAS
Trip alarm switches signal all types of molded case circuit breaker trip, regardless of the
cause of the trip. The trip alarm switches are actuated whenever the molded case circuit
breaker switches to the TRIP position.
Electrical alarm switches EAS
Electrical alarm switches are operated as soon as the main contacts of the molded case
circuit breaker open in the event that the breaker is tripped by the ETU. They indicate the
following conditions:
Overload L and neutral conductor overload
Short-circuit S, I
Ground-fault tripping G
Residual current device RCD820
The electrical alarm switch is not operated:
When the breaker is tripped manually
PUSH TO TRIP
When the breaker is withdrawn from the plug-in/draw-out socket when the main
contacts are closed
When activated via an auxiliary release
Shunt trip STL, STL(EI), STF
Undervoltage release UVR
Universal release UNI
Electrical alarm switches are compatible only with 3VA2 molded case circuit breakers
equipped with electronic trip units (ETU).
