Technical specifications

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

584 Manual, 03/2019, A5E03603177010-03

6.2.2.2

Plug-in and draw-out units

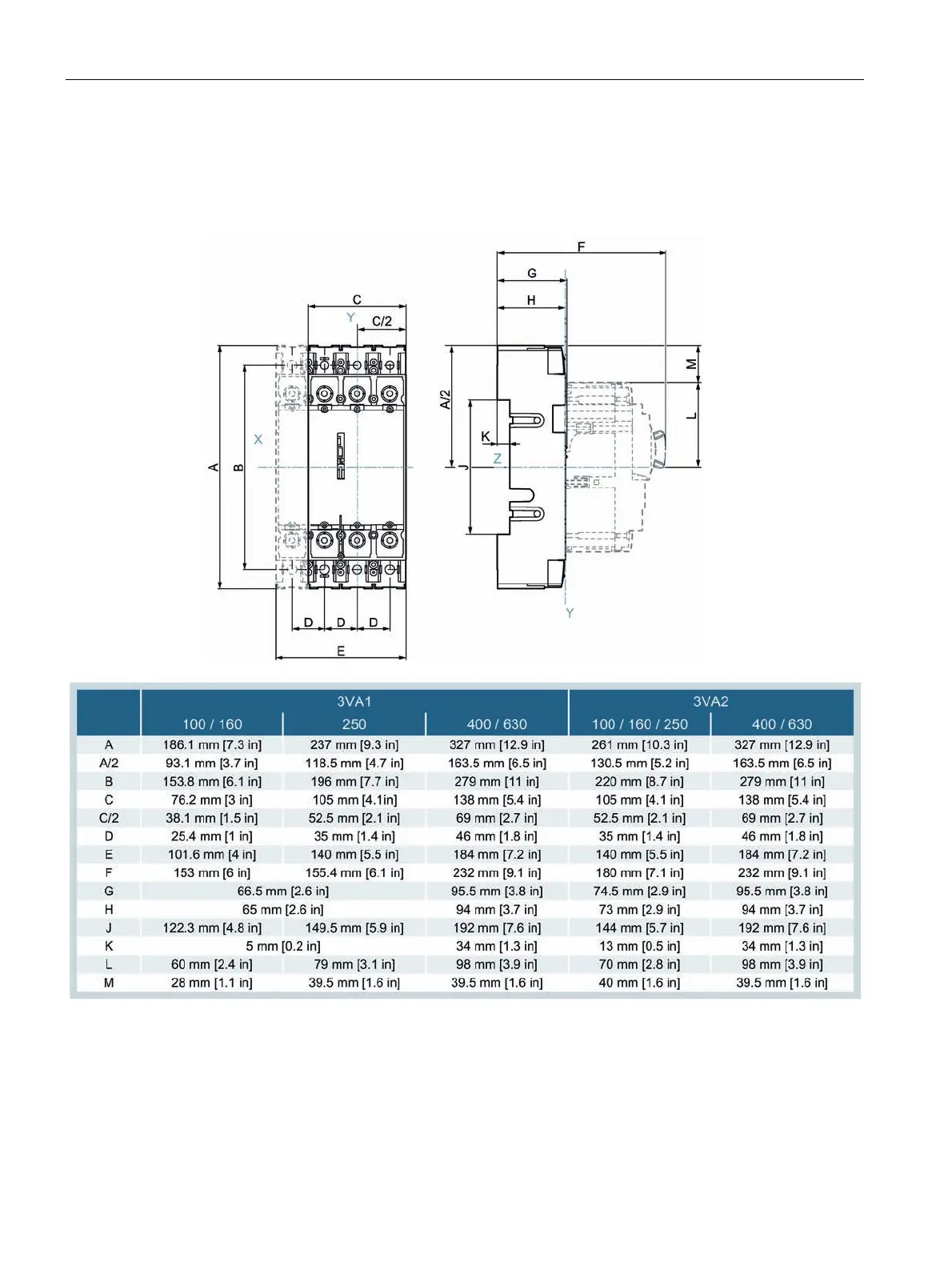

Plug-in socket
