Technical specifications

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

Manual, 03/2019, A5E03603177010-03

565

6.2

Dimensional drawings

6.2.1

Dimensions of basic units

6.2.1.1

3VA10 and 3VA11

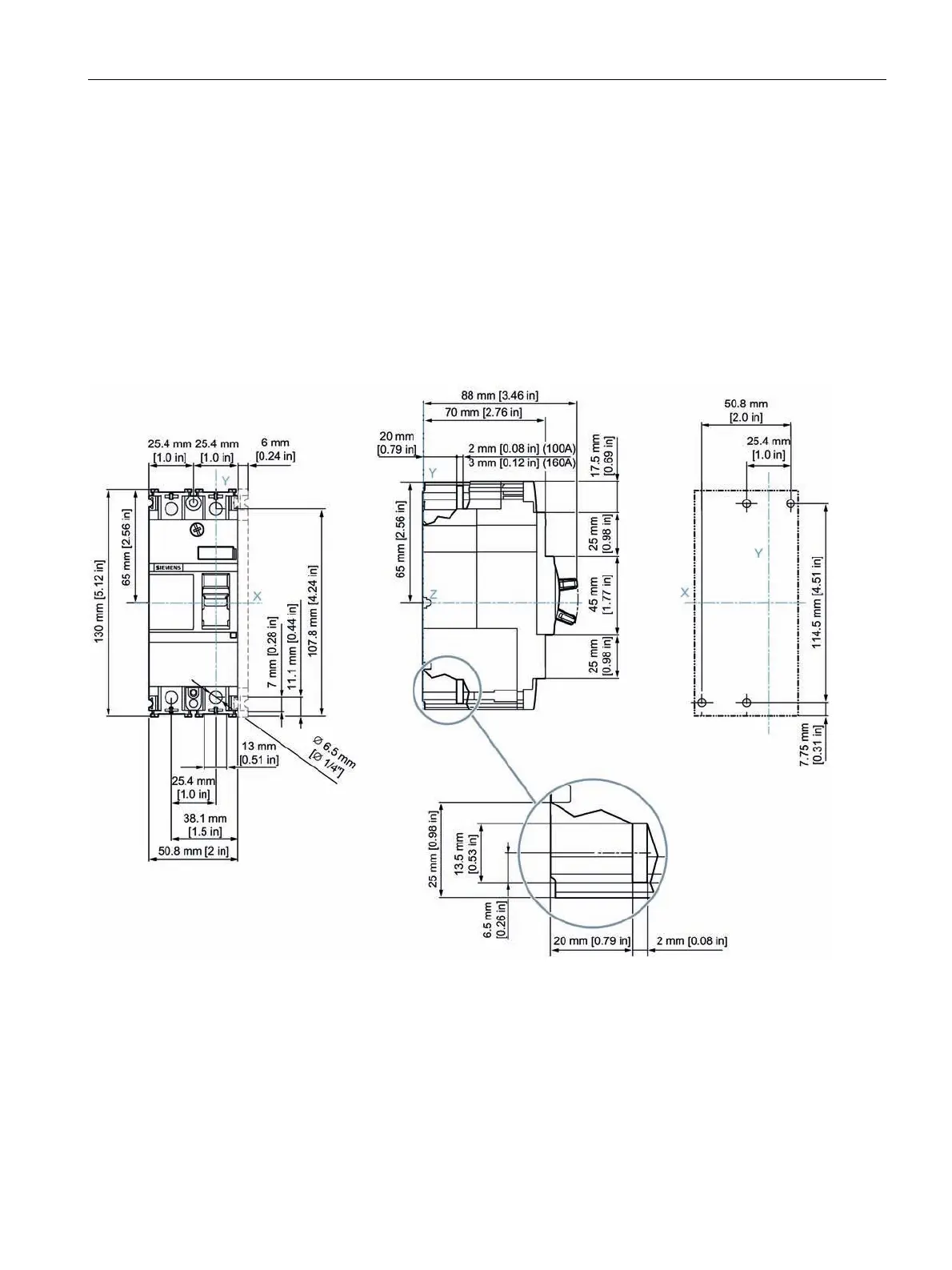

3VA11 160 A 1-pole / 2-pole
