Siemens SENTRON 3VA2 - 3 Va13; 3 Va14

To Next Page

To Previous Page

Technical specifications

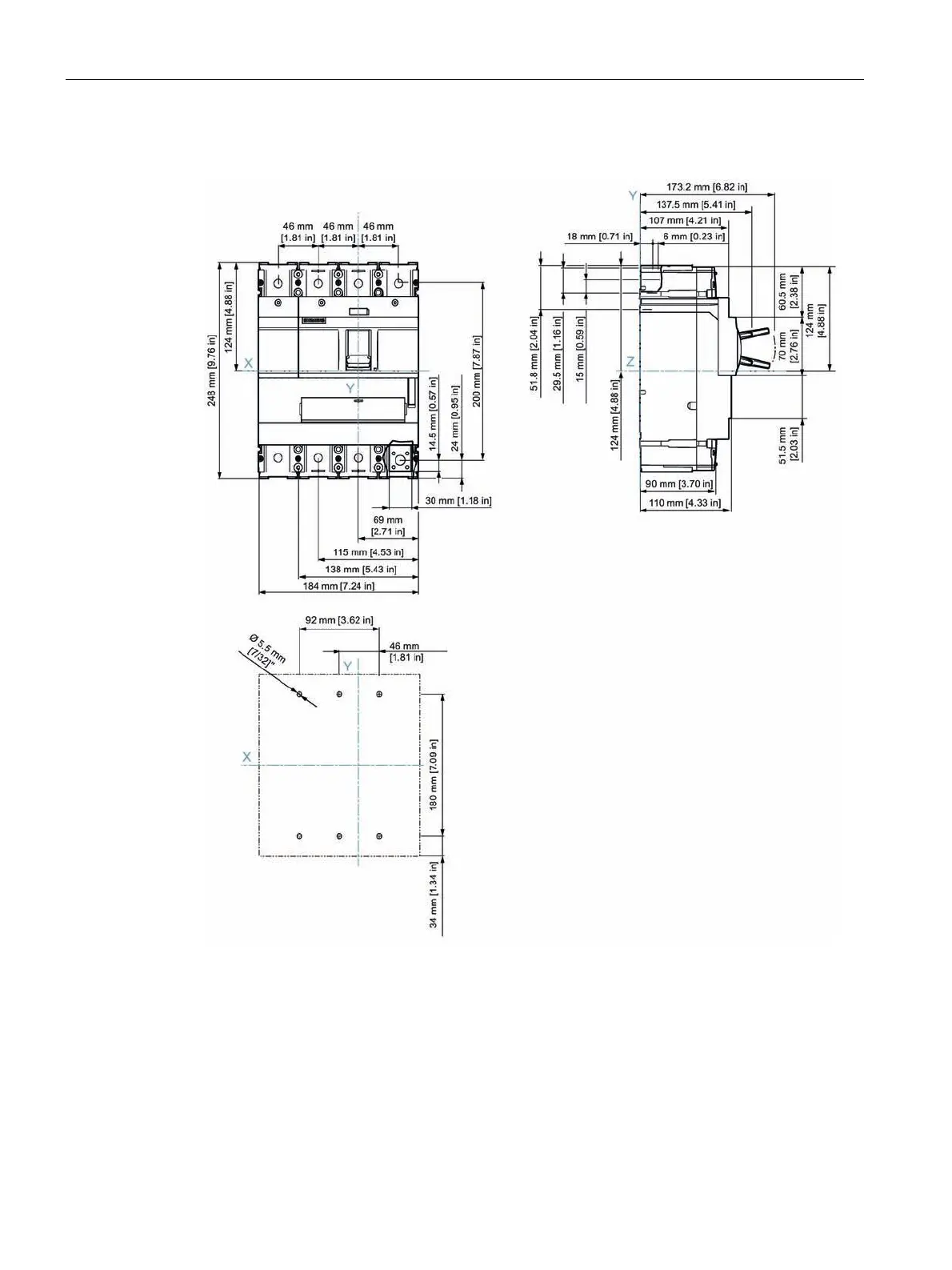

6.2 Dimensional drawings

3VA molded case circuit breakers with IEC certificate

568 Manual, 03/2019, A5E03603177010-03

6.2.1.3

3VA13 / 3VA14
