Siemens SIMATIC C7 User Manual

C7-Ein-/Ausgabebaugruppe / C7 Input/Output Module
34
Produktinformation / Product Information
C79000-Z7074-C630-01
4.6.4 Pinout and Addressing of the Universal Inputs
Pin designations
Inputs with this shading
have no relevance to this
example
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
V
iew of lower side
Address 319.3* or 287.3**
GATE 3
Address
319.2* or 287.2**
GATE 2
Address
319.1* or 287.1**
GATE 1
Address
319.0* or 287.0**
M
DI–X1
DI–X2
DI–X3
DI–X4
Universal inputs
DI to controller ext. gate counter 1
DI to controller ext. gate counter 2
DI to controller ext. gate counter 3
* Connection to C7-6xx/P
** Connection to C7-63x DP

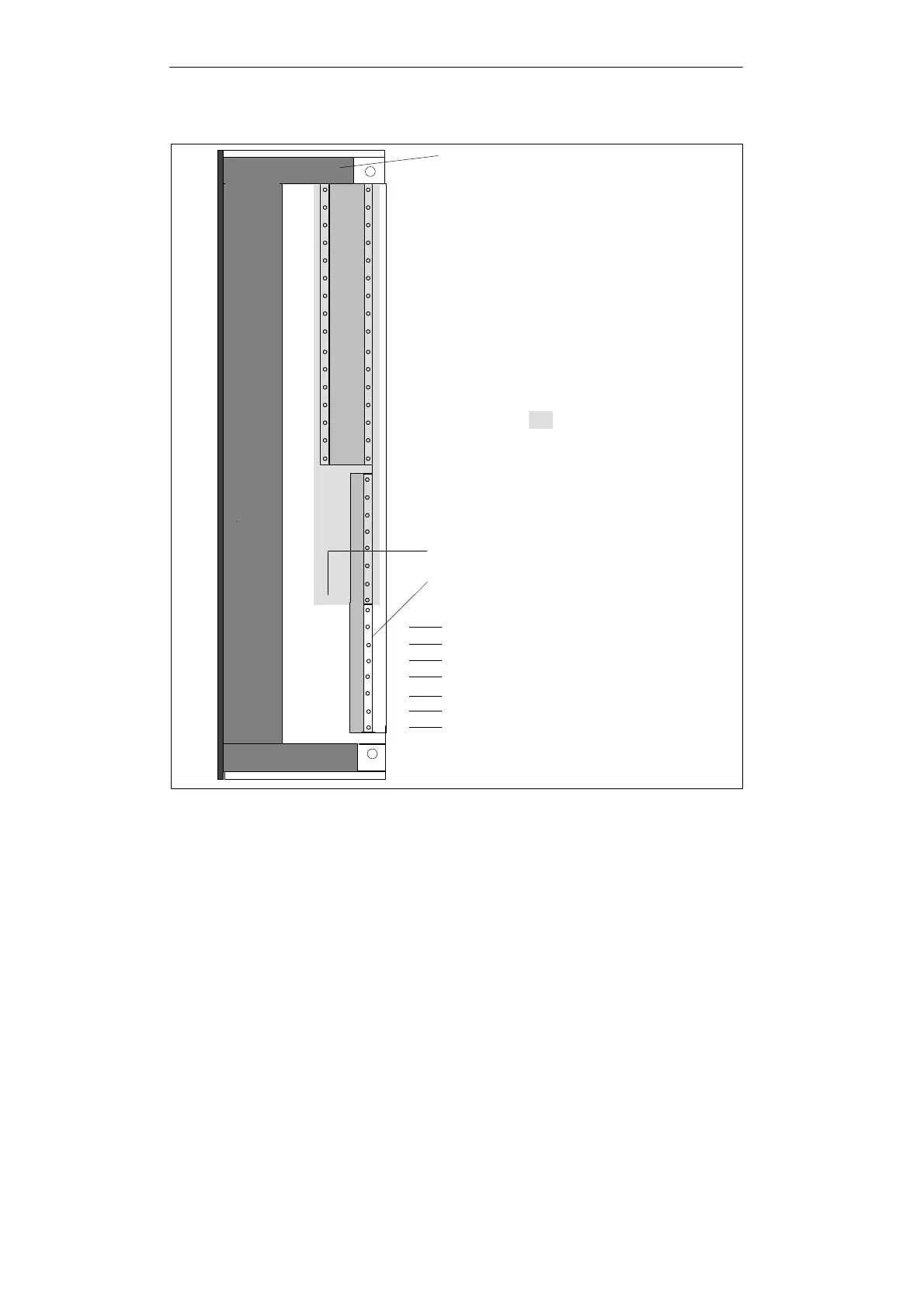

Bild 1-18 Connections of the Universal Inputs in the Case of Connection to C7-6xx/P or C7-63x DP
