Configuring
4-32 Application Module FM 458-1 DP - User Manual
A5E01078222-02 Edition 03.2009
4.5.7 Examples of CFC screenshots

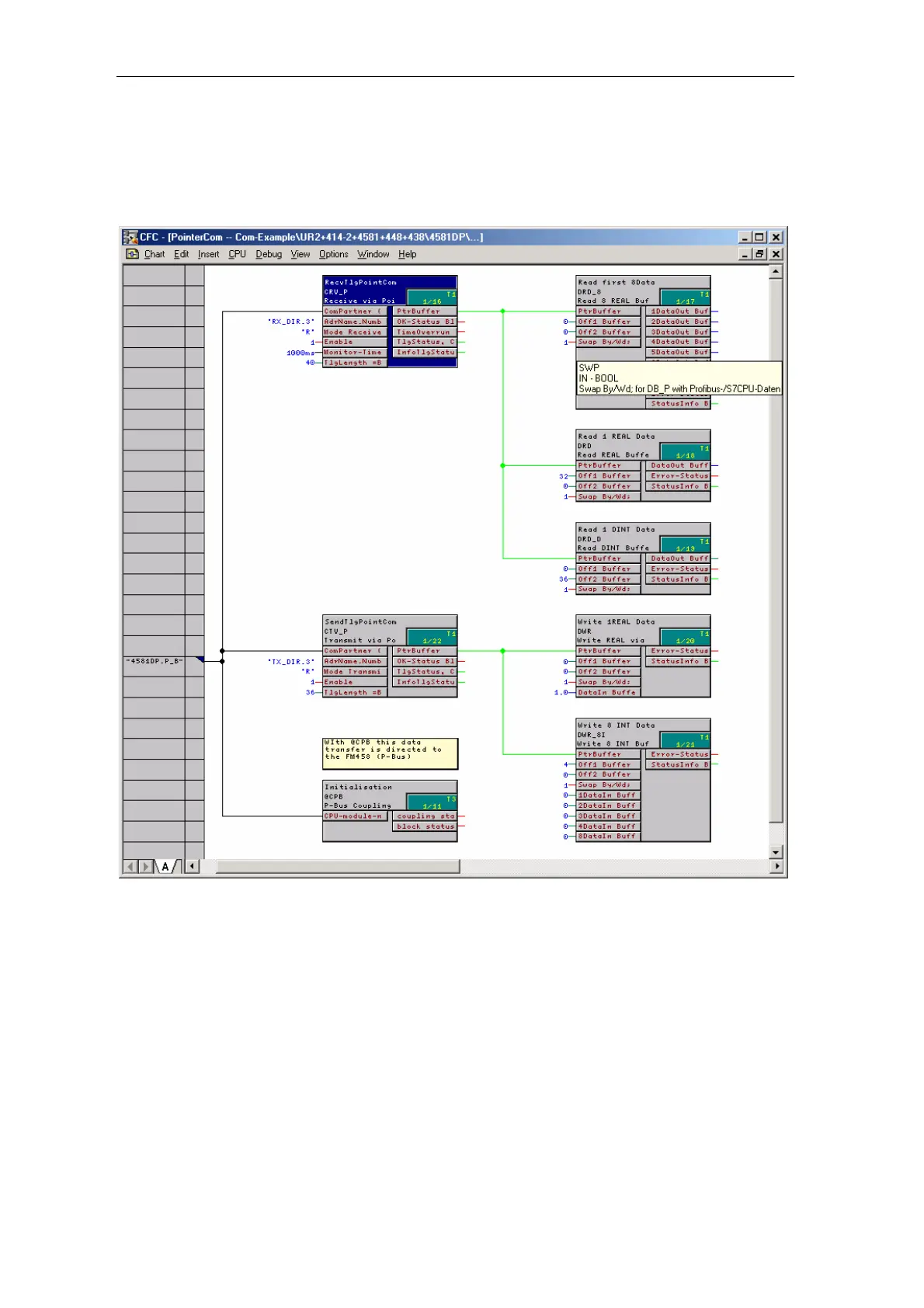

Fig. 4-9 CFC screenshot: Data transfer with telegram blocks and read/write blocks; here, for the interface P bus of the
FM 458-1 DP (@CPB); bytes/words must be swapped due to the data management on the SIMATIC-CPU:
SWP(Swap)=1
