1.10 Design of the TP1500 Basic color PN
Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
21
1.10 Design of the TP1500 Basic color PN










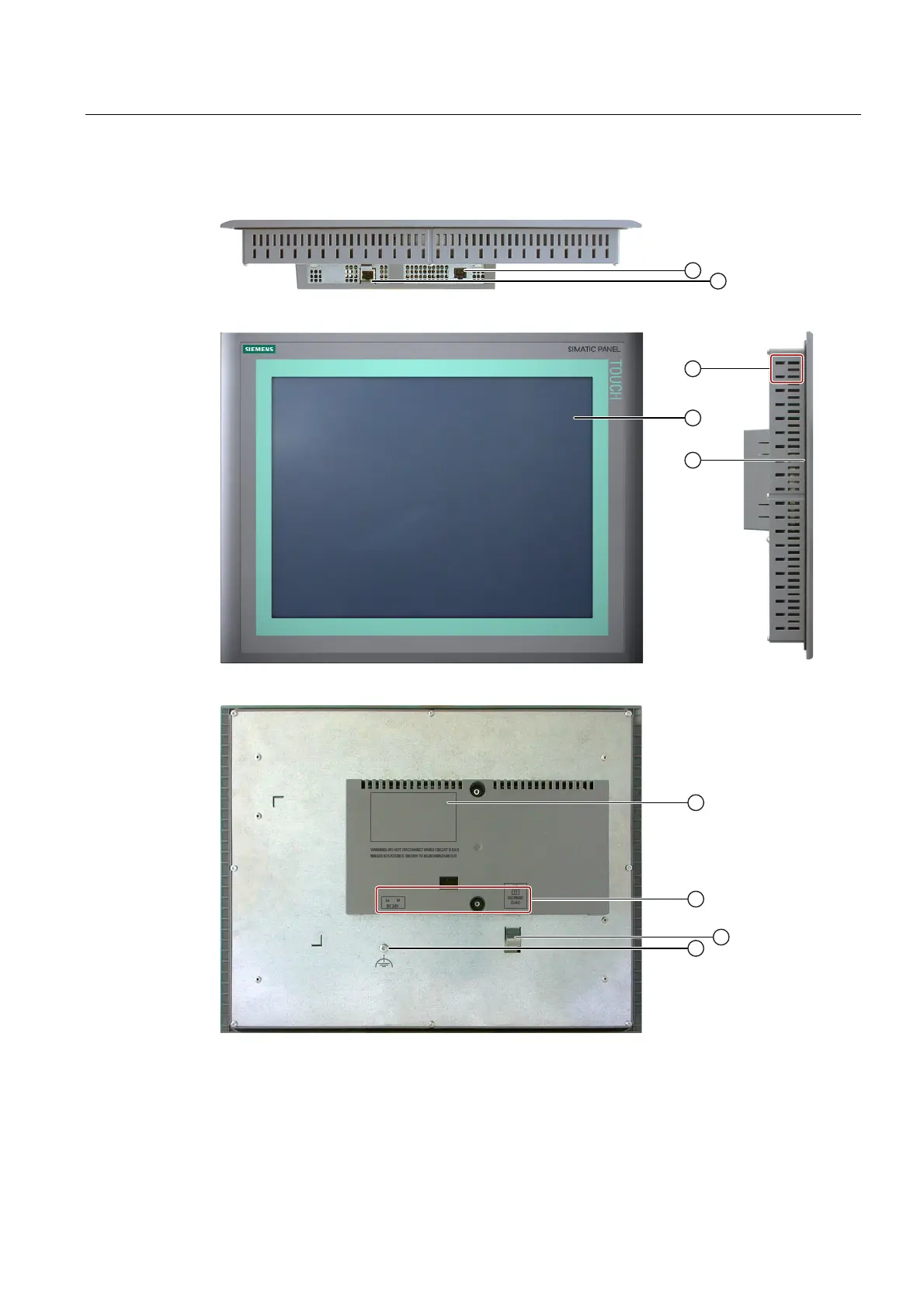

① Power supply connector ⑥ Rating plate
② PROFINET interface ⑦ Interface name
③ Cutouts for a mounting clamp ⑧ Fixing element
④ Display/touch screen ⑨ Functional earth connection
⑤ Mounting seal
