Mounting and connecting
3.3 Connecting the HMI device
Basic Panels
44 Operating Instructions, 04/2012, A5E02421799-03

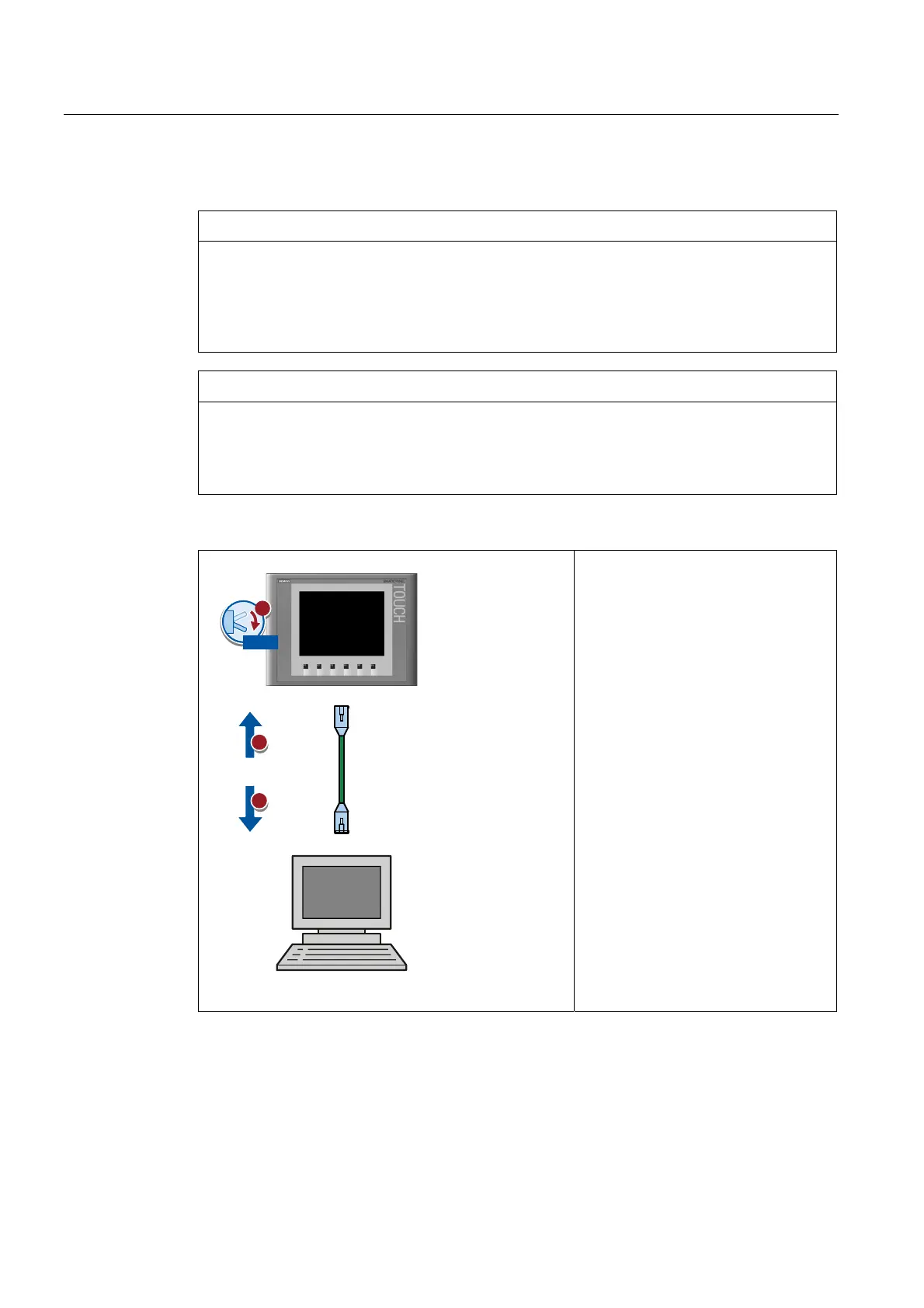

Connecting a configuring PC to a Basic Panel PN
CAUTION
Data network security for communication via Ethernet
With Ethernet-based communication via PROFINET, the end user is himself responsible for
the security of his data network; the proper functioning of the data network cannot be
guaranteed in all circumstances, for example in the case of target attacks leading to an
overloading of the device.
NOTICE
RJ45 plug connector with 180° output required
The connection of the Basic Panels PN to the HMI device requires the RJ45 plug connector
"IE FC RJ45 Plug 2 x 2". You can find ordering information in the Accessories (Page 23)
se
ction.
Use a standard CAT-5 Ethernet cable to connect the configuring PC.
LAN
PC
PROFINET (LAN)
LAN
2))
1. Shut down the HMI device.
2. Connect one RJ45 connector of the
LAN cable to the HMI device.
3. Connect the other RJ45 connector of
the LAN cable to the configuring PC.
See also
Data transmission options (Page 91)
