Operating the device
4.1 Operating touch devices
Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
55
Note
Job mailbox has no effect
PLC job 51 "Select screen" has no effect while the screen keyboard is open.
Key assignment
The alphanumerical screen keyboard layout is monolingual.
A language change within the project has no effect on the layout of the alphanumerical
screen keyboard.

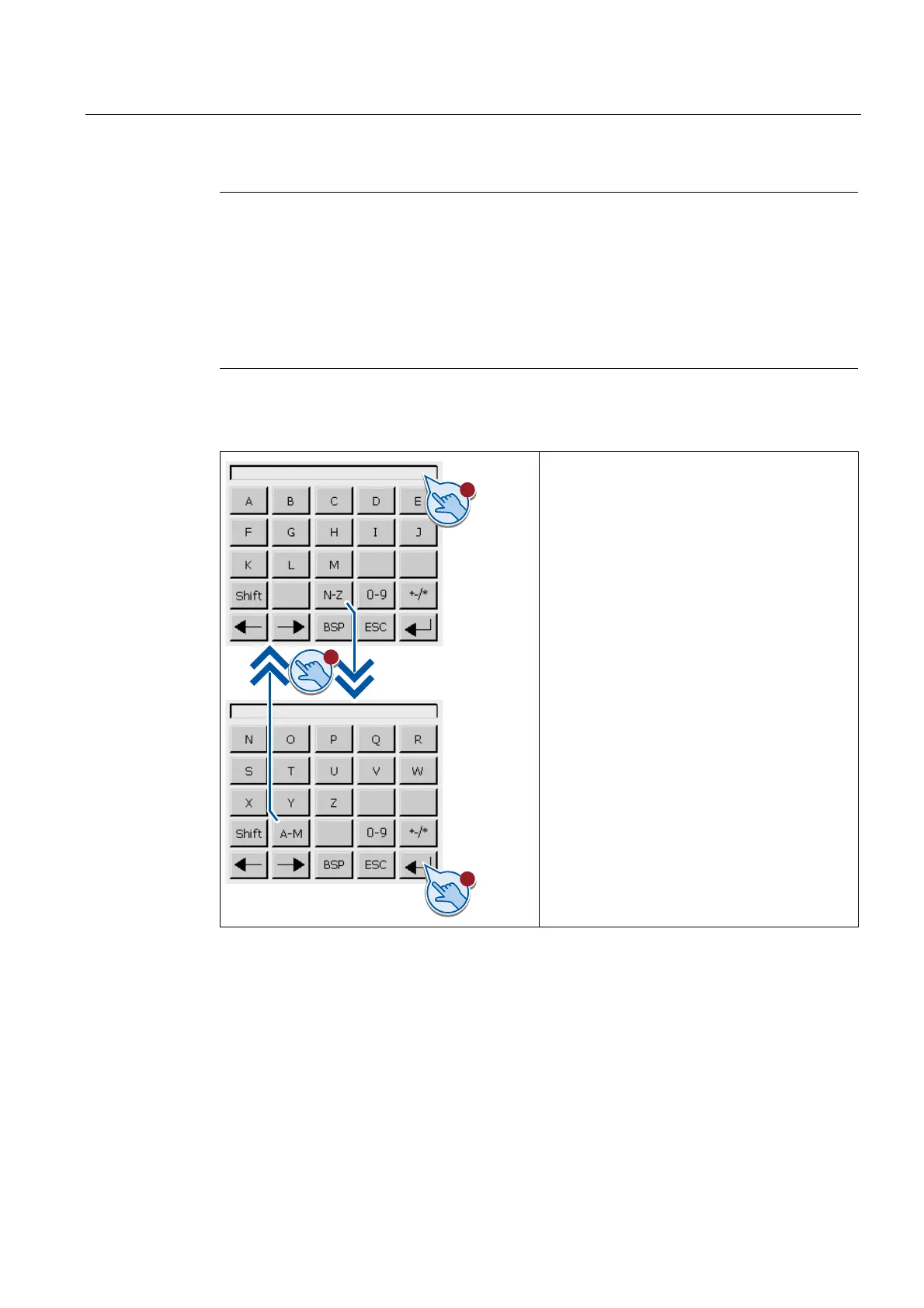

Entering alphanumerical values
1. Touch the desired operating element on the
screen.
The alphanumerical screen keyboard opens.
2. Enter the value. Depending on the settings,
the HMI device outputs an audible signal.
You can change the view of the screen
keyboard using the keys <N-Z> and <A-M>.
Use the <Shift> key to enter lower-case
letters.
3. Press <Return> key to confirm your entries, or
cancel them with <ESC>.
Either action closes the screen keyboard.
