SIMATIC Industrial Flat Panels V2 1500/1900 4:3/5:4
16 A5E50653860-AA, 01/2021
Requirements for complying with degree of protection
The degree of protection of the device can only be guaranteed if the following requirements are met:
• Material thickness at the mounting cutout for IP65 degree of protection, or for enclosure type 4X/type 12 (indoor use only):
2 mm to 6 mm
• Permissible deviation from plane at the mounting cutout: ≤ 0.5 mm
This condition must also be met for the installed device.
• Permissible surface roughness in the area of the mounting seal: ≤ 120 µm (R
z 120)

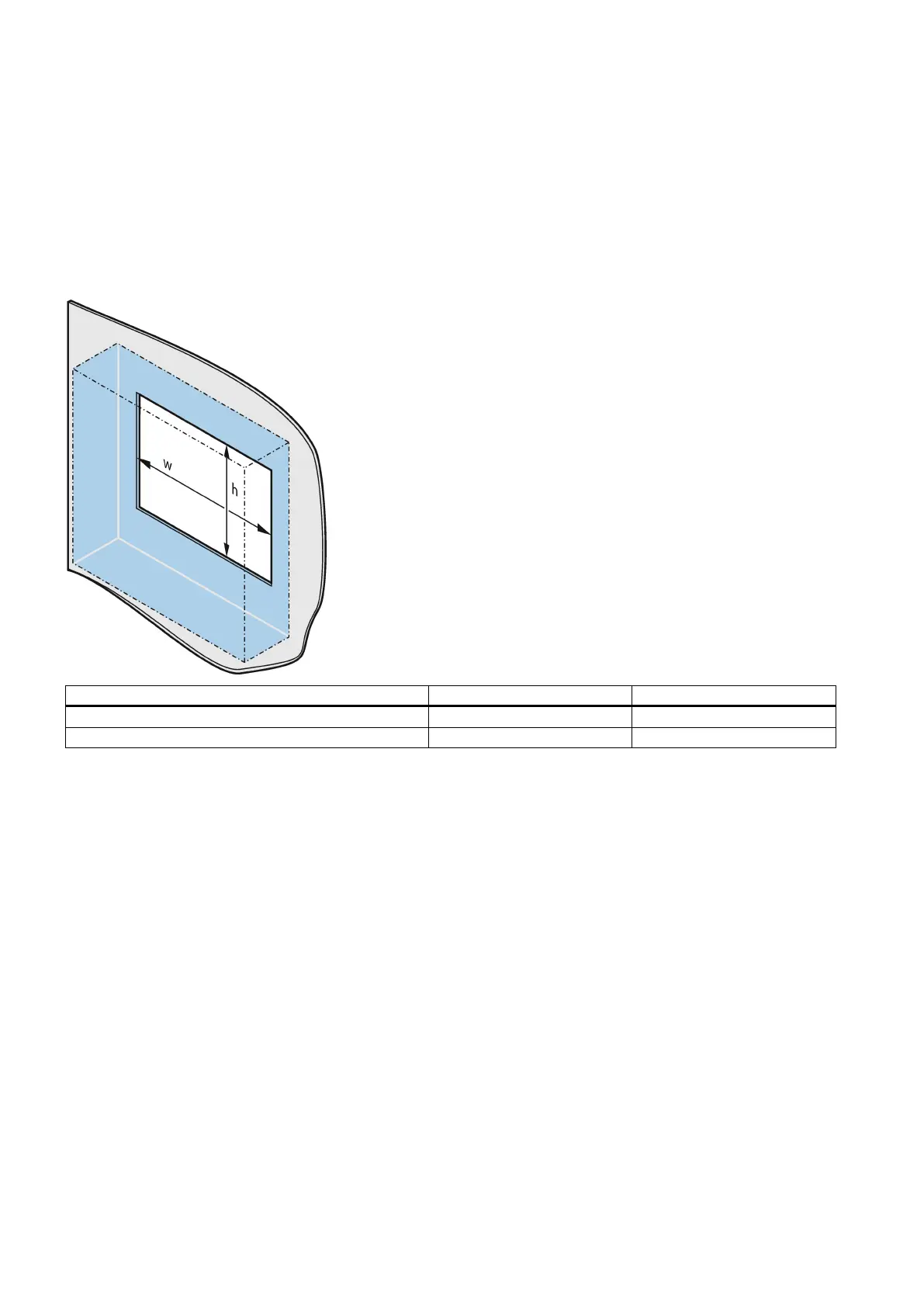

Dimensions of the mounting cutout
1
+1
+1
1
+1
+1
1
Width and height must be interchanged for mounting in vertical format.
Installation depth
Information on the overall depth is available in the section "Dimension drawings (Page 24)".
Procedure
1. Based on the dimensions, check whether the required pressure points on the rear and the seal area are easily accessible after
the mounting cutout is produced. Otherwise, the mounting cutout is not usable.
2. Prepare the mounting cutout in accordance with the dimensions.
