RUGGEDCOM RSG907R
Installation Guide
Chapter 2
Installing the Device
Mounting the Device to a Panel 11

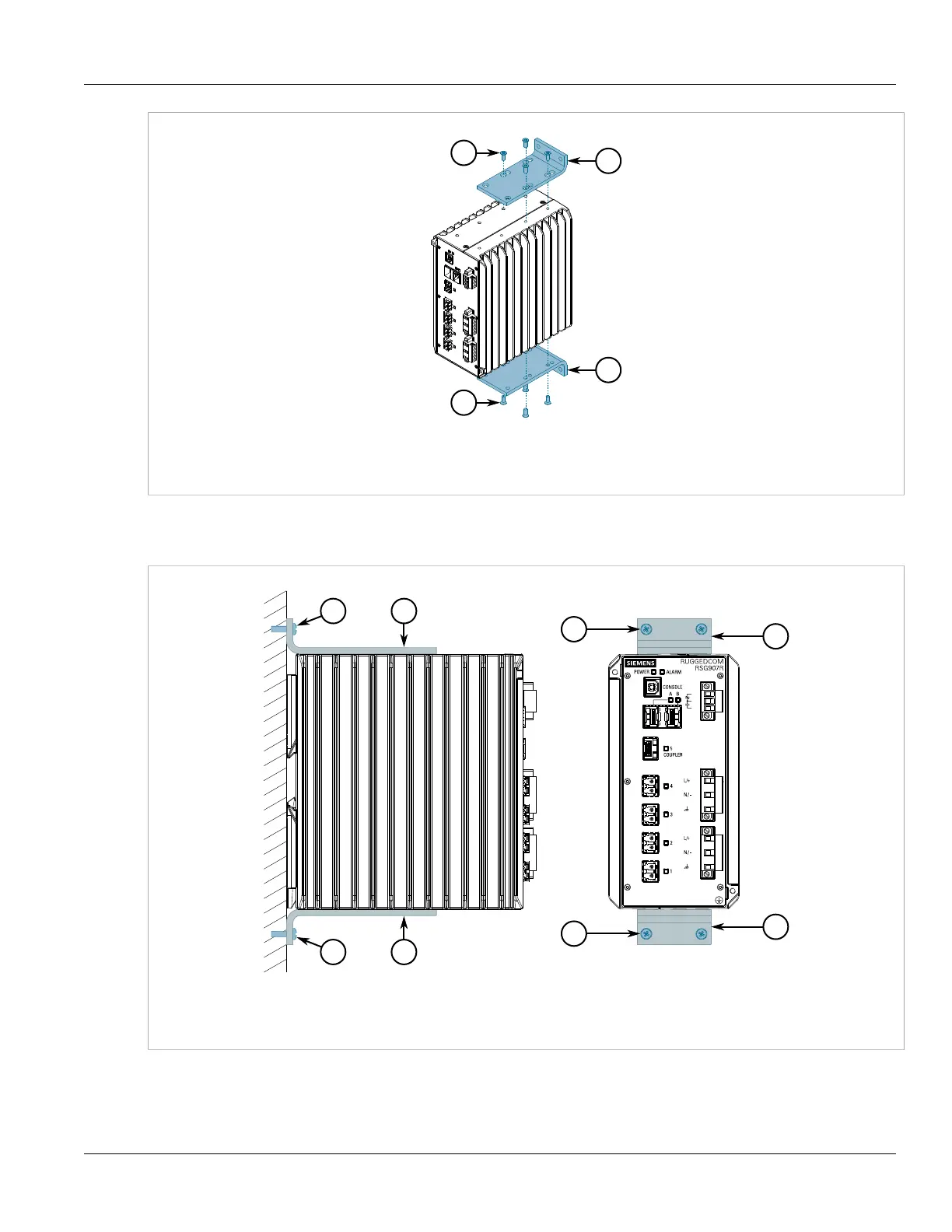

Figure5:Panel Mount Adapter Assembly
1.Screw (M4) 2.Panel Mount Adapter
2. Prepare mounting holes in the panel where the device is to be installed.
3. Place the device against the panel and align the adapters with the mounting holes.
Figure6:Panel Mounting (Rear Mount Orientation)
1.Screw (M5 or #10-24) 2.Panel Mount Adapter
4. Secure the adapters to the panel with M5 or #10-24 screws.
