RUGGEDCOM RSG907R
Installation Guide
Chapter 4
Communication Ports
Redundant Network Access (RNA) Ports 25
Communication Ports
The RUGGEDCOM RSG907R can be equipped with various types of communication ports to enhance its abilities
and performance.

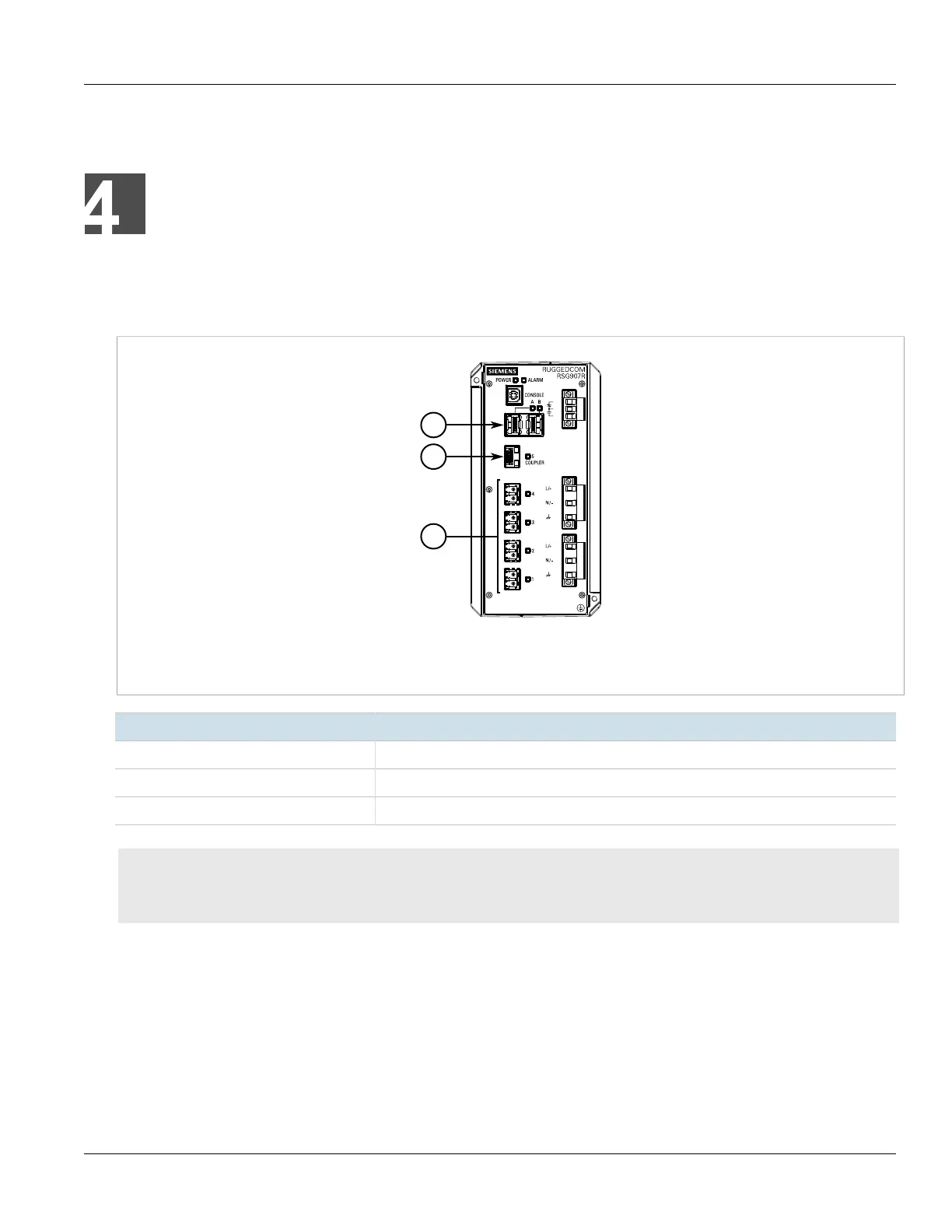

Figure23:Port Assignment
1.Ports A and B 2.Port 5 3.Ports 1 to 4
Port Type
A/B SFP Transceiver (1000Base-SX/LX)
5 SFP Transceiver (1000Base-SX/LX)
1 to 4 Fiber Optic (100Base-FX) Ethernet Ports
CONTENTS
• Section4.1, “Redundant Network Access (RNA) Ports”
• Section4.2, “Fiber Optic Ethernet Ports”
Section4.1
Redundant Network Access (RNA) Ports
The RUGGEDCOM RSG907R features three dedicated Small Form-factor Pluggable (SFP) transceiver sockets for
PRP/HSR applications:
