Installing the Device
2.5.1 Connecting Low DC Power
1. Connect the power supply terminal block to the device.
2
1
3
4
5
6
1
Surge Ground Terminal
2
Positive (+) Terminal
3
Chassis Ground Terminal
4
Negative (-) Terminal
5
Jumper
6
Chassis Ground Connection

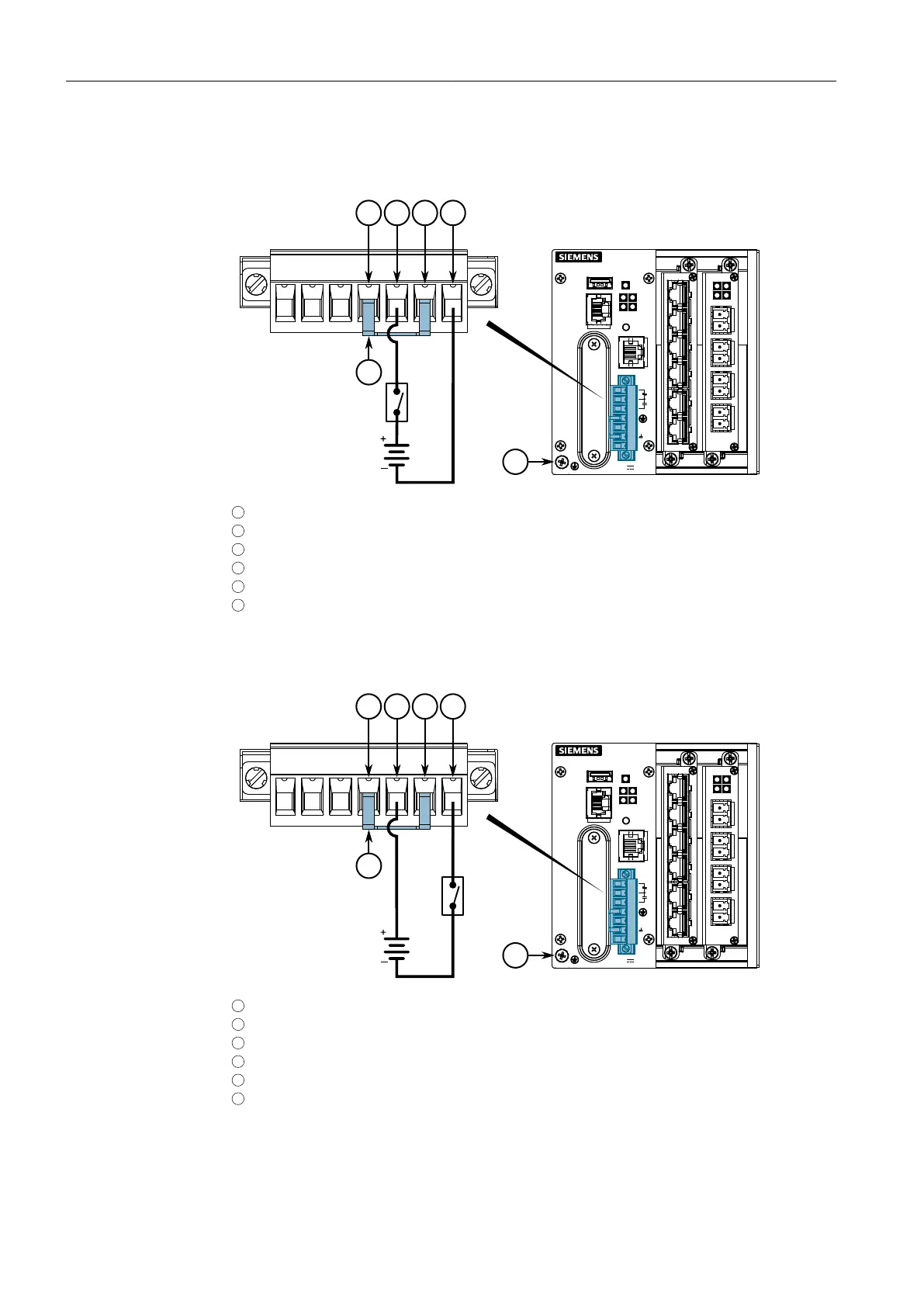

Figure2.4 DC Terminal Block Wiring for Positive VDC Power Supplies
21 3 4
5
6
1
Surge Ground Terminal
2
Positive (+) Terminal
3
Chassis Ground Terminal
4
Negative (-) Terminal
5
Jumper
6
Chassis Ground Connection
Figure2.5 DC Terminal Block Wiring for Negative VDC Power Supplies
RUGGEDCOM RX1512
Installation Manual, 07/2019, C79000-G8976-1057
11
