4.3 Installing on an S7-1500 standard rail
SCALANCE W774-1 /W734-1
Operating Instructions, 07/2020, C79000-G8976-C325-14
31
4.3 Installing on an S7-1500 standard rail
Procedure
Follow the steps below to fit the SCALANCE W774/W734 to an S7-1500 standard rail:

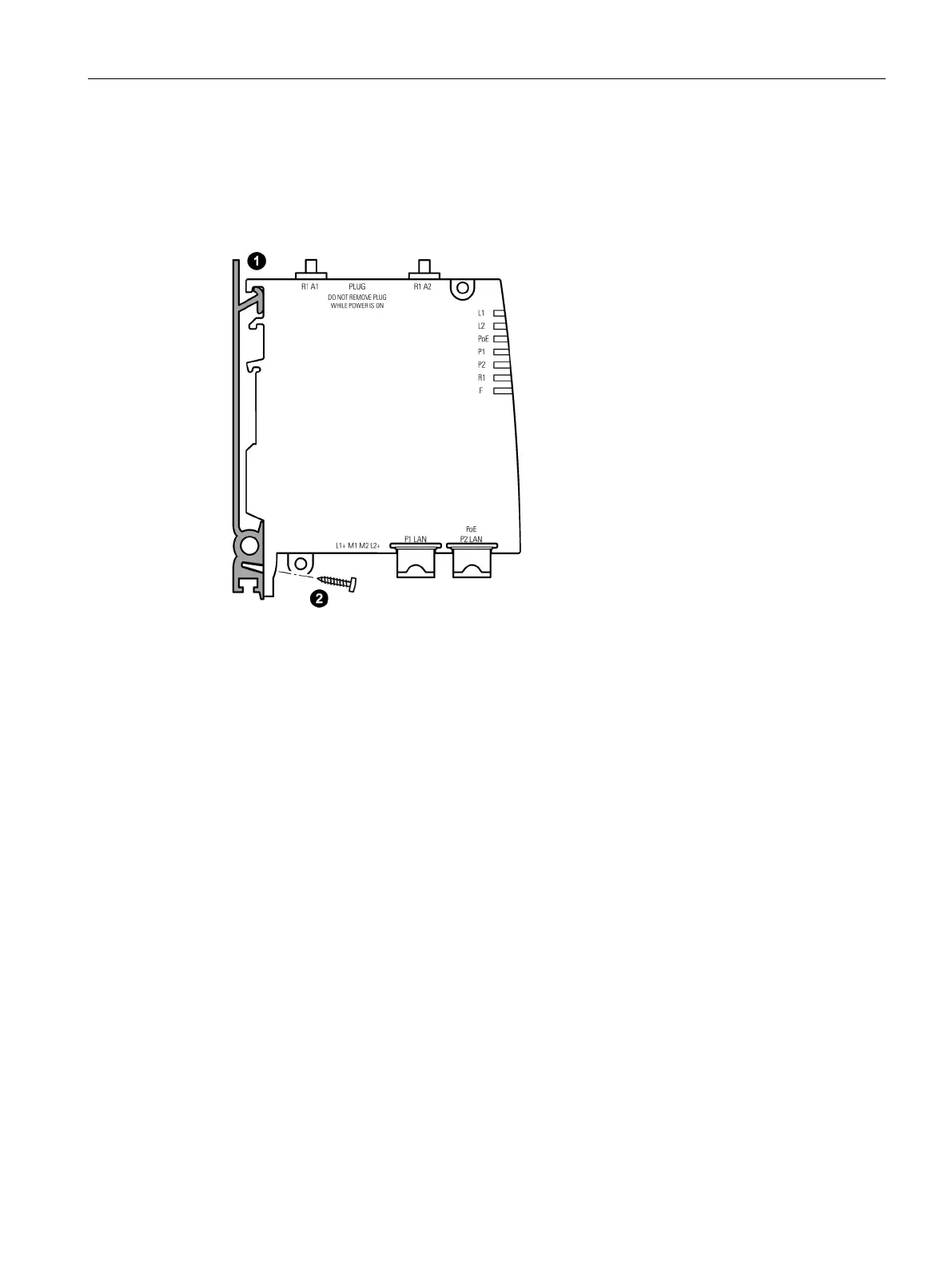

1. Place the device on the upper edge of the S7-1500 standard rail as shown in the figure.
2. Screw the housing to the S7-1500 standard rail. The required screw ships with the
device.
3. Mount the connecting cables and the antenna, see section "Connecting up (Page 35)".
