Position and assignment
/
/
0
0

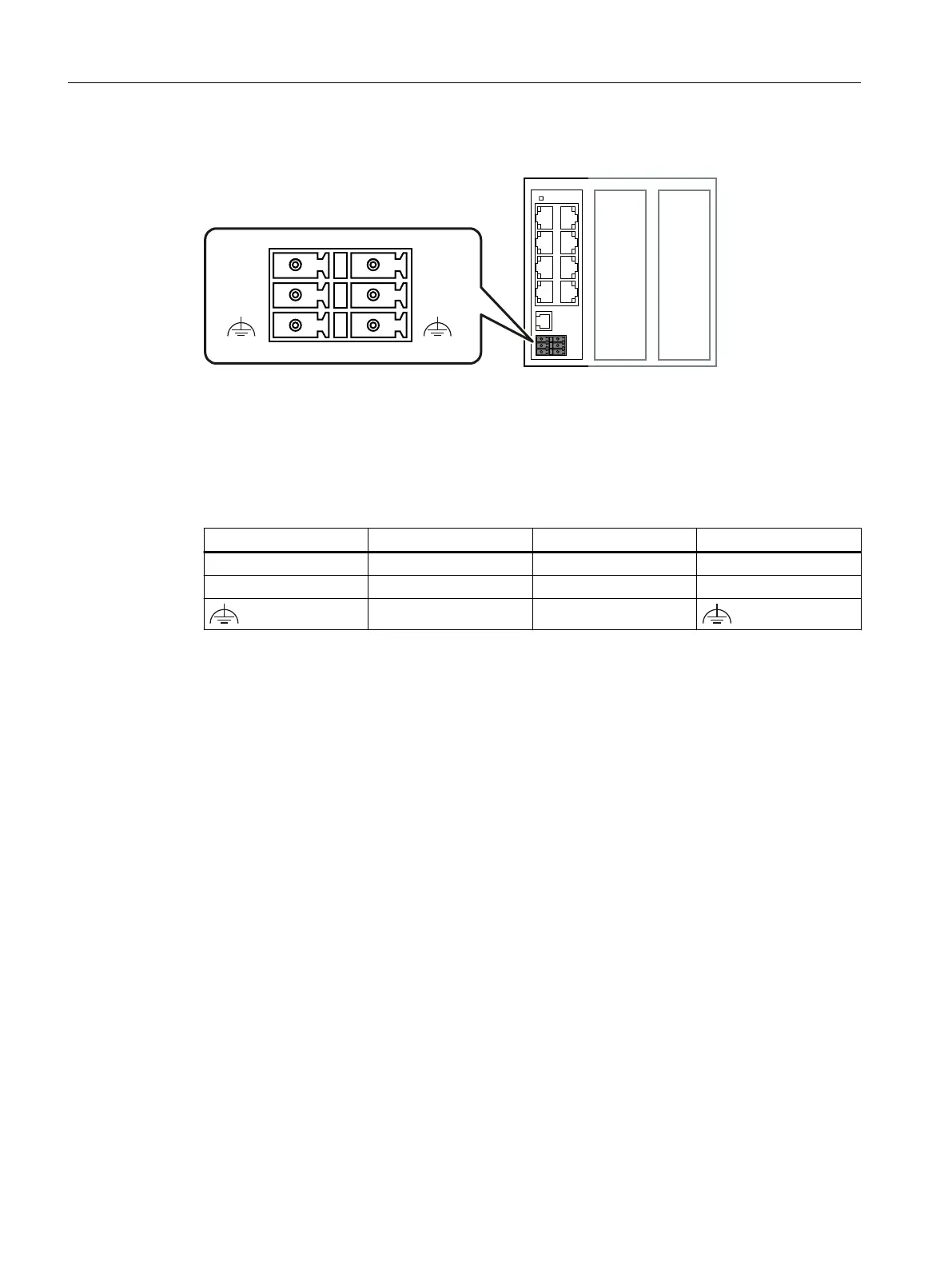

Figure 6-1 Position of the power supply, for example on the SCALANCE XB213-3
Contact Assignment Assignment Contact
L1+ 24 VDC 24 VDC L2+
M1 Ground Ground M2
Functional ground Functional ground
Connecting up
6.4 Power supply
SCALANCE XB-200
40 Operating Instructions, 03/2020, C79000-G8976-C359-09
