Removal

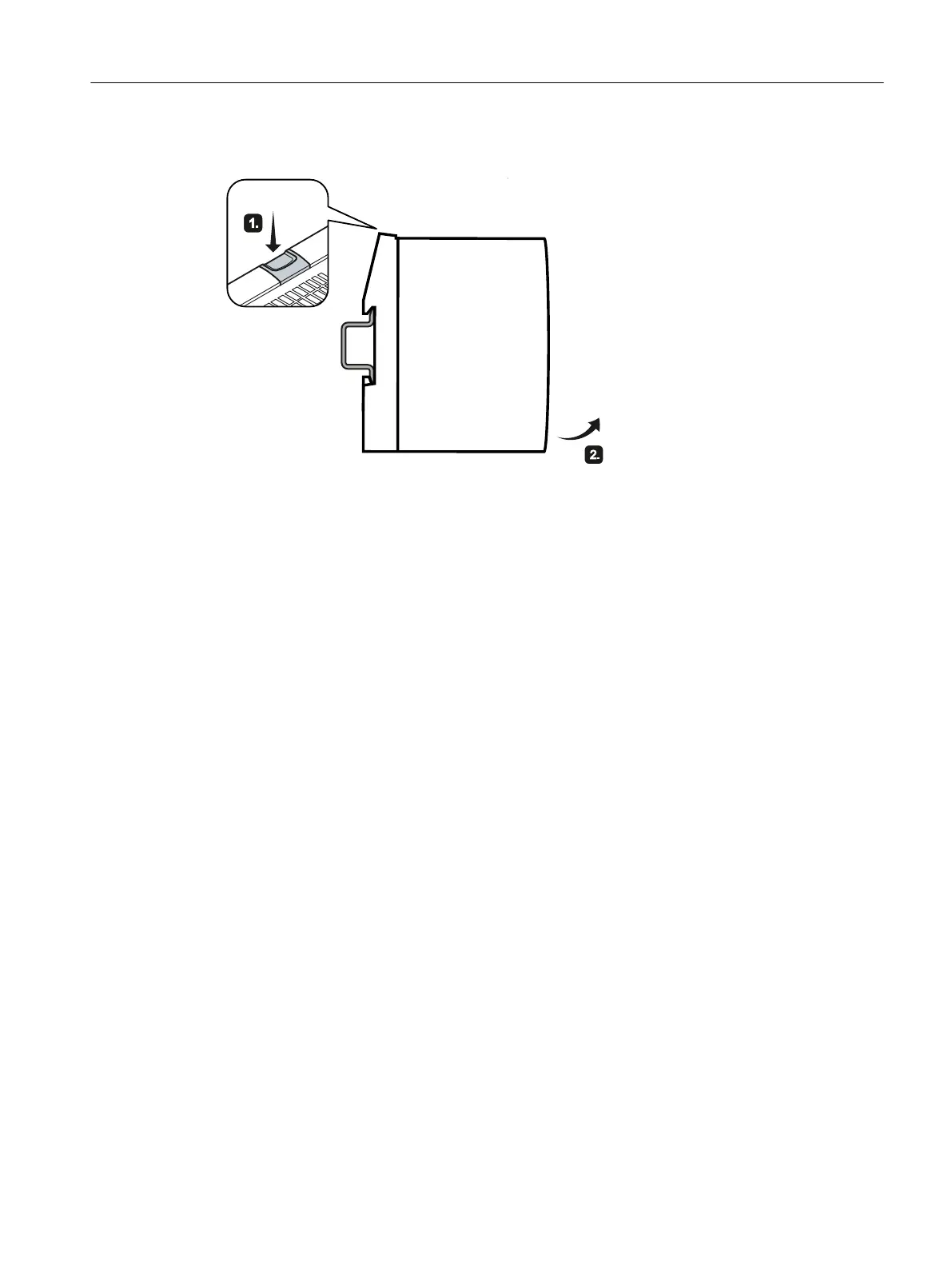

Figure 5-2 Removing from a DIN rail
To remove the device from a DIN rail, follow the steps below:
1. Disconnect all connected cables.
2. Release the DIN rail locking mechanism by pressing down on the release button ①.
3. Pull the lower part of the device away from the DIN rail ②.
Installation
5.2 Mounting on DIN rails
SCALANCE XB-200
Operating Instructions, 03/2020, C79000-G8976-C359-09 31
