6.6 Out-of-band interface
Information on the out-of-band interface
• The out-of-band interface is an RJ-45 Ethernet port on the CPU module. The out-of-band
interface is not used for routing or switching.
• Access to the device is also possible independent of the other Ethernet ports.
• The out-of-band interface allows direct IP access to the WBM of the device.
Position and assignment
66
77
88
5
4
3
2
1
0*07

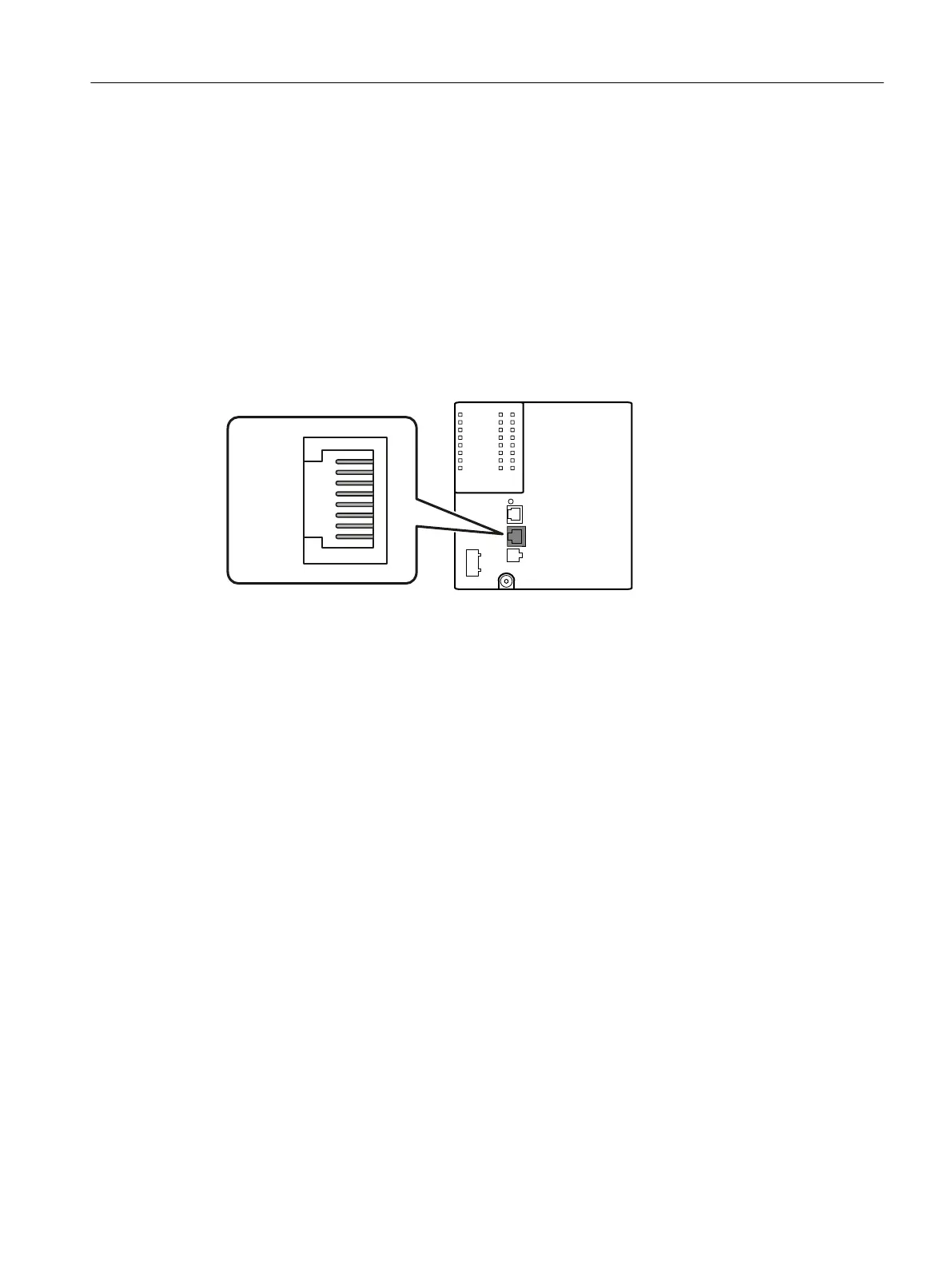

Figure 6-4 Position and pin assignment of the out-of-band interface (RJ-45 jack) on the SCALANCE
XM-400.
