5.3 OpenPCS 7 combined with an OS
5.3.1 OpenPCS 7 combined with an OS client

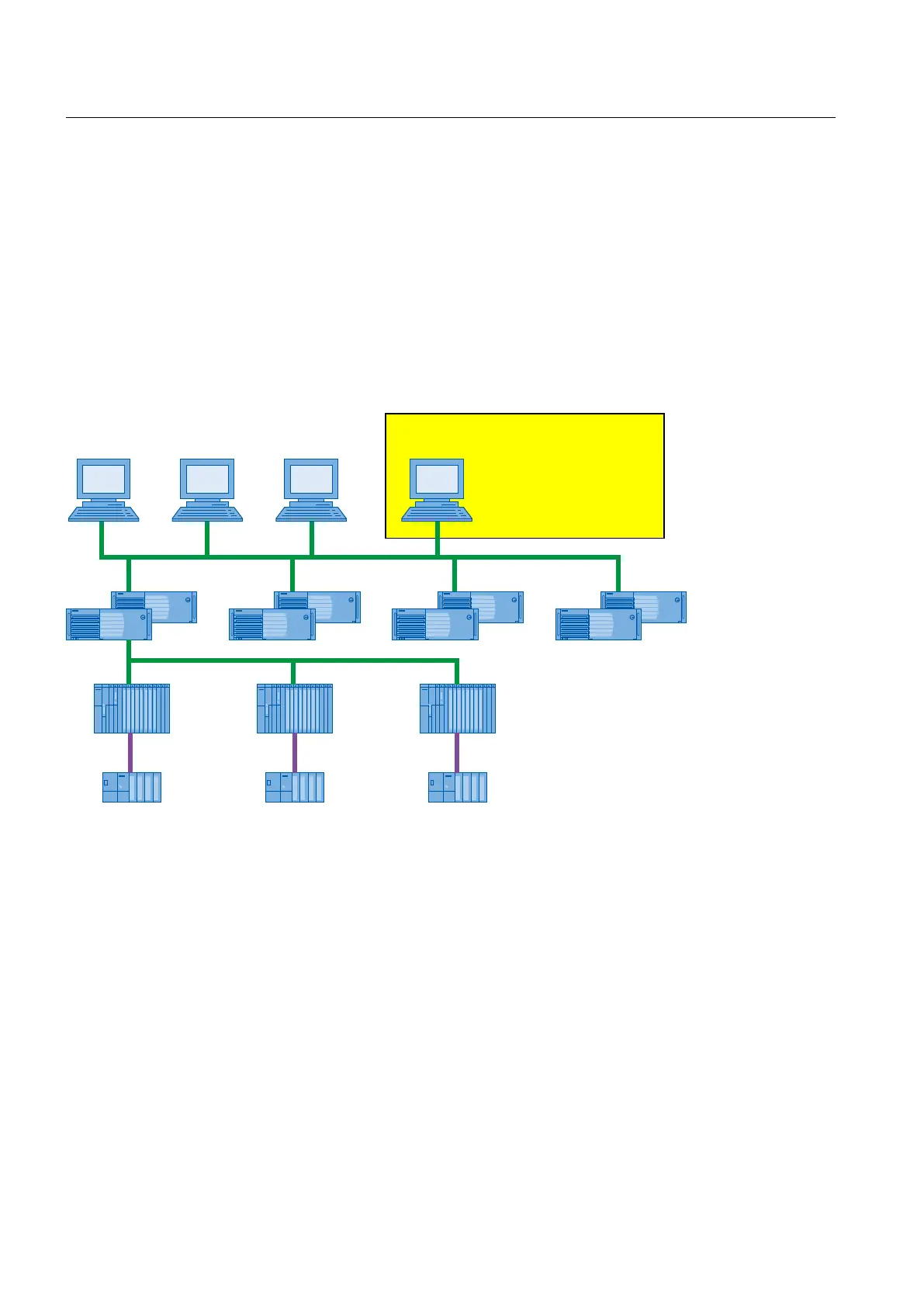

OpenPCS 7 combined with an OS client
In this configuration, an OS client is also installed on the OpenPCS 7 station. The OPC client
also runs on the OpenPCS 7 station. The OpenPCS 7 station contains the OPC DA, OPC HDA
and OPC A&E servers. This configuration is intended for small plants.
Plant bus
Terminal bus
Fieldbus
PCS 7 OS clients
PCS 7 OS server BATCH serverRoute Control server Archive server
OpenPCS 7 station
PCS 7 OS client
OPC client
S7-400S7-400S7-400
ET 200ET 200ET 200
The OPC client can also run on a separate computer. This configuration is intended for small
to medium-sized plants.
System configurations
5.3 OpenPCS 7 combined with an OS
OpenPCS 7
34 Function Manual, 05/2012, A5E02780178-02
