PC/TS AdapterQuick Reference Guide
PC/TS Adapter
A5E00078070-02
9
1
2
3
4
5
6
7
8
9
Shield
Shield Shield
Shield
9-pin subminiature D:
NC
Connector casing
NC
NC NC
Connector casing
1
2
3
4
5
6
7
8
9
Signal:
GND
DCD
RXD
TXD
DTR
DSR
RTS
CTS
RI
DCD
RXD
TXD
DTR
DSR
RTS
CTS
RI
GND
Signal:
9-pin subminiature D:

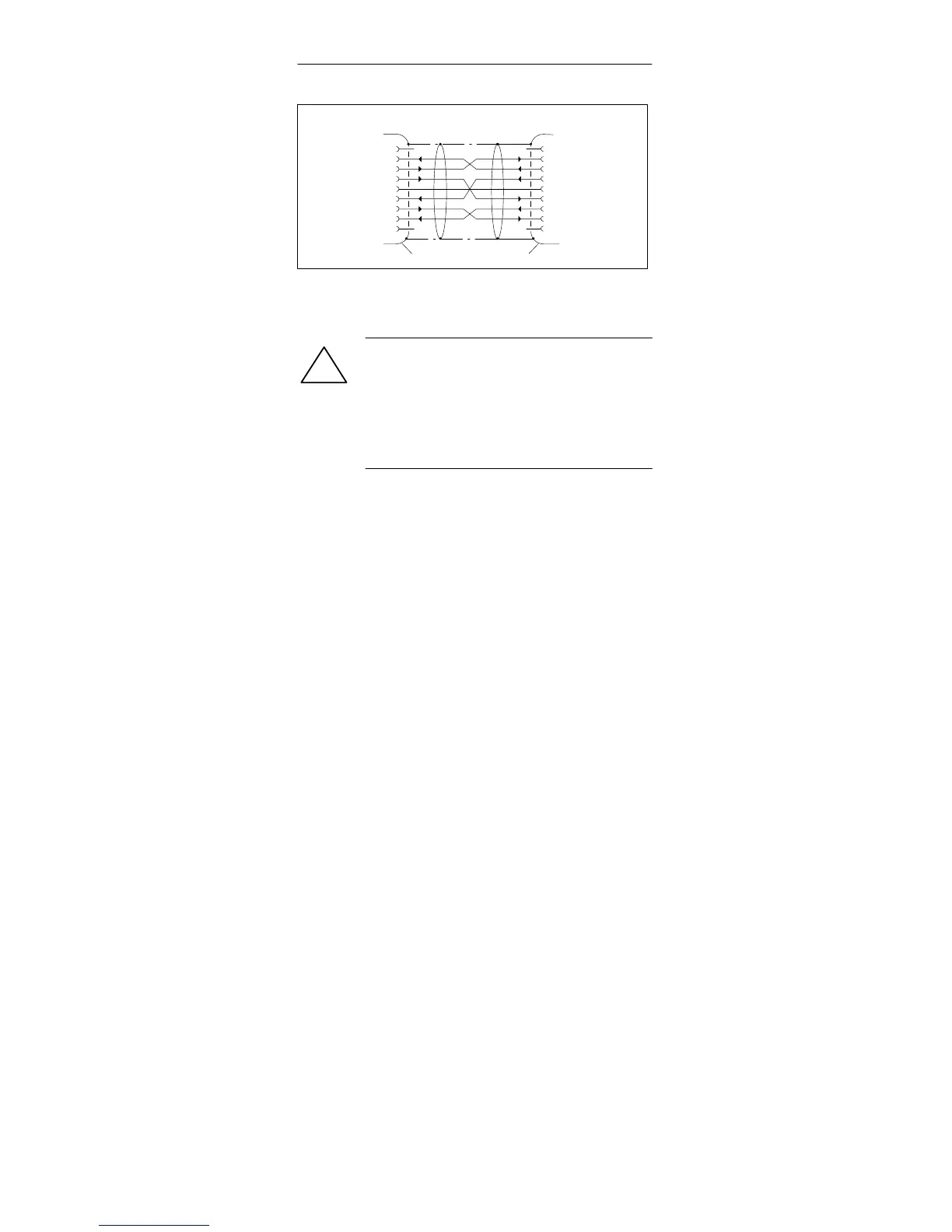

Figure 1-8 RS232 Cable 6ES7 901-1BF00-0XA0
!
Warning
The RS232 cable listed under Point 3
(Accessories) ensures that EMC requirements
are met.
This cannot be guaranteed if you use a different
cable and you do so at your own risk.
S See Figure 1-2 “TS Adapter in the System” for details of
modem connection. A modem is connected to the RS232
interface of the TS adapter using the enclosed RS232
cable. In the modem description, this cable is used for
connecting the modem to a PC. If this modem cable does
not have a 9-pin SUB-D socket connector on the TS
adapter side, the relevant adapter must be used
(Figure 1-5).
