Configuring
4.1 Configuring the address space
Power module PM-E DC24V (6ES7138-4CA01-0AA0)
16 Manual, 04/2007, A5E01119952-02
Status byte for power modules

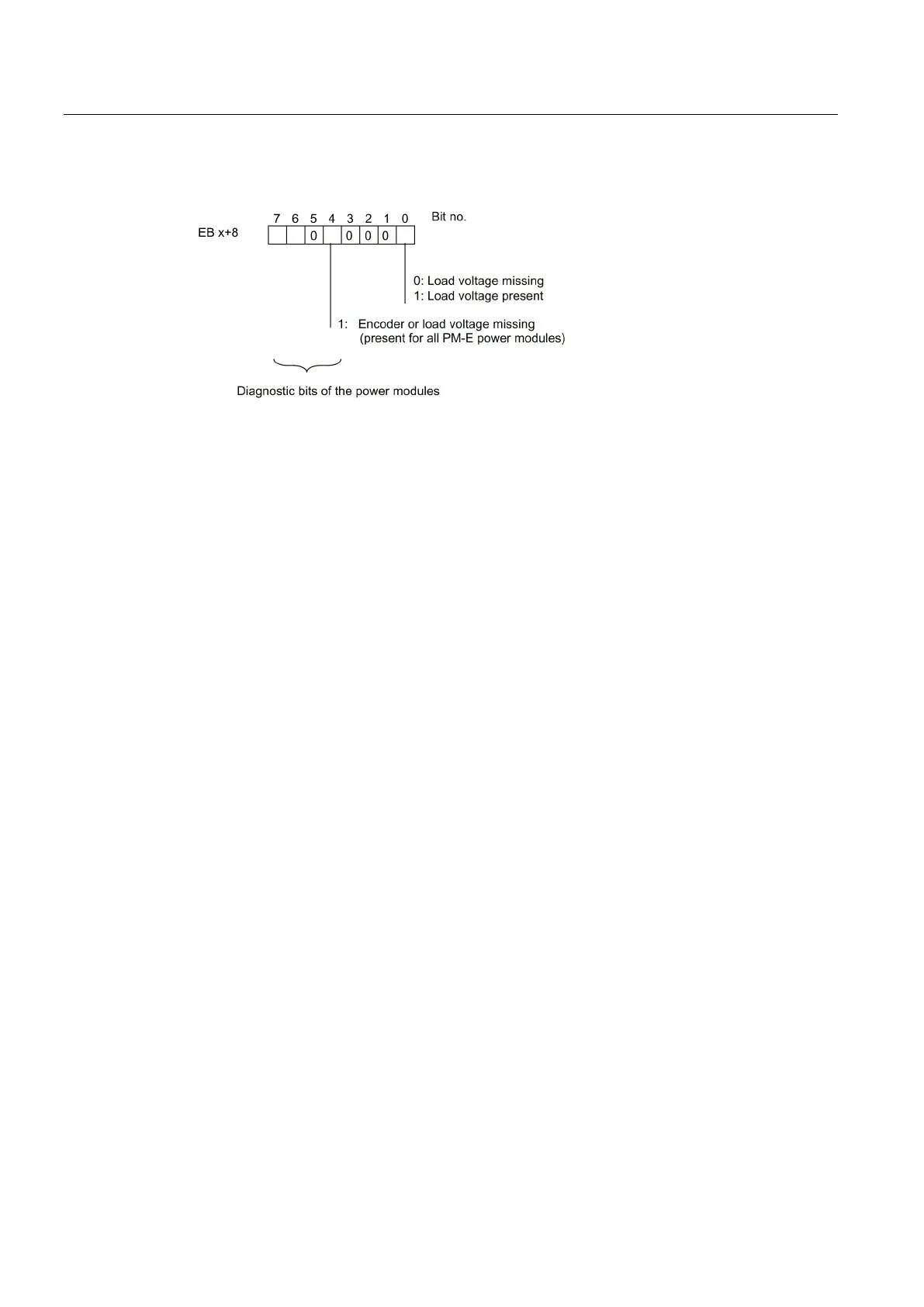

Figure 4-1 Assignment of status byte for power modules
