The demo application

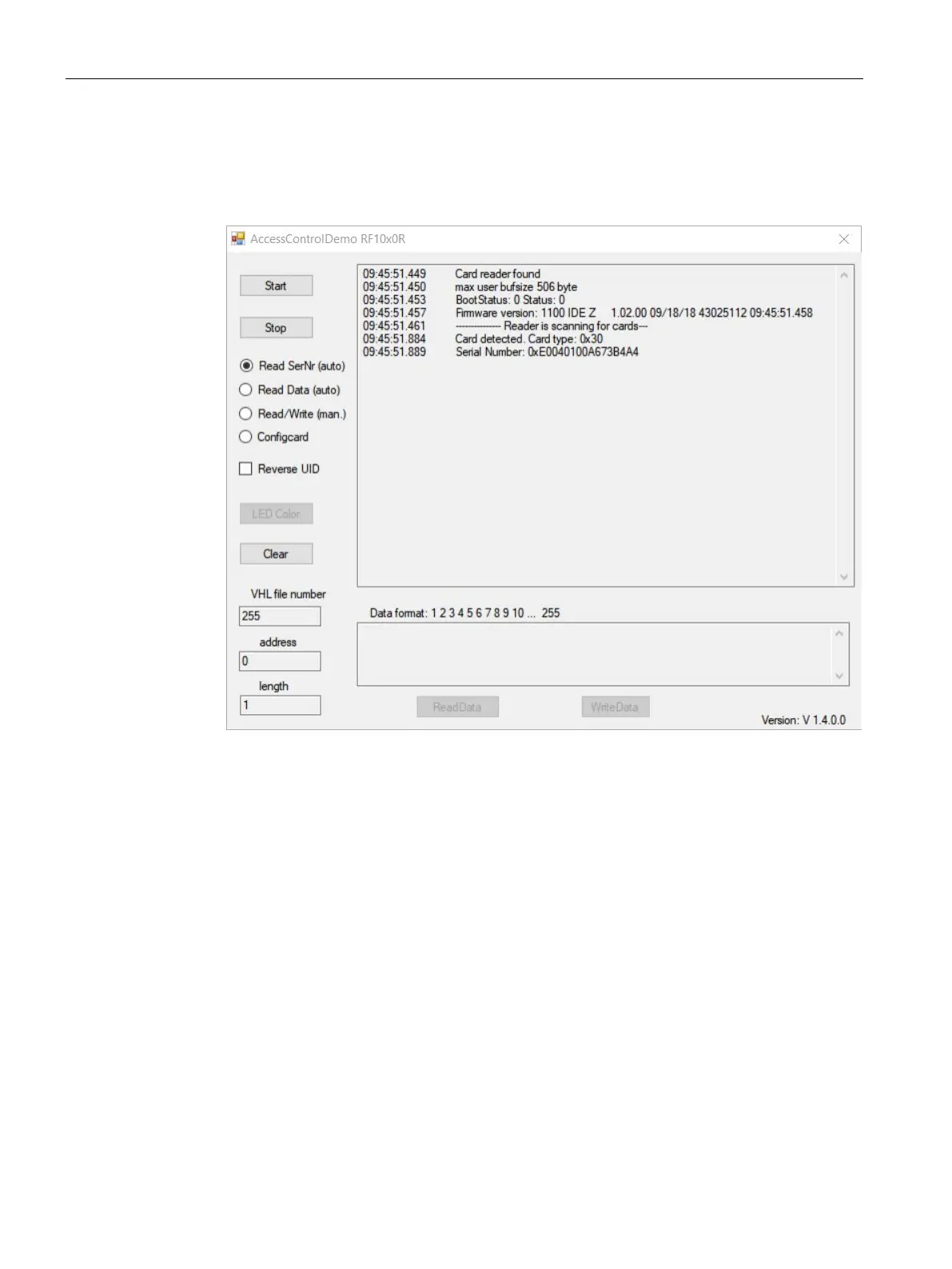

7.1 User interface of the demo application
SIMATIC RF1000
52 Operating Instructions, 11/2019, C79000-G8976-C432-06
Working with the demo application
Follow the steps below to work with the demo application:
1. Start the demo application by double-clicking on the file "AccessControlDemo.exe".
Buttons
Start
Establishes the USB connection to the reader.
Stopp
Terminates the USB connection to the reader.
LED Color
Switches the LED color and activates the acoustic signal.
Clear
Emptying the top display area.
Read Data
Manual reading of the transponder data.
Write Data
Manual writing of the transponder data.
Option buttons/Check boxes
Read SerNr
(auto)
Automatic reading of the serial number and the card type.
Read Data
(auto)
Automatic reading of the transponder data depending on the specific card
type configuration.
Read/Write
(man.)
Manual reading/writing of the transponder data depending on the selected
parameters.
Configcard Transferring the configuration from the configuration card in the antenna field
to the reader.
Reverse UID
Reversing the byte sequence when the serial number is output.
