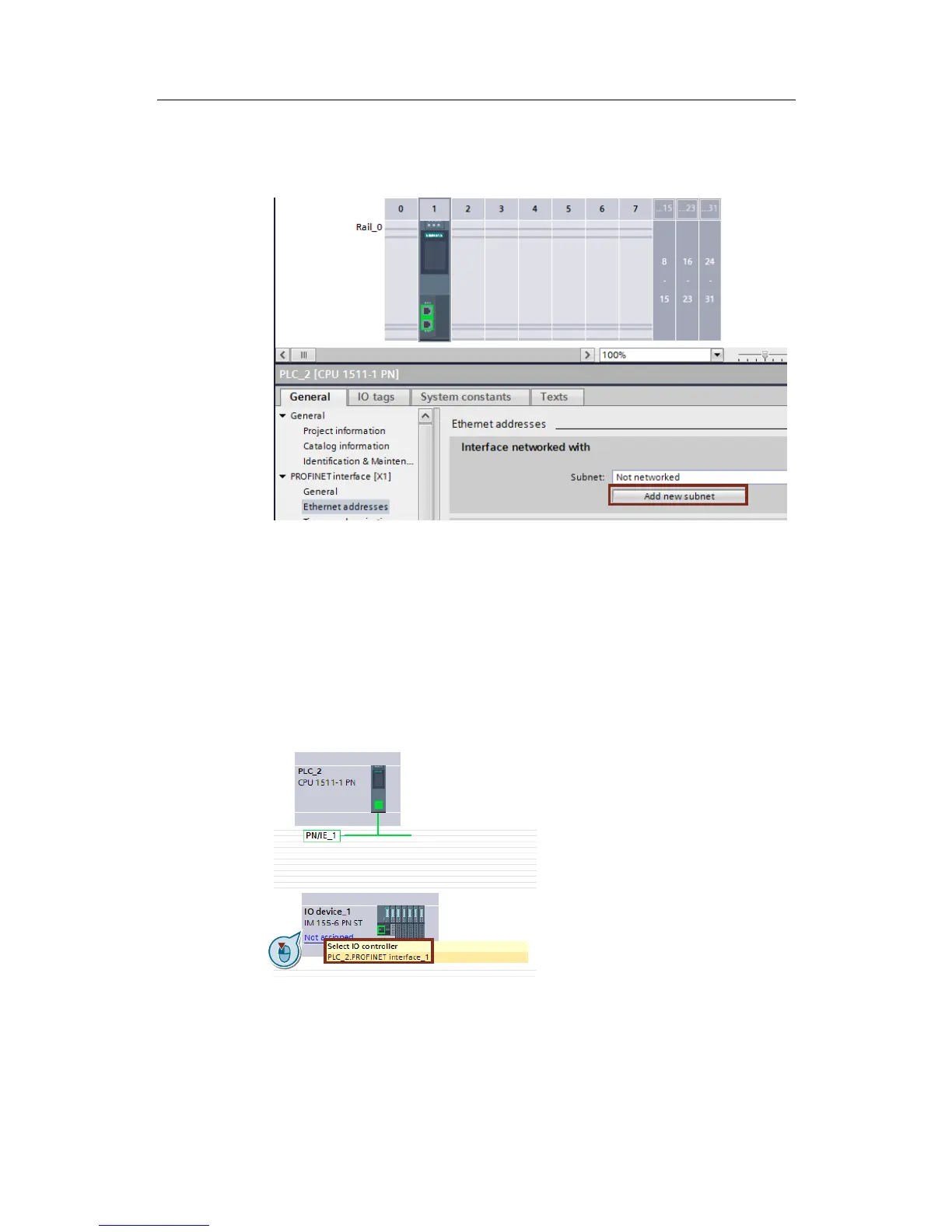

4. Select the parameter group “Ethernet addresses” and, under “Interface
networked with”, click “Add new subnet”.
Figure 3-4
Result
The interface is now connected to a new subnet of the suitable subnet type. When
this is done, the address parameters of the interface are set consistently
automatically.
Then, you add the interface module to the newly created network.
Proceed as follows:
1. Open “Devices & Networks” in the overview.
2. Click on “not assigned” and select the IO controller (“PLC_2”) to which this IO
device is assigned to.
Figure 3-5
Result
The interface and the selected subnet are now connected. When this is done, the
address parameters of the interface are set consistently automatically.
