Siemens SIMOCODE pro V PB User Manual

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
197

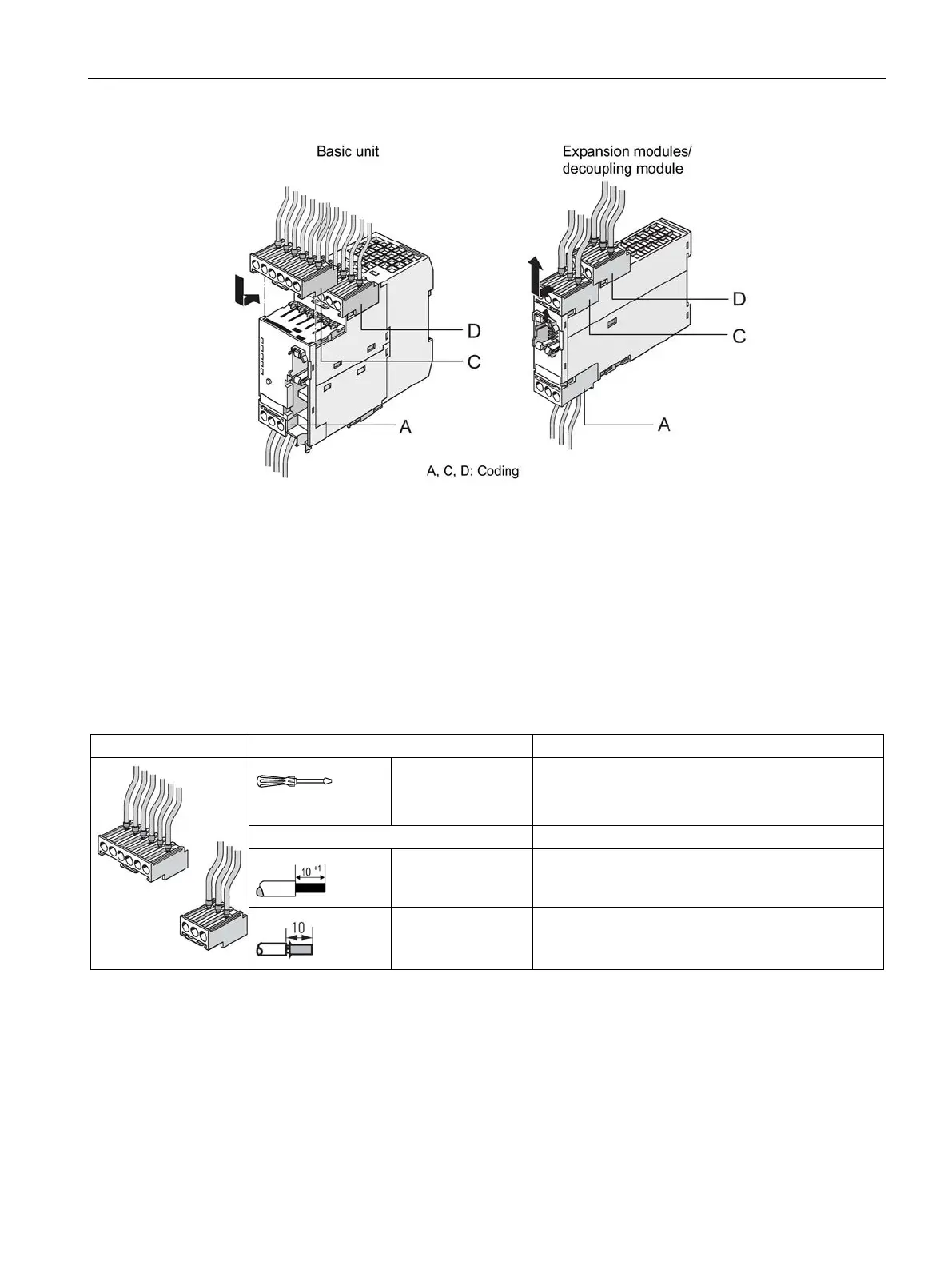

Figure 12-13 Removable terminals for SIMOCODE pro V PN / pro V EIP basic units, expansion
modules and decoupling module
Cables
The conductor cross sections are the same for all devices. The following table shows
conductor cross sections, stripped lengths, and tightening torques of the cables for the
removable terminals:
Table 12- 3 Conductor cross sections, stripped lengths, and tightening torques of the cables for the basic units
SIMOCODE pro C and pro V
Removable terminals
Screwdriver
Tightening torque
PZ2 / Ø 5 to 6 mm TORQUE:
7 to 10.3 lb.in
0.8 to 1.2 Nm
Stripped lengths
Conductor cross section
Solid 2x 0.5 to 2.5 mm
2
/ 1x 0.5 to 4 mm
2
2x AWG 20 to 14 / 1x AWG 20 to 12
Finely stranded
with / without end
sleeve
2x 0.5 to 1.5 mm
2
/ 1x 0.5 to 2.5 mm
2
2x AWG 20 to 16 / 1x AWG 20 to 14
