Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
210 System Manual, 05/2019, A5E40507475002A/RS-AD/004

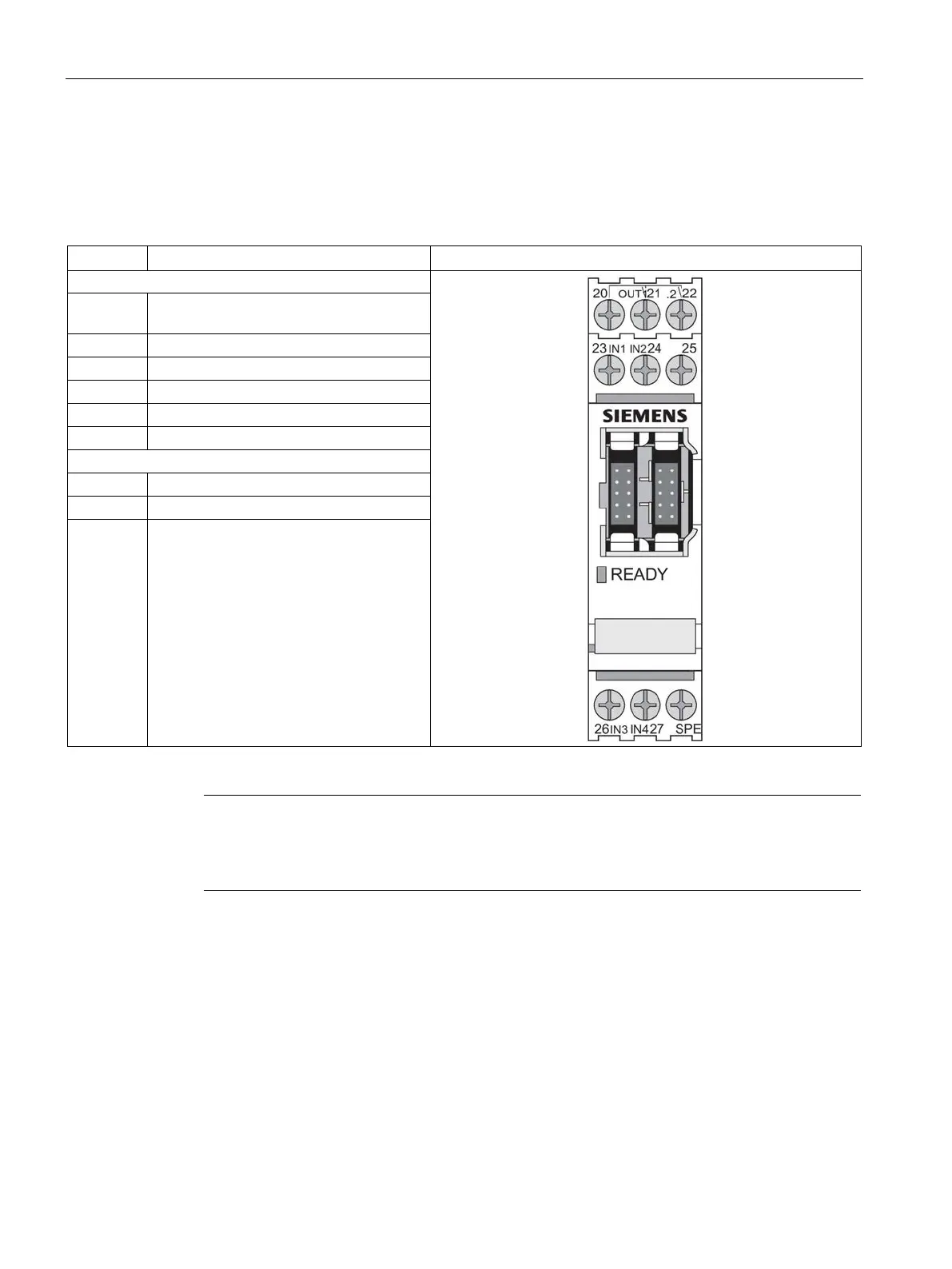

Terminal assignment of the digital module
The following table shows the assignment of the removable terminals:
Table 12- 12 Pin assignment of the removable terminals of the digital module
Terminal
Assignment
Upper terminals
20 Common potential for relay outputs 1
and 2
21
Relay output OUT1
22 Relay output OUT2
23
Digital input IN1
24
Digital input IN2
25
N / M for IN1 to IN4
Lower terminals
26
Digital input IN3
27
Digital input IN4
SPE
1)
System shielding
1)
Note
Connect SIMOCODE
pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possibl
e to the functional ground of the control cabinet, e.g. to the
grounded mounting plate of the control cabinet.
