Siemens SIMOCODE pro V PB User Manual

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
227

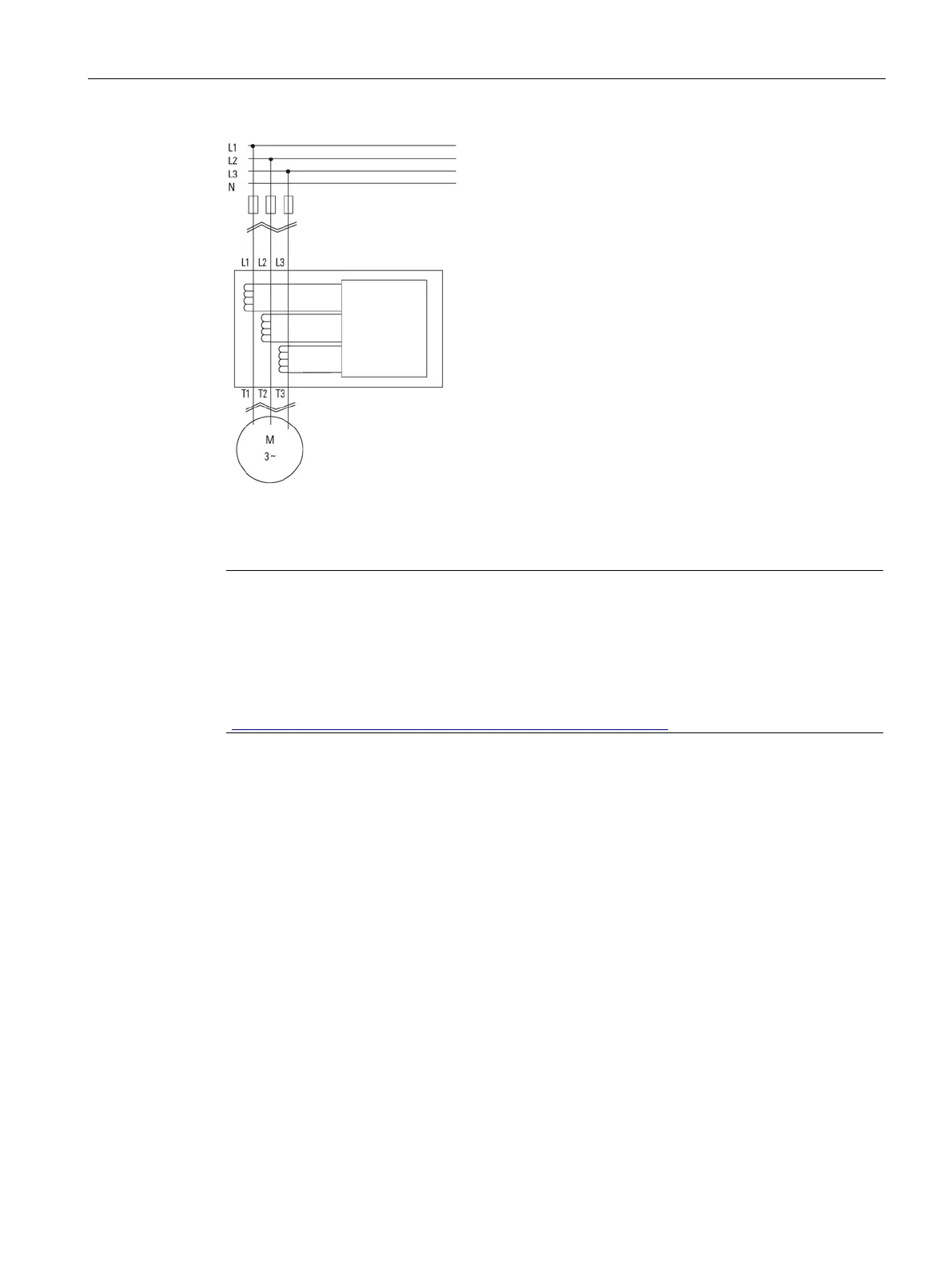

Figure 12-28 Main circuit connection
Note
When connecting or routing the cables of the individual phases of the m
ain circuit, ensure
correct assign
ment of the phases on the current measuring module and correct routing
direction!
Please note the information in the Operating Instructions. You will also find the Operating
Instructions for SIMOCODE
pro at Operating instructions
(
https://support.industry.siemens.com/cs/ww/en/ps/16027/man)
