Connecting
5.1 Wiring
SIMOTION C
102 Operating Instructions, 02/2012
Wiring with the connecting comb
Proceed as follows to wire the PS 307 power supply module and the SIMOTION C.
WARNING
You could come into contact with live wires if the power supply module and any additional
load power supplies are switched on.
Ensure that the system is de-energized when you wire the system!
1. Open the front doors of the PS 307 and the SIMOTION C.
2. Release the clip for the cable strain relief on the PS 307.
3. Strip the power supply cable (230 V/120 V) (stripped length of 12 mm) and connect it to
the PS 307.
4. Tighten the clip for the cable strain relief.
5. Insert the connecting comb and tighten it.
6. Close the front doors
&RQQHFWLQJFRPE
99
6WUDLQUHOLHI
WR1P
36
6,027,21&

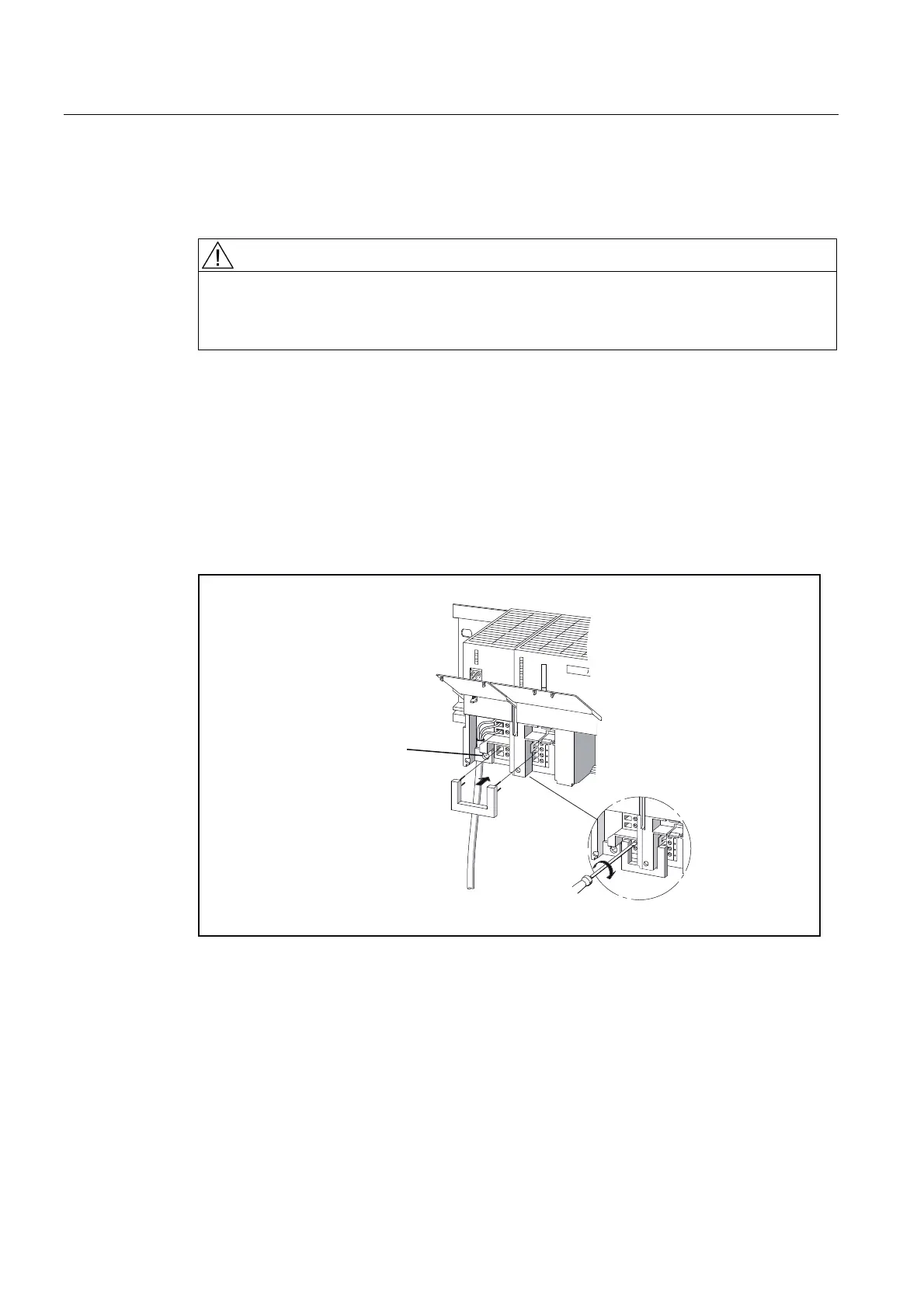

Figure 5-7 Connect power supply module and SIMOTION C with connecting comb
