SIMOTION C
Operating Instructions, 02/2012
133
Addressing
6
6.1 Slot-oriented address allocation for modules (default addresses for
centralized I/O)
Introduction
In the case of addressing based on the slot (default addressing), a module start address is
assigned to every slot number. Depending on the type of module, these are different
addresses for digital, analog, FM and CP modules (see table below). In this section we will
show you which module start address is assigned to which slot number. You need this
information to determine the module start addresses of the modules used.
Maximum configuration

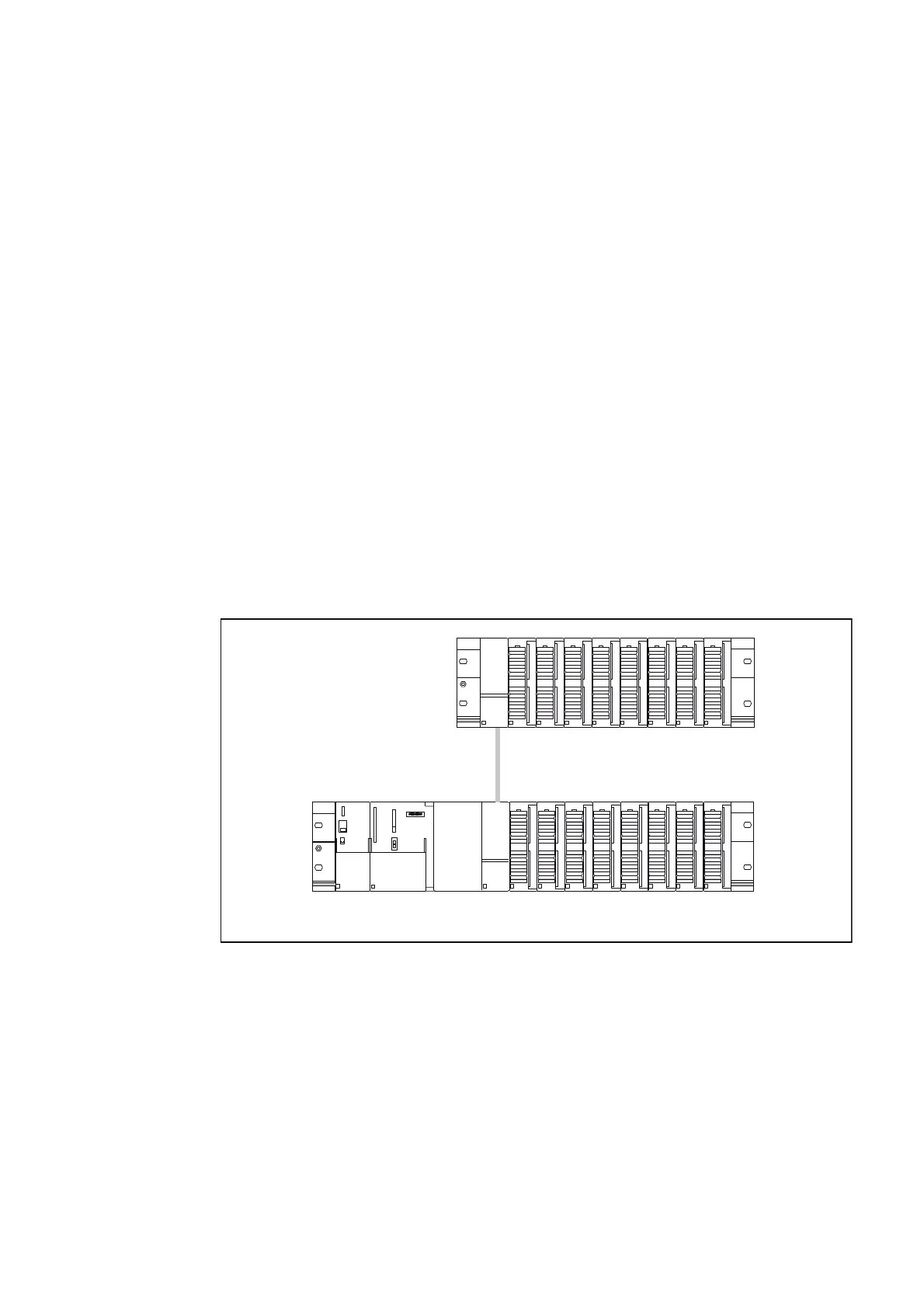

The following figure shows a configuration of a rack and the possible slots. A 2-tier layout
with IM 365 is possible with SIMOTION C.
6ORWQXPEHU
6ORWQXPEHU
5DFN
5DFN
Figure 6-1 Slots for modules on rack (centralized I/O)
