Connecting
5.1 Wiring
SIMOTION C
Operating Instructions, 02/2012
121
Fitting the shield connecting element
Fit the shield connecting element as follows:
1. Push the two threaded studs for the retaining bracket into the guide on the underside of
the rail. Position the retaining bracket under the modules to be wired.
2. Screw the retaining bracket tight on the mounting rail.
3. The bottom of the shield connection terminal consists of a web interrupted by a slot.
Place this part of the shielding terminal on edge a of the retaining bracket (see the
following figure). Press the shielding terminals down and pivot them into the required
position.
You can fit a maximum of four shield terminals on each of the two rows.
)L[LQJEUDFNHW
6KLHOGWHUPLQDO
(GJHD

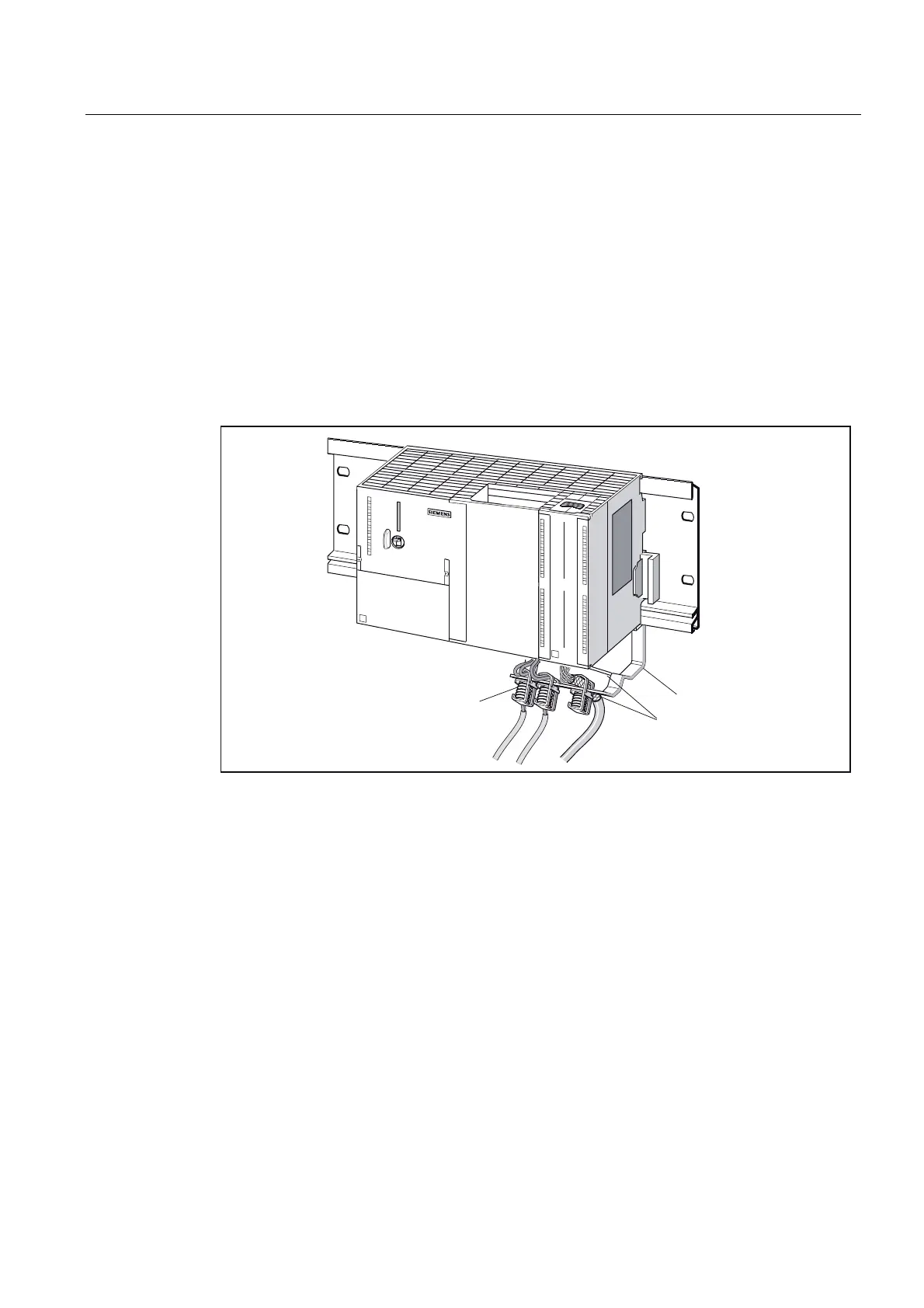

Figure 5-18 Fitting the shield connecting element
Laying the cables
Only one or two shielded cables can be attached per shielding terminal (see table
"Assignment of cable cross-sections and shielding terminals"). Attach the cable to the
stripped cable shield. The stripped section of cable shield must have a minimum length of 20
mm. If you require more than four shielding terminals, start the wiring on the back row of the
shield connecting element.
Tip: Make sure you allow a sufficient length of cable between the shielding terminal and the
front connector. This will, for example, ensure that if a repair is required, you can unplug the
front connector without also having to remove the shield terminal.
