Configuring and installing
4.3 Installing
SIMOTION C
Operating Instructions, 02/2012
89
Inserting slot numbers

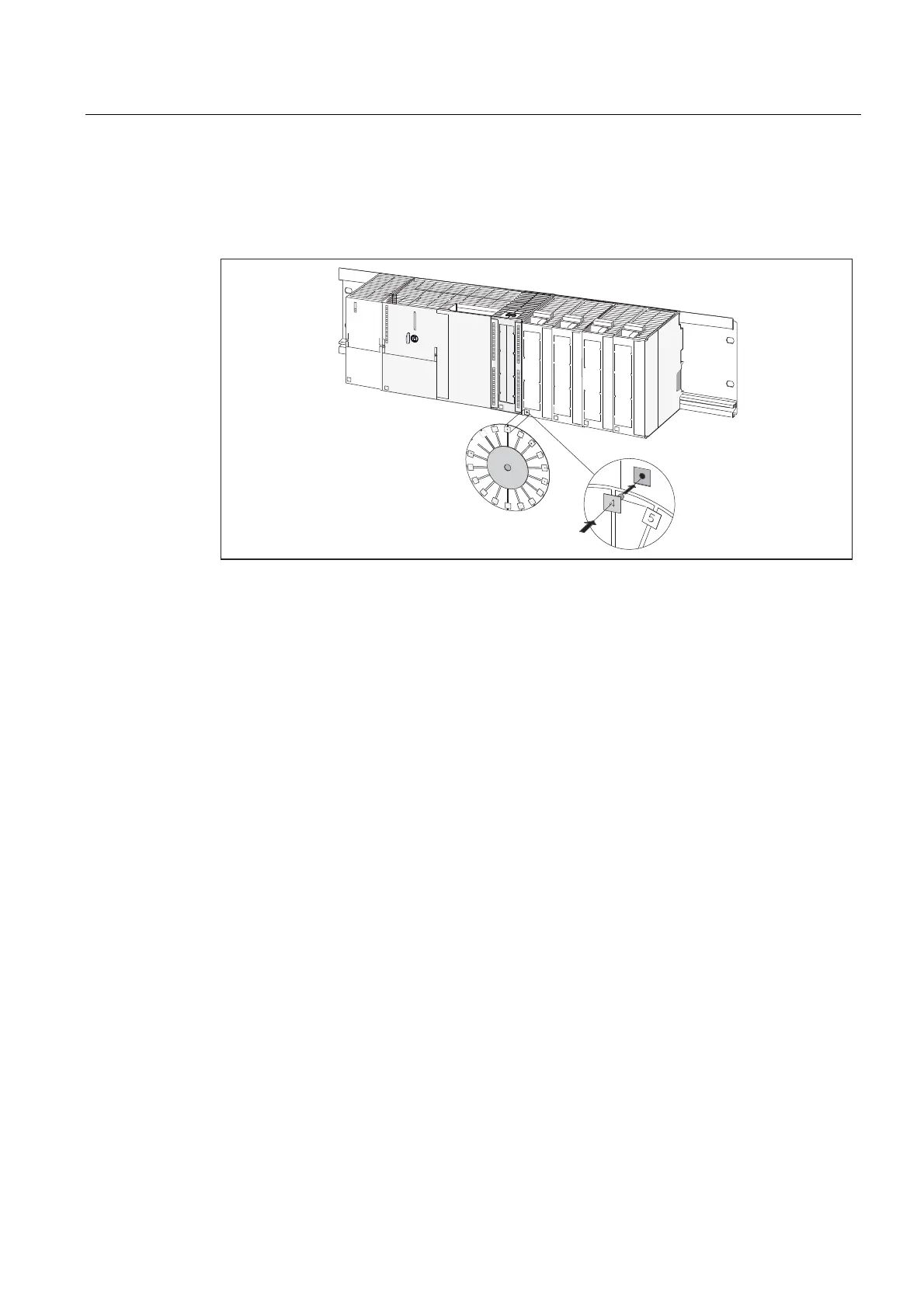

This figure shows the proper way of inserting the slot numbers. The slot number labels are
included with the SIMOTION C.


Figure 4-8 Inserting slot numbers on the modules
