Commissioning (software)
4.16 Deleting data
SIMOTION D410
152 Commissioning Manual, 02/2012
Memory reset using the mode selector switch
The mode selector switch function is implemented in SIMOTION D410 by means of a DIL
switch (DIL = Dual-In-Line). Use this DIL switch (switch S1 - S3) to set the binary code for
the mode of operation.
Information pertaining to to the switch positions and corresponding modes of operation is
available in the
SIMOTION D410
Manual.
You can only reset memory using the mode selector switch if SIMOTION D410 is operating
in offline mode.
How to reset the memory:
1. Select the MRES operating mode by
– Setting mode selector switches S1 to S3 to OFF AND
– Using the service selector switch to ensure that no service functions are selected (S4
to S7 = OFF).
The RUN/STOP LED will begin flashing soon after this (slowly flashing yellow).
6ZLWFKVHWWLQJ 21
6ZLWFKVHWWLQJ 2))
0RGHVHOHFWRUVZLWFK
6WR6
6HUYLFHVHOHFWRUVZLWFK
6WR6
21

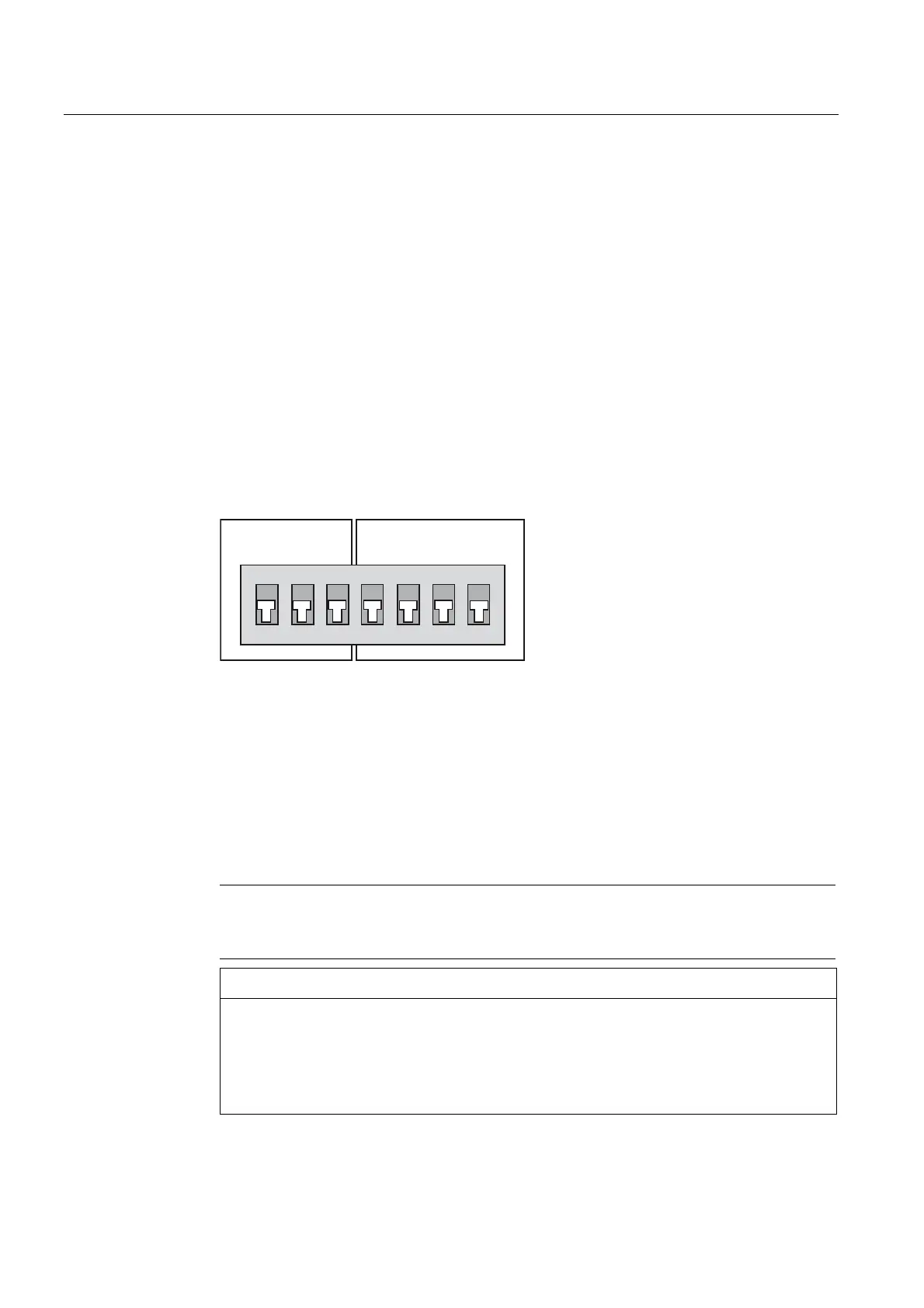

Figure 4-41 MRES switch position
2. Set switch 1 to ON (STOP mode) once the RUN/STOP LED permanently lights up yellow.
3. Within 3 seconds, set the switch back to MRES operating mode by setting switch S1 to
OFF again. The memory reset is performed (the RUN/STOP LED flashes yellow quickly).
4. Wait until the D410 has completed the memory reset (RUN/STOP LED permanently lights
up yellow).
5. Now set the mode selector switch back to the required operating mode; for example, set
switches S1, S2, and S3 to ON for RUN mode.
Note
Memory reset is cancelled if you do not return the DIL switch to MRES as specified within
three seconds. Repeat the procedure in this case.
NOTICE
Please note that, during startup, the MRES setting will cause the factory settings to be
restored. For details, refer to the section titled Restoring the default settings of
SIMOTION D410 (Pa
ge 154).
Make
sure you do not accidentally switch the power supply OFF/ON while MRES is set,
as this will re-establish the factory settings instead of performing a memory reset.
