Diagnostics data
6
6.1 Diagnostics by means of LED displays
Overview
The status LEDs display the operating modes or fault states of SIMOTION D410.
Arrangement of LED displays
6)%)
5'<
5816723
287!9
/('GLVSOD\V
2SHUDWLQJPRGHVRI6,027,21'LQFO6,1$0,&6,QWHJUDWHG
8VHUSURJUDPLVUXQQLQJ
(OHFWURQLFSRZHUVXSSO\IRUPHDVXULQJV\VWHP
*URXSHUURUEXVIDXOW

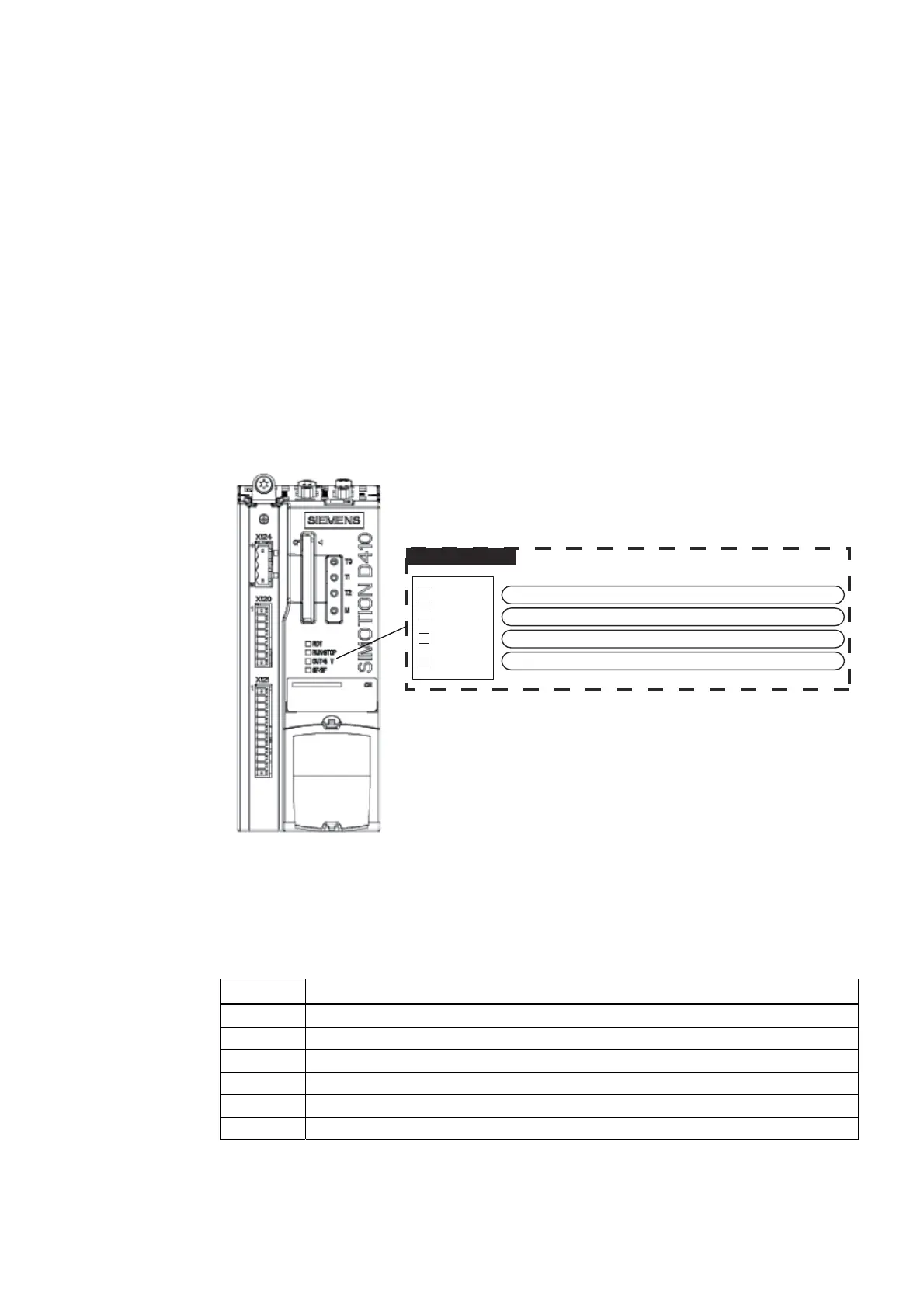

Figure 6-1 LED displays on the D410 device
Legend of the LED states
Table 6- 1 Legend of the LED states
Symbol Meaning
1 LED on
0 LED off
0,5/1 LED flashes at 0.5 Hz:
2/1 LED flashes at 2 Hz:
Λ LED flickers
x The LED display is irrelevant to the states shown in the table
