Commissioning (software)
4.2 Configuring the system in offline mode
SIMOTION D410
Commissioning Manual, 02/2012
75
1. Enter a drive name in the "Drive Properties" dialog box and select the drive type (servo or
vector).

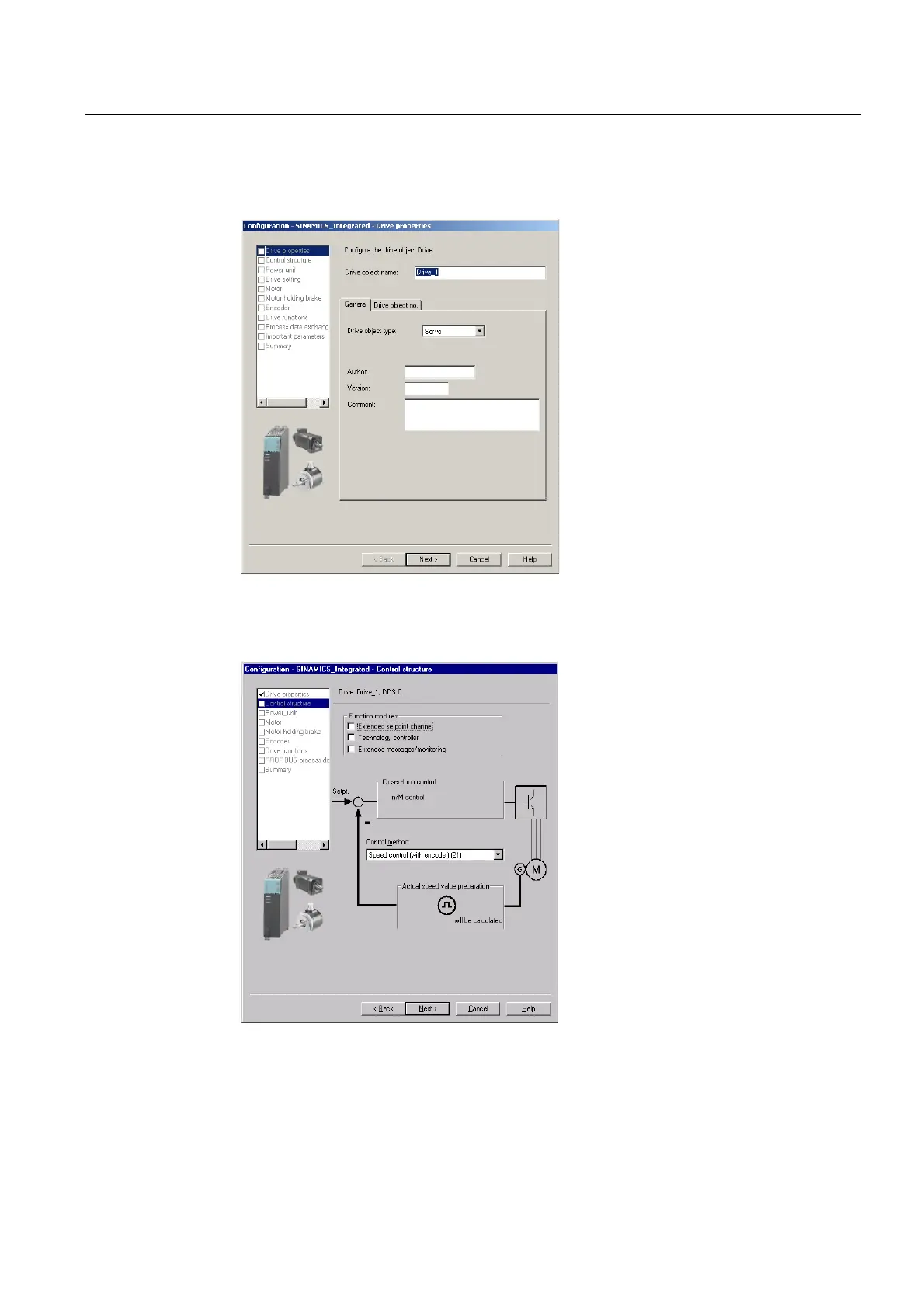

Figure 4-1 Drive properties
2. You can select the function modules and the control mode in the "Open-loop Control
Structure" dialog box.
Figure 4-2 Control-loop structure
