Commissioning (software)
4.3 Performing an online configuration
SIMOTION D410
Commissioning Manual, 02/2012
87
Procedure
1. Open the "Automatic Configuration" dialog box by selecting the "SINAMICS_Integrated >
Automatic configuration" command in the Project Navigator.

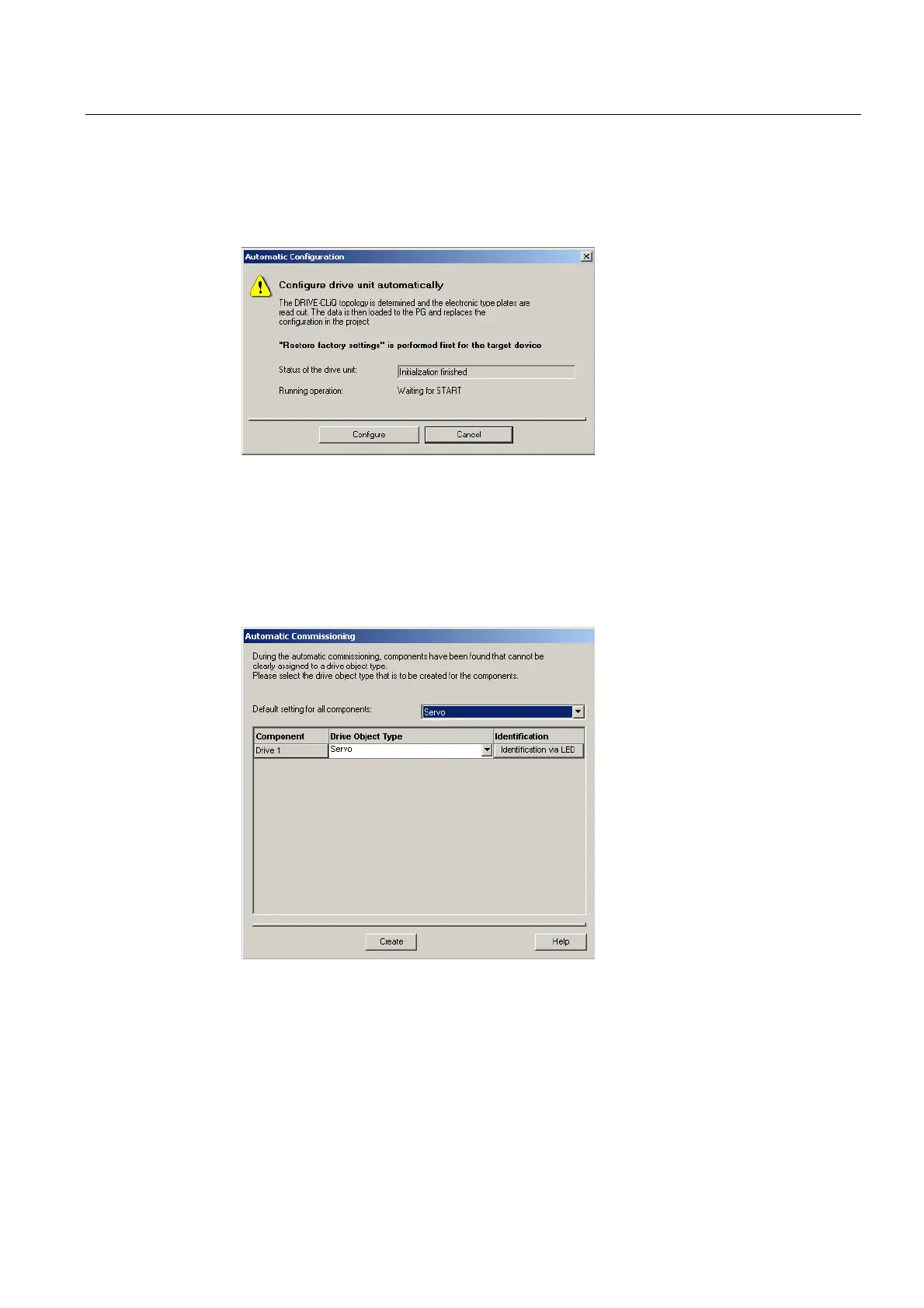

Figure 4-11 Starting automatic configuration
2. Click the "Configure" button.
3. If the drive unit is not in the "Initial commissioning" state, the factory settings are restored
after acknowledging a prompt.
4. The drive object types can now be selected via a further dialog box.
Figure 4-12 Selecting the drive object type
5. Select whether a servo- or vector-type drive object is to be used.
