Parameter assignment / addressing
5.2 Creating a project and configuring the communication
SIMOTION D4x5-2
118 Commissioning and Hardware Installation Manual, 02/2012
Proceed as follows to configure the Ethernet interface:
Procedure
1. In the "Interface Selection - D4x5" dialog box, select the entry "Ethernet PNxIE (X127)".

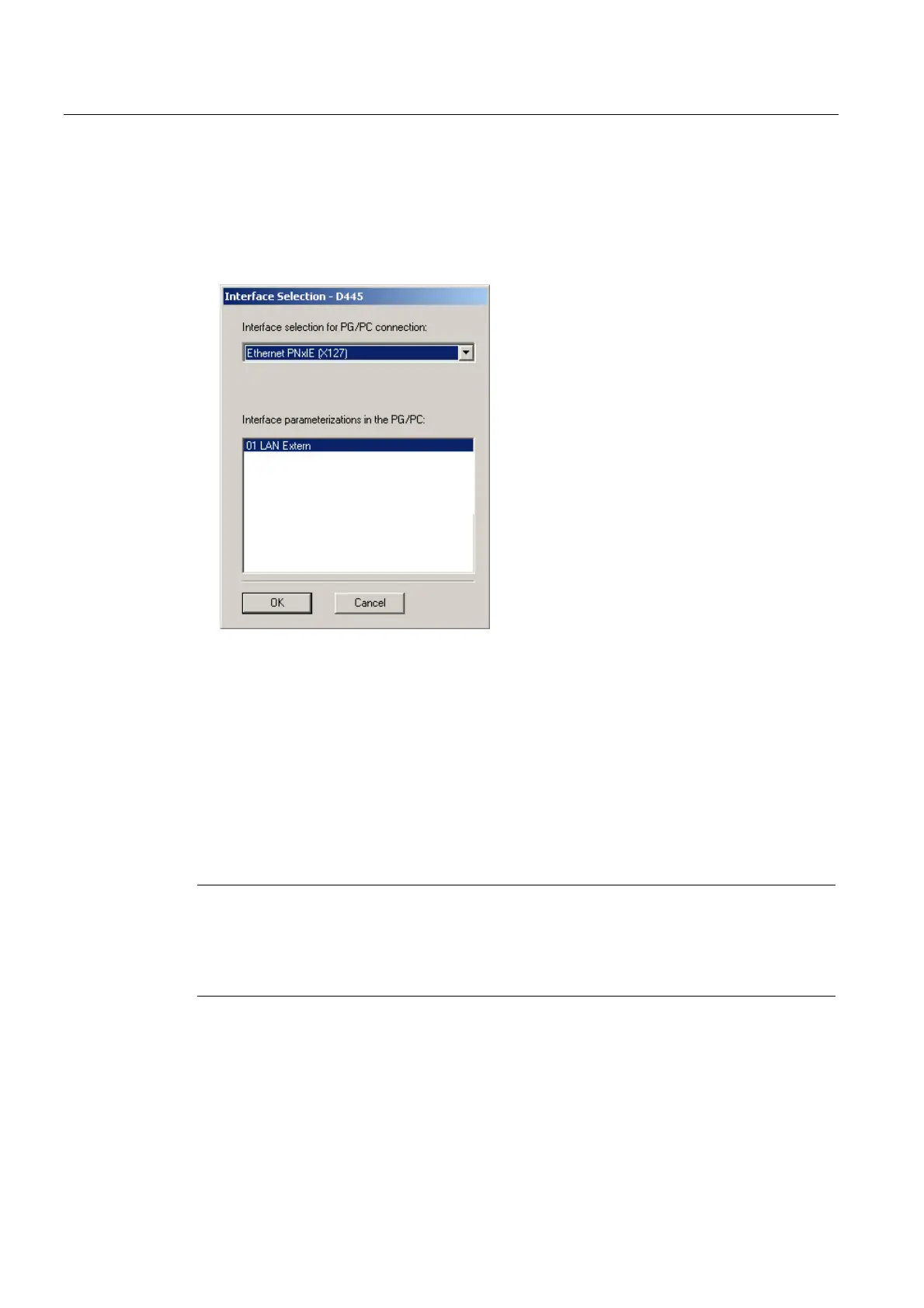

Figure 5-3 Configuring the Ethernet interface
2. Select the interface parameter assignment that you would like to use to go online, and
confirm with "OK".
The dialog box is closed, the SIMOTION D4x5-2 is created in the project navigator and HW
Config is started automatically (if parameterized).
An Ethernet subnet with factory settings is created automatically. (Factory settings, see
Section Properties of the Ethernet interfaces (Page 132).)
The PG/PC is now conn
ected to the SIMOTION D4x5-2 via Ethernet. You can configure and
parameterize your system.
Note
If you want to change the default settings for IP addresses and the transmission rate, you
must configure the Ethernet interfaces in HW Config and NetPro. Please make sure that the
S7 online access has been activated (PG/PC connection must be yellow and bold in
NetPro).
