Commissioning (software)

6.2 Performing the configuration for the D4x5-2 offline

SIMOTION D4x5-2

164 Commissioning and Hardware Installation Manual, 02/2012

3. In the "Infeed Configuration" dialog box, enter a name for the drive object and select a

type for your infeed (e.g. Active Infeed).

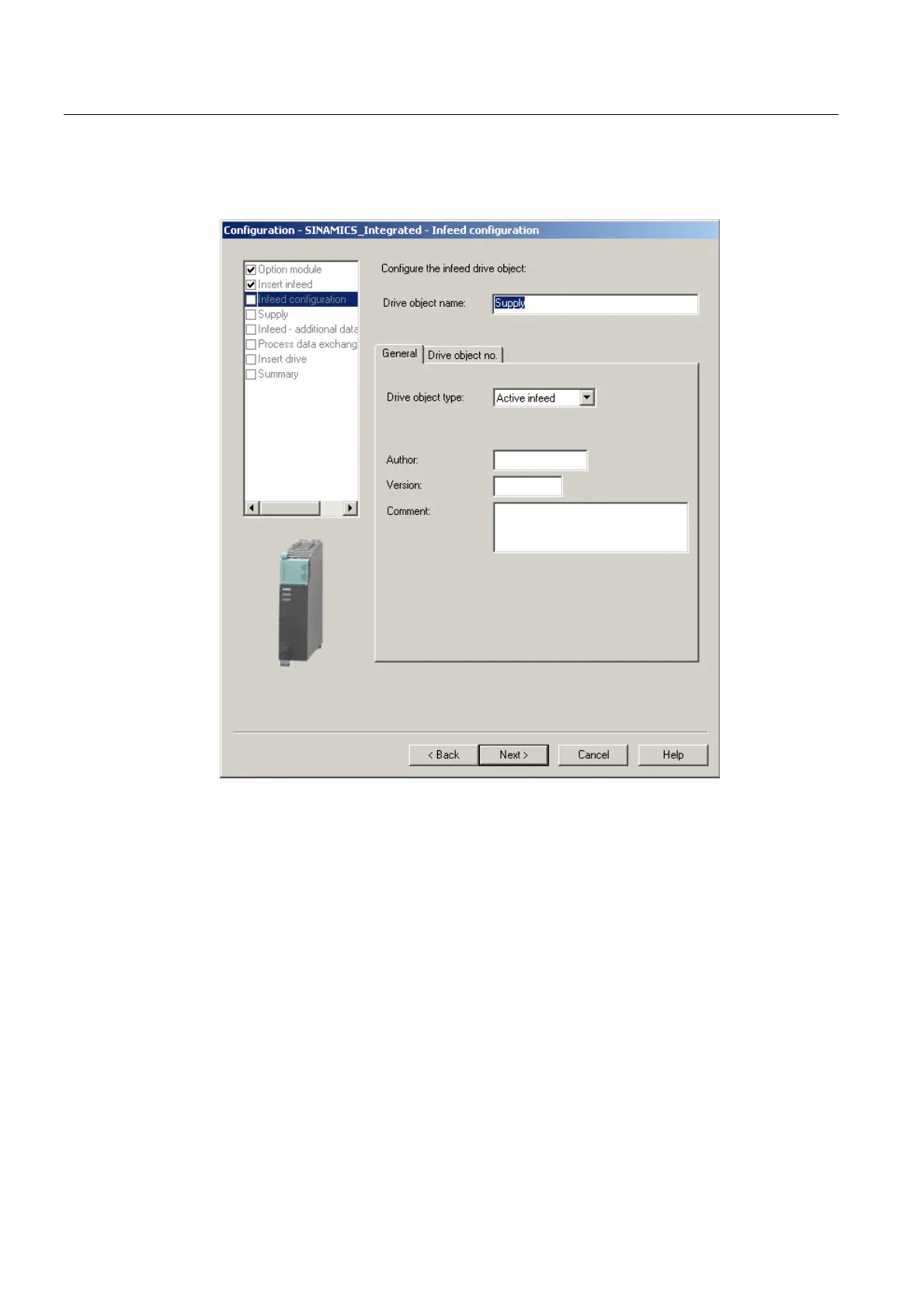

Figure 6-3 Selecting the infeed type
