Commissioning (software)

6.2 Performing the configuration for the D4x5-2 offline

SIMOTION D4x5-2

Commissioning and Hardware Installation Manual, 02/2012

165

4. Using the order number, select an infeed from the list. You can filter the information to

limit the number of infeeds displayed, by using "Type", for example.

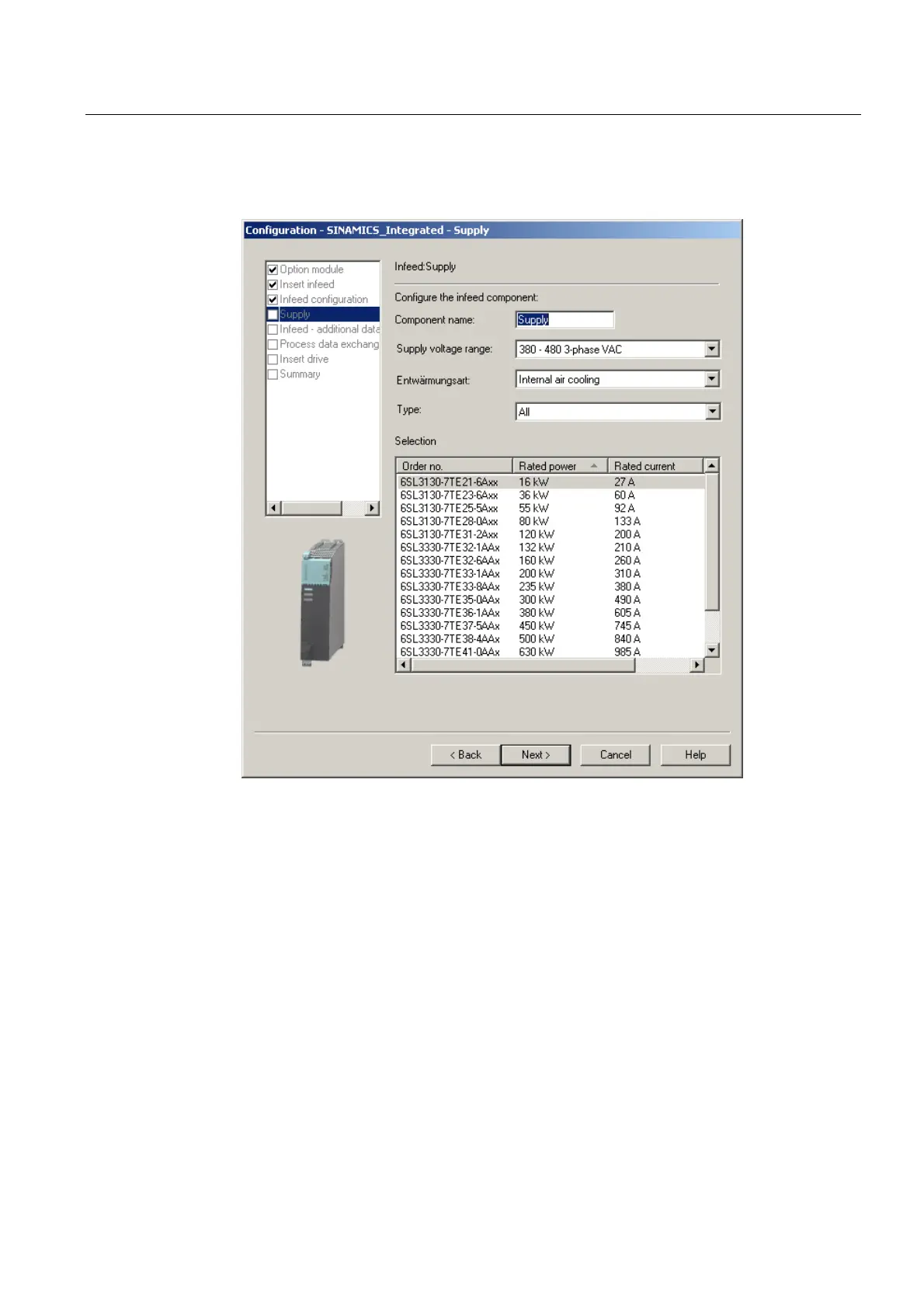

Figure 6-4 Selecting an infeed
