Commissioning (software)

6.2 Performing the configuration for the D4x5-2 offline

SIMOTION D4x5-2

172 Commissioning and Hardware Installation Manual, 02/2012

11. If you have selected an infeed without a DRIVE-CLiQ connection in step 2, a message

prompting you to wire the operation signal will appear. The next dialog allows you to

select the source of the infeed's operation signal.

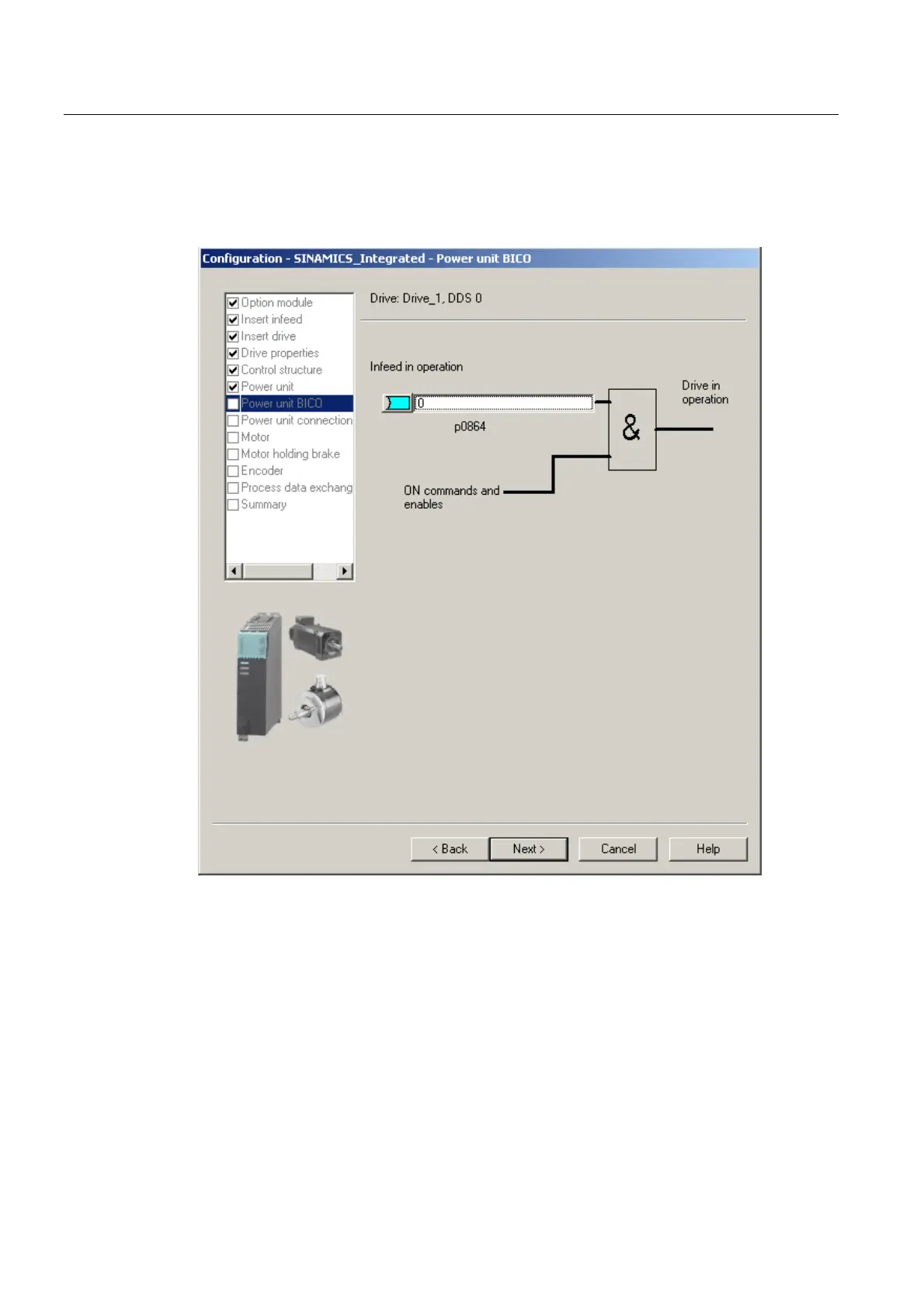

Figure 6-11 Selecting the infeed operation signal
